Journal of Chinese Integrative Medicine ›› 2012, Vol. 10 ›› Issue (1): 59-66.doi: 10.3736/jcim20120110

• Original Clinical Research • Previous Articles     Next Articles

Facial spectrum and color characteristics of five viscera reflecting on the face in sub-health status

Wu Hong-jin,Xu Jia-tuo(),Lu Lu-ming,Chen Xiao,Tu Li-ping,Zhang Zhi-feng

  1. Fei Zhaofu Famous Doctor Research Laboratory, School of Basic Medical Sciences, Shanghai University of Traditional Chinese Medicine, Shanghai 201203, China
  • Received:2011-07-05 Accepted:2011-08-09 Online:2012-01-20 Published:2018-09-21
  • Contact: Xu Jia-tuo E-mail:xjt@fudan.edu.cn

RichHTML

PDF (PC)

288

Like

OBJECTIVE: To observe the facial spectrum and color of different points, the positions of heart, liver, spleen, lung and kidney of traditional Chinese medicine reflecting on the face, in healthy participants and those with a sub-health status, so as to provide an objective basis for health evaluation.METHODS: The health condition of 470 subjects without acute and chronic conditions was assessed using the Health Evaluating Questionnaire H20 V2009. The subjects were diagnosed with health (more than 80 score) or sub-health (score between 60 and 80) status according to the questionnaire score. The subjects with a sub-health status were also analyzed using the five-viscera syndrome differentiation of traditional Chinese medicine using the form for collecting information according to the four examinations. Then for gathering the facial color information, CIE L*a*b and C values and reflections of wavelengths ranged from 400 to 700 nm were measured using a CM-2600D spectrophotometer on 8 points of the face, including the frontal part, glabellas, nose, mandible, two cheeks and eyelids.RESULTS: L value of the sub-health group was higher than that of the health group (P<0.05), and a, b and C values were lower than those of the health group (P<0.05), suggesting that the facial complexion of the sub-health group was pale/whiter than the health group. The reflectance rates of wavelengths (from 400 to 550 nm) of the sub-health group were higher than those of the health group (P<0.05), which suggested that the facial complexion of the sub-health group was partially green. The a, b and C values of the forehead, glabellas and nose of subjects in the sub-health group were apparently different from the health subjects. L values of five-viscera types were significantly different from people of a health status (P<0.05). There were some differences in color values among the five-viscera groups: lung group’s color values were significantly different from the others in terms of a, b and C values. The spectral reflectance of different viscera groups of the sub-health group also showed certain differences: reflectance of wavelengths at 400 to 490 nm in the lung group and at 520 to 580 nm in the spleen group showed significant difference from the other groups, and the lung group was lower and the spleen group was higher than the others.CONCLUSION: There are some differences in facial spectrum and color in different sites of the face in sub-health status of different viscera syndrome types, which can provide an objective basis for health evaluation.

Key words: sub-health status, facial complexion, spectrum and color, skin color inspection

Table 1

L, a, b and C values of facial complexion of health and sub-health groups ($\bar{x}$±s)"

Group n L value a value b value C value
Health 183 59.80±4.03 18.08±2.68 18.20±2.23 25.77±2.44
Sub-health 287 60.09±3.88* 17.65±3.09* 17.86±2.21* 25.25±2.70*

Table 2

Reflectance of facial complexion of health and sub-health groups in fixed wavelength band ($\bar{x}$±s, %)"

Wavelength
(nm)		 Reflectance
Health group
(n=183)		 Sub-health group
(n=287)
400 12.33±2.88 12.61±2.72*
420 12.99±2.80 13.24±2.64*
440 15.61±3.21 15.92±3.05*
460 18.78±3.69 19.21±3.52*
480 20.93±3.87 21.38±3.71*
500 23.20±4.15 23.66±3.97*
520 24.18±4.39 24.59±4.20*
540 22.62±4.25 22.99±4.12*
560 24.08±4.34 24.39±4.22*
580 24.73±4.61 25.02±4.49
600 37.40±5.46 37.65±5.20
620 46.17±5.75 46.24±5.52
640 49.53±5.68 49.49±5.52
660 51.73±5.62 51.57±5.51
680 53.68±5.61 53.41±5.54
700 55.36±5.59 55.01±5.58

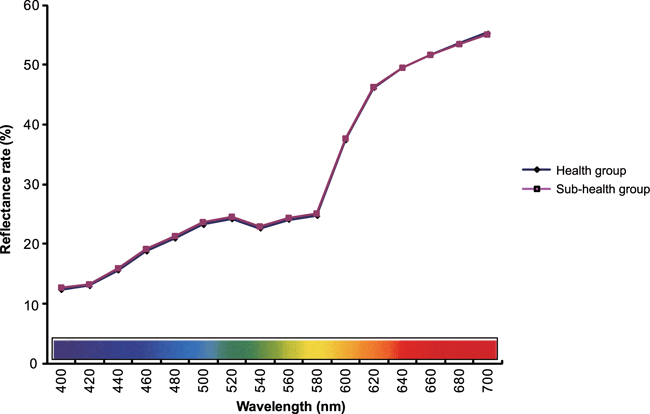

Figure 1

Fixed wavelength band reflectance curve of facial complexion of health and sub-health groups"

Table 3

L, a, b and C values of facial complexion at different points in health and sub-health groups ($\bar{x}$±s)"

Point Group n L value a value b value C value
Frontal part Health 183 59.56±2.90 17.16±1.67 20.04±1.38 26.40±1.0
Sub-health 287 60.33±2.94 15.39±2.69* 18.29±2.00* 24.06±2.61*
Glabellas Health 183 60.98±2.87△ 17.43±1.82 18.39±1.66△ 25.44±1.67△
Sub-health 287 60.87±2.88△ 15.58±2.81* 17.52±1.72*△ 23.62±2.39*△
Nose Health 183 59.61±3.16▲ 20.28±2.33△▲ 19.58±1.52△▲ 28.33±1.66△▲
Sub-health 287 60.29±2.93*▲ 16.78±3.67*△▲ 18.13±1.93▲ 24.91±3.21*△▲
Mandible Health 183 58.87±3.42▲ 18.62±1.82△▲□ 18.11±1.48△□ 26.05±1.70▲□
Sub-health 287 59.99±3.16▲ 16.17±3.13△▲□ 17.43±1.69△□ 23.97±2.54*▲□
Left cheek Health 183 60.69±3.34△□■ 18.75±2.33△▲□ 17.88±1.66△▲□ 26.05±1.70▲□
Sub-health 287 60.59±3.07 16.25±3.35△▲□ 17.40±1.68△□ 24.02±2.63*▲□
Right cheek Health 183 60.91±3.46△□■ 18.53±2.30△▲□ 17.95±1.65△▲□ 25.94±1.73△▲□
Sub-health 287 60.75±3.06□■ 16.06±3.27△▲□ 17.43±1.74△□ 23.91±2.57*△▲□■

Table 4

L, a, b and C values of facial complexion in sub-health group with different viscera syndrome and health groups ($\bar{x}$±s)"

Group n L value a value b value C value
Heart 28 60.70±3.91* 17.69±2.89 18.18±2.27 25.50±2.64
Liver 80 60.59±3.89* 17.69±3.11 18.26±2.05 25.58±2.45
Spleen 74 59.85±3.78☆★ 18.20±2.97 18.02±2.10 25.75±2.50
Lung 39 60.75±4.01*○ 17.03±3.12*★○ 17.44±2.35*☆★○ 24.51±2.95*☆★○
Kidney 66 60.43±3.83*○ 17.80±2.99● 18.27±2.32● 25.65±2.58●
Health 183 59.80±4.03 18.08±2.67 18.20±2.23 25.77±2.44

Table 5

Reflectance of facial complexion in sub-health group with different viscera syndrome and health group in fixed wavelength band ($\bar{x}$±s, %)"

Wavelength
(nm)		 Reflectance
Heart group
(n=28)		 Liver group
(n=80)		 Spleen group
(n=74)		 Lung group
(n=39)		 Kidney group
(n=66)		 Health group
(n=183)
400 13.09±2.92* 12.58±2.73☆ 12.41±2.63☆ 13.10±2.93*★○ 12.64±2.51*☆● 12.33±2.88
420 13.57±2.81* 13.29±2.61* 13.00±2.49☆★ 13.72±2.85*★○ 13.31±2.53*○● 13.00±2.80
440 16.26±3.20* 16.02±3.03* 15.61±2.87☆★ 16.55±3.31*★○ 15.99±2.94*○● 15.62±3.21
460 19.56±3.62* 19.39±3.52* 18.82±3.33☆★ 20.04±3.85*★○ 19.24±3.36*○● 18.76±3.69
480 21.74±3.75* 21.59±3.71* 20.96±3.51☆★ 22.30±4.05*★○ 21.42±3.52*○● 20.93±3.88
500 24.11±4.02* 23.88±3.98* 23.18±3.78☆★ 24.59±4.28*★○ 23.76±3.77*○● 23.20±4.15
520 25.19±4.31* 24.83±4.22* 24.07±4.01☆★ 25.42±4.41*★ 24.81±4.09*○● 24.18±4.39
540 23.62±4.32* 23.24±4.14* 22.46±3.92☆★ 23.72±4.25*○ 23.28±4.18*○ 22.62±4.25
560 25.01±4.37* 24.66±4.23* 23.87±4.02☆★ 25.08±4.32*○ 24.71±4.31*○ 24.08±4.34
580 25.72±4.67* 25.31±4.51* 24.48±4.28☆★ 25.69±4.58*○ 25.39±4.67*○ 24.73±4.61
600 38.45±5.13* 37.84±5.13 37.14±5.08☆★ 38.25±5.41*○ 38.11±5.01○* 37.40±5.46
620 47.27±5.57* 46.29±5.37☆ 45.85±5.29☆ 46.60±6.01○ 46.81±5.14*○ 46.17±5.75
640 50.62±5.55* 49.50±5.36☆ 49.13±5.23☆ 49.72±6.10 50.11±5.12*★○ 49.53±5.68
660 52.77±5.52* 51.57±5.34☆ 51.24±5.16☆ 51.71±6.18☆ 52.23±5.14★○ 51.73±5.62
680 54.67±5.53* 53.39±5.37☆ 53.10±5.12☆ 53.44±6.30☆ 54.10±5.20★○ 53.68±5.61
700 56.34±5.58* 54.98±5.41☆ 54.72±5.11☆ 54.95±6.41☆ 55.73±5.29★○● 55.36±5.59
[1] China Association of Chinese Medicine. Clinical guidelines for Chinese medicine on sub-health. Beijing: China Press of Traditional Chinese Medicine. 2006 : 1. Chinese.
中华中医药学会. 亚健康中医临床指南.北京: 中国中医药出版社. 2006: 1.
[2] Liu BY, He LY , Xie YM. Study on concept of sub-health state. Zhongguo Zhong Yi Ji Chu Yi Xue Za Zhi. 2006; 12(11):801-802. Chinese.
刘保延, 何丽云, 谢雁鸣 . 亚健康状态的概念研究.中国中医基础医学杂志. 2006; 12(11):801-802.
[3] Liu WL, Yu M, Zhang Y, Duan YP, Li XH , Hu JH. Comparative study on objectification of complexion inspection in patients with deficiency of liver-yin and kidney-yin syndrome due to sub-health status or chronic hepatitis B. Shannxi Zhong Yi. 2004; 25(1):27-28. Chinese.
刘文兰, 于玫, 张炎, 段延萍, 李秀惠, 胡建华 . 亚健康状态与慢性乙型肝炎肝肾阴虚证色诊客观化比较研究.陕西中医. 2004; 25(1):27-28.
[4] Liu WL, Li XH, Zhang Y, Hu JH, Yu M, Zhang QY , Fan Y. Objective study on color inspection of chronic hepatitis B. Zhonghua Shi Yong Zhong Xi Yi Za Zhi. 2004; 4(17) : 1292-1295. Chinese with abstract in English.
刘文兰, 李秀惠, 张炎, 胡建华, 于玫, 张秋云, 范晔 . 慢性乙型肝炎色诊客观化研究.中华实用中西医杂志. 2004; 4(17) : 1292-1295.
[5] Yuan ZK, Cheng YM, Zhang YH , Fan FY. Clinical research on blood volume changes of the health people with normal complexion. Zhongguo Zhong Yi Ji Chu Yi Xue Za Zhi. 1996; 2(2) : 33-36. Chinese.
袁肇凯, 程韵梅, 张渝寒, 范伏元 . 健康人面部常色血流容积变化的临床研究.中国中医基础医学杂志. 1996; 2(2) : 33-36.
[6] Yuan ZK, Huang XP, Fan FY , Cheng YM. Analysis of photoplethysmogram on different positions of 253 normal adults. Hunan Zhong Yi Xue Yuan Xue Bao. 2000 ; 20(3) : 1-3. Chinese with abstract in English.
袁肇凯, 黄献平, 范伏元, 程韵梅 . 253例健康人不同部位光电血管容积图检测分析.湖南中医学院学报. 2000; 20(3) : 1-3.
[7] Tian XF, Cheng S , Zhou Q. Spectral graph analysis of bright hall color-reflex of spleen disease. Hunan Zhong Yi Yao Dao Bao. 2001; 7(2):79-81. Chinese with abstract in English.
doi: 10.3969/j.issn.1672-951X.2001.02.022
田雪飞, 程曙, 周青 . 脾病名堂色反射光谱图像分析. 湖南中医药导报. 2001; 7(2):79-81.
doi: 10.3969/j.issn.1672-951X.2001.02.022
[8] Zhu HH. Research on questionnaire evaluation methods and epidemiological characteristics of subhealth status. Shanghai : Shanghai University of Traditional Chinese Medicine. 2010. Chinese.
朱红红 . 亚健康状态的问卷评价方法与流行病学特征研究.上海:上海中医药大学. 2010.
[9] Zhu WF. Diagnostics of traditional Chinese medicine. Beijing: China Press of Traditional Chinese Medicine. 2002. Chinese.
朱文峰 . 中医诊断学.北京: 中国中医药出版社. 2002.
[10] State Bureau of Technical and Quality Supervision. Clinic terminology of traditional Chinese medical diagnosis and treatment — Syndromes . 1997. Chinese.
国家技术监督局. 中华人民共和国国家标准:中医临床诊疗术语证候部分. 1997.
[11] Hu CF. Printing color and chromaticity. Beijing: Graphic Communications Press. 1993: 174-175. Chinese.
胡成发 . 印刷色彩与色度学.北京: 印刷工业出版社. 1993: 174-175.
[12] Liu YH, Li HY, Zhu QW, Yang XZ , Niu X. Identification of sub-health status based on the instrument of correlation of all four examinations. In: China Association of Chinese Medicine. Proceedings of the 11th National Academic Annual Conference of Traditional Chinese Medicine Diagnosis. Beijing, 2010: 16-19. Chinese.
刘艳红, 李海燕, 朱庆文, 杨学智, 牛欣 . 基于四诊合参仪的亚健康状态辨识.//中华中医药学会.全国第十一次中医诊断学术年会论文集. 北京, 2010: 16-19.
[13] Zhu WF. Diagnostics of traditional Chinese medicine. Beijing: People’s Medical Publishing House. 1999: 1-5. Chinese.
朱文锋 . 中医诊断学.北京: 人民卫生出版社. 1999: 1-5.
[14] Chen Q , Zhang SH. Study on key problems in objective studies of tongue complexion and facial complexion. Zhonghua Zhong Yi Yao Xue Kan. 2008; 26(7):1372-1374. Chinese with abstract in English.
doi: 10.3969/j.issn.1673-7717.2008.07.003
陈群, 张书河 . 舌色、面色诊断客观化关键问题研究. 中华中医药学刊. 2008; 26(7):1372-1374.
doi: 10.3969/j.issn.1673-7717.2008.07.003
