Journal of Chinese Integrative Medicine ›› 2012, Vol. 10 ›› Issue (12): 1490-1496.doi: 10.3736/jcim20121224

• Original Experimental Research • Previous Articles     Next Articles

Effects of electroacupuncture on expression of c-fos protein in the spinal dorsal horn of rats with chronic visceral hyperalgesia

De-bo Qi, Wei-min Li()

  1. Laboratory of Neuronal Network and Systems Biology, Shanghai Medical College, Fudan University, Shanghai 200032, China
  • Received:2012-06-10 Accepted:2012-07-04 Online:2012-12-20 Published:2018-12-15

Objective: Acupuncture is widely used in clinics to suppress chronic visceral pain in patients with irritable bowel syndrome (IBS); however, the exact neurobiological mechanisms for its therapeutic effects need further exploration. The aim of this study was to investigate the possible involvement of spinal neurons in the effects of electroacupuncture (EA) in relieving chronic visceral hyperalgesia in a rat model of IBS.
Methods: Colon mechanical irritation was applied to male neonatal Sprague-Dawley rats to establish the IBS model. Behavioral test of the abdominal withdraw reflex (AWR) response to colorectal distention stimuli was conducted to judge the degree of colorectal sensitivity. EA at acupoints Zusanli (ST36) and Shangjuxu (ST37) was applied bilaterally in a total of four times every other day, while sham-EA at similar acupoints was done by inserting needles without electrical stimulation. Immunohistochemical methods were used to display the expression of proto-oncogene protein c-fos in the spinal dorsal horn.
Results: It was found that AWR scores were significantly increased in the IBS model rats (P<0.01), accompanied with significant increase in the expression of c-fos protein in the superficial laminae (SDH, laminae Ⅰ and Ⅱ) and nucleus proprius (NP, laminae Ⅲ and Ⅳ), the neck of the dorsal horn (NECK, laminae V and VI) at lumbosacral (L6-S2) spinal level, and in NECK at thoracolumbar (T13-L2) spinal level, when compared with normal rats (P<0.05). After EA treatment, AWR scores and the expression of c-fos protein in SDH, NP and NECK at similar spinal levels were significantly decreased in the IBS model rats (P<0.05). No such effects on either AWR scores or the expression of c-fos protein were observed in IBS model rats after sham-EA treatment.
Conclusion: The abnormally high neuronal excitability in the spinal dorsal horn may be an important reason underlying the visceral hyperalgesia in IBS model rats. EA treatment can relieve the chronic visceral hyperalgesia in IBS rats by suppressing the abnormal neuronal excitability in the spinal dorsal horn.

Key words: hyperalgesia, acupuncture therapy, proto-oncogene proteins c-fos, irritable bowel syndrome, rats

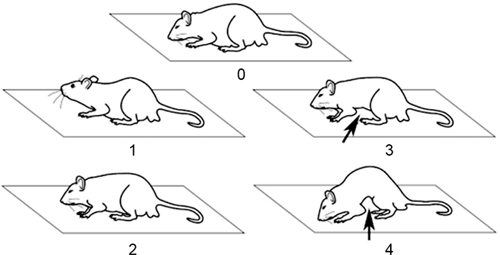

Figure 1

Schematic diagram for measuring AWR scores in rats AWR responses to graded CRD of 20, 40, 60 and 80 mmHg were visually observed and were divided into 5 scores: 0, no behavioral response to CRD; 1, an immobility response during the CRD at the onset of the stimulus; 2, a mild contraction of the abdominal muscles, but no lifting the abdomen off the platform; 3, a strong contraction of the abdominal muscles and lifting the abdomen off the platform, no lifting the pelvic structure off the platform; 4, body arching and lifting the pelvic structure and scrotum. AWR: abdominal withdrawal reflex; CRD: colorectal distention."

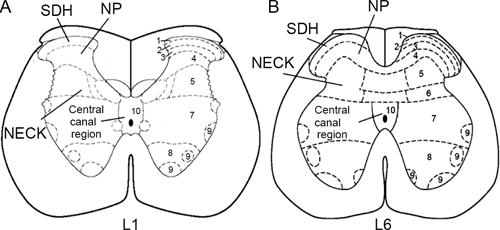

Figure 2

The spinal dorsal horn sliced at the level of T13-L2 and L6-S2 segments A: The sample of transversal photographs at the L1 level; B: The sample of transversal photographs at the L6 level. SDH: superficial laminae (laminae Ⅰ and Ⅱ); NP: nucleus proprius (laminae Ⅲ and Ⅳ); NECK: neck of the dorsal horn (laminae Ⅴ and Ⅵ); 1-10: spinal laminae Ⅰ - Ⅹ."


Group n 20 mmHg 40 mmHg 60 mmHg 80 mmHg
Normal control 8 0.35±0.10 1.38±0.09 2.04±0.09 2.67±0.07
IBS model 8 1.00±0.09** 2.19±0.07** 2.90±0.08** 3.67±0.12**
EA treatment 8 0.29±0.06 1.39±0.05 2.32±0.07 3.01±0.07
Sham-EA treatment 8 0.77±0.05 1.91±0.07 2.79±0.07 3.60±0.08

Figure 3

Representative microphotographs of c-fos protein immunoreactive neurons in thoracolumbar segments (Light microscopy, ×100) N: Normal control group; M: IBS model control group; EA: IBS model rats after EA treatment; SEA: IBS model rats after sham-EA treatment; IBS: irritable bowel syndrome; EA: electroacupuncture."


Group n SDH NP NECK Central canal region
Normal control 8 29.67±1.30 18.94±1.39 10.16±0.95 18.73±1.25
IBS model 8 28.36±1.14 22.10±1.02 14.30± 0.80* 18.60±0.87
EA treatment 8 27.09±1.42 19.23±0.94 9.74±0.74 16.04±0.88
Sham-EA treatment 8 27.84±1.03 22.66±1.14 10.83±0.73 15.37±0.88

Figure 4

Representative microphotographs of c-fos protein immunoreactive neurons in lumbosacral segments (Light microscopy, ×100) N: Normal control group; M: IBS model control group; EA: IBS model rats after EA treatment; SEA: IBS model rats after sham-EA treatment; IBS: irritable bowel syndrome; EA: electroacupuncture."


Group n SDH NP NECK Central canal region
Normal control 8 19.37±0.71 19.39±0.68 18.25±0.72 9.09±0.45
IBS model 8 30.77±1.29* 35.38±1.39* 24.87±1.03* 11.36±1.0*
EA treatment 8 22.33±0.85 21.48±0.82 15.94±0.88 7.32±0.45
Sham-EA treatment 8 27.89±1.04 28.85±1.16 23.05±1.14 10.58±0.67
[1] Sengupta JN . Visceral pain: the neurophysiological mechanism. Handb Exp Pharmacol. 2009 ; ( 194) : 31-74.
doi: 10.1007/978-3-540-79090-7_2 pmid: 3156094
[2] Longstreth GF, Thompson WG, Chey WD, Houghton LA, Mearin F, Spiller RC . Functional bowel disorders. Gastroenterology. 2006; 130(5):1480-1491.
doi: 10.1053/j.gastro.2005.11.061
[3] Mayer EA, Collins SM . Evolving pathophysiologic models of functional gastrointestinal disorders. Gastroenterology. 2002; 122(7):2032-2048.
doi: 10.1053/gast.2002.33584
[4] Verne GN, Robinson ME, Price DD . Hypersensitivity to visceral and cutaneous pain in the irritable bowel syndrome. Pain. 2001; 93(1):7-14.
doi: 10.1016/S0304-3959(01)00285-8 pmid: 11406333
[5] Naliboff BD, Munakata J, Fullerton S, Gracely RH, Kodner A, Harraf F, Mayer EA . Evidence for two distinct perceptual alterations in irritable bowel syndrome. Gut. 1997; 41(4) : 505-512.
doi: 10.1136/gut.41.4.505 pmid: 1891510
[6] Aziz Q, Botha C, Willert R . Pharmacology of visceral pain: central factors. Dig Dis. 2009 ; 27 Suppl 1 : 31-41.
doi: 10.1159/000268119 pmid: 20203495
[7] Mayer EA, Gebhart GF . Basic and clinical aspects of visceral hyperalgesia. Gastroenterology. 1994 ; 107(1):271-293.
doi: 10.1016/0016-5085(94)90086-8
[8] Wang ZJ, Li WM . Effects of electroacupuncture on disorder of intestinal motility in a rat model of irritable bowel syndrome. J Chin Integr Med. 2010; 8(9):883-887. Chinese with abastract inEnglish.
doi: 10.3736/jcim20100913
王智君, 李为民 . 电针对肠易激综合征大鼠肠道运动异常的调节作用.中西医结合学报. 2010; 8(9):883-887.
doi: 10.3736/jcim20100913
[9] Cui KM, Li WM, Gao X, Chung K, Chung JM, Wu GC . Electro-acupuncture relieves chronic visceral hyperalgesia in rats. Neurosci Lett. 2005; 376(1):20-23.
doi: 10.1016/j.neulet.2004.11.018 pmid: 15694267
[10] Zhou J, Li WM . Influence of electroacupuncture on expression of N-methyl-D-aspartate receptors in the spinal cord of irritable bowel syndrome rat. Shanghai Zhen Jiu Za Zhi. 2008. 27(6):38-40. Chinese with abstract inEnglish.
周娟, 李为民 . 电针对肠易激综合征大鼠脊髓NMDA受体表达的影响 .上海针灸杂志. 2008; 27(6):38-40.
[11] Qi DB, Li WM . Effects of electroacupuncture on expression of c-fos protein and N-methyl-D-aspartate receptor 1 in the rostral ventromedia medulla of rats with chronic visceral hyperalgesia. J Chin Integr Med. 2012 ; 10(4):416-423. English with abstract inChinese.
doi: 10.3736/jcim20120410
祁德波, 李为民 . 电针对慢性内脏痛觉敏感大鼠延髓头端腹内侧核C-fos蛋白和NR1受体表达的影响.中西医结合学报. 2012; 10(4):416-423.
doi: 10.3736/jcim20120410
[12] Sagar SM, Sharp FR, Curran T . Expression of c-fos protein in brain: metabolic mapping at the cellular level. Science. 1988; 240(4857):1328-1331.
doi: 10.1126/science.3131879 pmid: 3131879
[13] Al-Chaer ED, Kawasaki M, Pasricha PJ . A new model of chronic visceral hypersensitivity in adult rats induced by colon irritation during postnatal development. Gastroenterology. 2000; 119(5):1276-1285.
doi: 10.1053/gast.2000.19576
[14] Paxinos G, Watson C . The rat brain in stereotaxic coordinates : compact 6th edition. 6th ed. Waltham: Elsevier. 2008: 450-451.
doi: 10.1016/0165-0270(80)90021-7
[15] Baron R, Jänig W . Afferent and sympathetic neurons projecting into lumbar visceral nerves of the male rat. J Comp Neurol. 1991; 314(3):429-436.
doi: 10.1002/cne.903140302 pmid: 1726105
[16] De Groat WC . Neuropeptides in pelvic afferent pathways. Experientia. 1987; 43(7):801-813.
doi: 10.1007/BF01945358 pmid: 3297768
[17] Keast JR, De Groat WC . Segmental distribution and peptide content of primary afferent neurons innervating the urogenital organs and colon of male rats. J Comp Neurol. 1992; 319(4):615-623.
[18] Berkley KJ, Robbins A, Sato Y . Functional differences between afferent fibers in the hypogastric and pelvic nerves innervating female reproductive organs in the rat. J Neurophysiol. 1993; 69(2):533-544.
[19] Su X, Sengupta JN, Gebhart GF . Effects of kappa opioid receptor-selective agonists on responses of pelvic nerve afferents to noxious colorectal distension. J Neurophysiol. 1997; 78(2) : 1003-1012.
[20] Brierley SM Jones RC 3rd, Gebhart GF, Blackshaw LA .Splanchnic and pelvic mechanosensory afferents signal different qualities of colonic stimuli in mice. Gastroenterology. 2004; 127(1):166-178.
doi: 10.1053/j.gastro.2004.04.008
[21] Lynn PA, Blackshaw LA . In vitro recordings of afferent fibres with receptive fields in the serosa, muscle and mucosa of rat colon. J Physiol. 1999; 518(Pt 1) : 271-282.
[22] Ness TJ, Gebhart GF . Interactions between visceral and cutaneous nociception in the rat. Ⅱ. Noxious visceral stimuli inhibit cutaneous nociceptive neurons and reflexes. J Neurophysiol. 1991; 66(1):29-39.
[23] Traub RJ . Evidence for thoracolumbar spinal cord processing of inflammatory, but not acute colonic pain. Neuroreport. 2000; 11(10):2113-2116.
doi: 10.1049/el:20030526 pmid: 10923654
[24] Traub RJ, Pechman P, Iadarola MJ, Gebhart GF . Fos- like proteins in the lumbosacral spinal cord following noxious and non-noxious colorectal distention in the rat. Pain. 1992; 49(3) : 393-403.
doi: 10.1016/0304-3959(92)90247-9
[25] Traub RJ, Murphy A . Colonic inflammation induces fos expression in the thoracolumbar spinal cord increasing activity in the spinoparabrachial pathway. Pain. 2002; 95(1-2):93-102.
doi: 10.1016/S0304-3959(01)00381-5
[26] Wu JC, Ziea ET, Lao L, Lam EF, Chan CS, Liang AY, Chu SL, Yew DT, Berman BM, Sung JJ . Effect of electroacupuncture on visceral hyperalgesia, serotonin and fos expression in an animal model of irritable bowel syndrome. J Neurogastroenterol Motil. 2010 ; 16(3):306-314.
doi: 10.5056/jnm.2010.16.3.306
[27] Rong PJ, Zhu B, Huang QF, Gao XY, Ben H, Li YH . Acupuncture inhibition on neuronal activity of spinal dorsal horn induced by noxious colorectal distention in rat. World J Gastroenterol. 2005; 11(7):1011-1017.
[28] Cao X . Scientific bases of acupuncture analgesia. Acupunct Electrother Res. 2002; 27(1):1-14.
doi: 10.3727/036012902816026103 pmid: 12044016
[29] Xu KD, Liang T, Wang K, Tian DA . Effect of preelectroacupuncture on p38 and c-Fos expression in the spinal dorsal horn of rats suffering from visceral pain. Chin Med J (Engl). 2010; 123(9):1176-1181.
[30] Yu WC, Huang GY, Zhang MM, Wang W . Effect of Connexin 43 knockout on acupuncture-induced down- regulation of c-fos expression in spinal dorsal horn in visceral pain mice. Zhen Ci Yan Jiu. 2008; 33(3):179-182. Chinese with abstract inEnglish.
余炜昶, 黄光英, 张明敏, 王伟 . 敲除缝隙连接蛋白Cx 43对针刺抑制内脏痛小鼠脊髓背角c-fos表达的影响. 针刺研究. 2008; 33(3):179-182.
