Journal of Chinese Integrative Medicine ›› 2013, Vol. 11 ›› Issue (5): 314-319.doi: 10.3736/jintegrmed2013044

• Research Article • Previous Articles     Next Articles

Difference between the effects of one-site and three-site abdominal hot-stone stimulation on the skin-temperature changes of the lower limbs

Hiroshi Kugea,b, Hidetoshi Moria, Tim Hideaki Tanakaa(), Kazuyo Hanyuc, Tateyuki Morisawac

  1. a. Department of Health, Faculty of Health Science, Tsukuba University of Technology, 4-12-7 Kasuga,Tsukuba-shi, Ibaraki, 305-8521, Japan
    b. Department of Anesthesiology, Osaka Medical College Hospital, 2-7 Daigakumachi, Takatsuki-shi,Osaka, 569-8686, Japan
    c. Graduate School of Life and Environmental Sciences, University of Tsukuba, 1-1-1 Tennoudai, Tsukuba-shi,Ibaraki, 305-8572, Japan
  • Received:2013-02-23 Accepted:2013-07-15 Online:2013-09-10 Published:2013-09-15


To determine whether any difference exists in the skin-temperature responses of the lower limbs to hot-stone application relative to one-site and three-site abdominal application.


Twenty-five female students participated in experimental sessions after a random allocation: 14 participants received a hot-stone application on the umbilicus, superior-umbilicus, and inferior-umbilicus regions (hereafter referred to as the three-site stimulation group); and 11 participants received the hot-stone application on the umbilicus region only (hereafter referred to as the one-site stimulation group). Heated stones were applied for 9 min to participants in both groups. Four arbitrary frames (the lower leg, ankle, proximal foot, and distal foot regions) were created in order to observe and analyze the skin temperature of a lower limb using a thermograph. Observation periods were as follows: before hot-stone stimulation, immediately after stimulation, and 5, 10, 15, and 20 min after stimulation.


There was a significant offset interaction of distal foot skin temperature between the groups. The left-side distal foot skin temperature increased at 15 and 20 min following the three-site abdominal hot-stone stimulation. The right-side distal foot skin temperature increased immediately and at 5, 10, 15, and 20 min following the three-site abdominal hot-stone stimulation. No significant change in distal foot skin temperature was observed following the one-site stimulation.


Lower-limb skin temperature was altered following hot-stone stimulation applied to the abdomen, and the one-site stimulation and three-site stimulation yielded different distal foot skin-temperature reactions.

Key words: Thermography, Skin temperature, Massage, Hot-stone, Pilot study

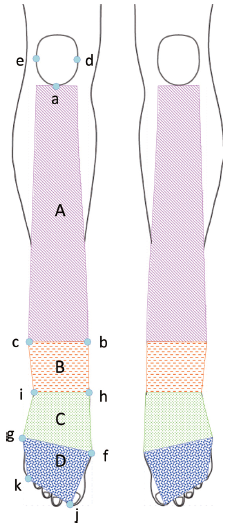

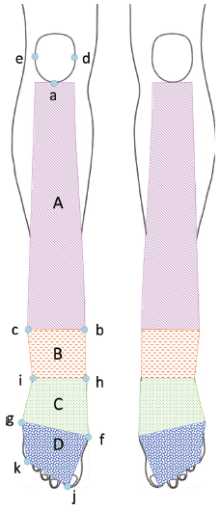

Figure 1

The exact locations of the frames with anatomical landmarks Arbitrary frames used to analyze skin temperature of lower limb: A: Anterior aspect of lower leg frame (referred to as Lower Leg in the text); B: Anterior aspect of ankle frame (referred to as Ankle in the text); C: Dorsal proximal aspect of foot frame (referred to as Proximal Foot in the text); D: Dorsal distal aspect of foot frame (referred to as Distal Foot in the text). Anatomical land marks used to create arbitrary frames: a: Inferior border of the patella; b: Highest point of the medial malleolus; c: Highest point of the lateral malleolus; d: Medial border of the patella; e: Lateral border of the patella; f: Medial aspect of the 1st metatarsophalangeal joint; g: Lateral aspect of the 5th metatarsophalangeal joint; h: Midpoint between b and f; i: Midpoint between c and g; j: Distal end of the 1st phalanx; k: Distal end of the 5th phalanx."

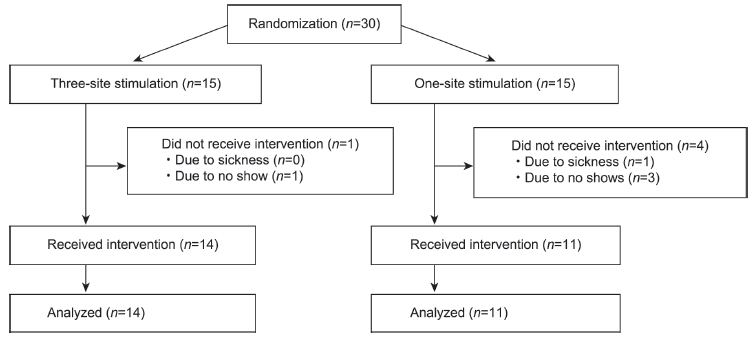

Figure 2

Flow of participants of the study"


[1] Sato A, Sato Y, Shimura M, Uchida S . Calcitonin gene-related peptide produces skeletal muscle vasodilation following antidromic stimulation of unmyelinated afferents in the dorsal root in rats[J]. Neurosci Lett, 2000,283(2):137-140
doi: 10.1016/S0304-3940(00)00932-0
[2] Mori H, Kuge H, Tanaka TH, Taniwaki E, Ohsawa H . Is there a difference between the effects of single and triple indirect moxibustion stimulations on skin temperature changes of the posterior trunk surface? Acupunct Med. 2011; 29(2):116-121.
doi: 10.1136/aim.2010.002741
[3] Mori H, Tanaka TH, Kuge H, Sasaki K . Is there a difference between the effects of one-point and three-point indirect moxibustion stimulation on skin temperature changes of the posterior trunk surface? Acupunct Med. 2012; 30(1):27-31.
doi: 10.1136/acupmed-2011-010069
[4] Sugai GC, Freire Ade O, Tabosa A, Yamamura Y, Tufik S, Mello LE . Serotonin involvement in the electroacupuncture- and moxibustion-induced gastric emptying in rats[J]. Physiol Behav, 2004,82(5):855-861
doi: 10.1016/S0031-9384(04)00301-4
[5] Tabosa A, Yamamura Y, Forno ER, Mello LE . A comparative study of the effects of electroacupuncture and moxibustion in the gastrointestinal motility of the rat[J]. Dig Dis Sci, 2004,49(4):602-610
doi: 10.1023/B:DDAS.0000026305.20852.41
[6] Sato A, Sato Y, Schmidt R. Somatosensory modulation of heart rate and blood pressure. In: Blaustein MP, Grunicke H, Pette D, Schultz G, Schweiger M.Reviews of physiology biochemistry and pharmacology[M]. Berlin: Springer-Verlag, 1997, 118-127
[7] Kawakita K, Shinbara H, Imai K, Fukuda F, Yano T, Kuriyama K . How do acupuncture and moxibustion act? — Focusing on the progress in Japanese acupuncture research[J]. J Pharmacol Sci, 2006,100(5):443-459
doi: 10.1254/jphs.CRJ06004X
[8] Shanghai College of Traditional Medicine. Acupuncture, a comprehensive text[M]. Seattle: Eastland Press, 1981, 438-443
[9] Trulock A . Hot stone massage. Vol 53. New York:Sterling. 2006.
[10] Bodeker G, Burford G. Traditional knowledge and spas. In: Cohen M, Bodeker G.Understanding the global spa industry: spa management[M]. Oxford: Elsevier, 2008, 414-431
[11] Shibata Y, Wu J . Kampo treatment for climacteric disorders[M]. Brookline: Paradigm Publications, 1997, 33-49
[12] Yamashita H, Tsukayama H, Tanno Y, Nishijo K . Adverse events in acupuncture and moxibustion treatment: a six-year survey at a national clinic in Japan[J]. J Altern Complement Med, 1999,5(3):229-236
doi: 10.1089/acm.1999.5.229
