Journal of Chinese Integrative Medicine ›› 2010, Vol. 8 ›› Issue (9): 853-862.doi: 10.3736/jcim20100909

• Original Experimental Research • Previous Articles     Next Articles

Polymeric nanoparticle encapsulation of a naturally occurring plant scopoletin and its effects on human melanoma cell A375

Khuda-Bukhsh ARa,Bhattacharyya SSa,Paul Sa,Boujedaini Nb

  1. a Cytogenetics and Molecular Biology Laboratory, Department of Zoology, University of Kalyani, Kalyani 741235, India
    b Boiron Laboratory, 20, rue de la Liberation, Sainte-Les-Foy-Lyon, France
  • Received:2010-04-28 Accepted:2010-07-05 Online:2010-09-20 Published:2010-09-15


We formulated nano-encapsulation of a naturally occurring coumarin — scopoletin (7-hydroxy-6-methoxy coumarin, HMC, C10H8O4), isolated from plant Gelsemium sempervirens having anticancer potentials, with a bio-adhesive agent — polylactic-co-glycolic acid (PLGA) and tested if its cellular uptake, bioavailability and apoptotic (anticancer) potentials could thus be increased vis-vis unencapsulated HMC.

A375 melanoma cancer cells were used for testing cellular entry and anticancer potentials of HMC and nano-7-hydroxy-6-methoxy coumarin (NHMC) through several standard protocols. Characterization of NHMC was done by dynamic light scattering for determination of particle size, polydispersity index (PDI), and zeta potential. Surface morphology of nanoparticles was determined by scanning electron microscopy and atomic force microscopy.

HMC was encapsulated with more than 85% entrapment efficiency, the average particle size of NHMC being less than 110 nm and a PDI 0.237, which resulted in enhanced cellular entry and greater bioavailability. NHMC showed a faster cellular uptake (15 min) than its unencapsulated counterpart (30 min). Study of signal molecules through mRNA expressions revealed that NHMC caused down-regulation of cyclin-D1, proliferating cell nuclear antigen (PCNA), survivin and Stat-3, and up-regulation of p53 and caspase-3, that in turn induced a greater number of apoptosis vis-vis unencapsulated HMC.

The formulation yielded small-sized NHMC by biodegradable PLGA that took less time for cellular entry, and caused more apoptosis to cancer cells, but apparently had negligible cytotoxicity against normal skin cells. Nano-encapsulation of bioactive plant ingredients can be a strategy worth trying for designing effective chemopreventive drug products.

Key words: Polylactic-co-glycolic acid, Nanoparticles, Scopoletin, Melanoma, Apoptosis, Antineoplastic agents, Phytogenic, In vitro

Figure 1

Chemical structure of 7-hydroxy-6-methoxy coumarin (HMC)"

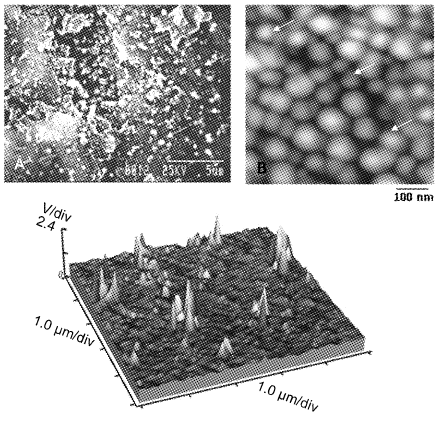

Figure 2

Surface images of NHMC and interaction of NHMC with A375 cells (A) SEM photograph of nanoparticles of HMC prepared from PLGA. (B) Surface topography of NHMC obtained by AFM. (C) Corresponding 3-D image of NHMC obtained by tapping mode AFM and visualized in amplitude mode."

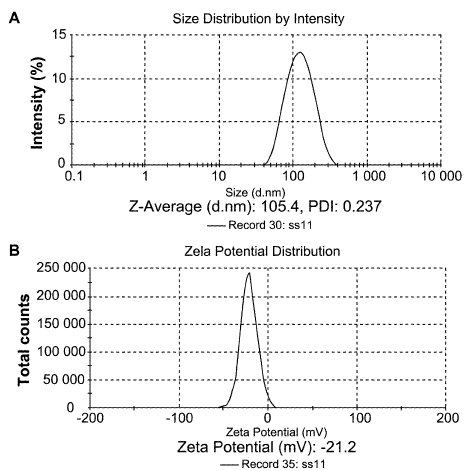

Figure 3

(A) Average particle size obtained from DLS data for PLGA-encapsulated NHMC. (B) Zeta potential of NHMC"

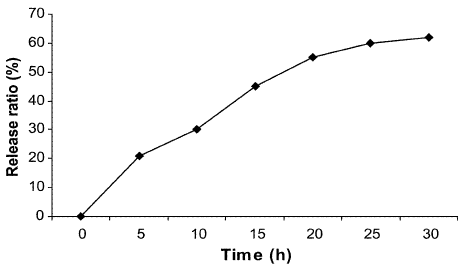

Figure 4

In vitro release kinetics of NHMC"

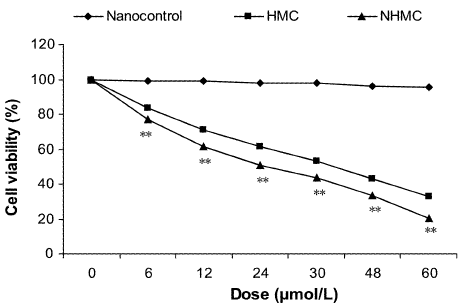

Figure 5

Cell viability of blank nanoparticles, HMC and NHMC with different doses against A375 cell line tested by MTT assay. **P<0.01, vs HMC group. All results were expressed with vehicle control as 100%."

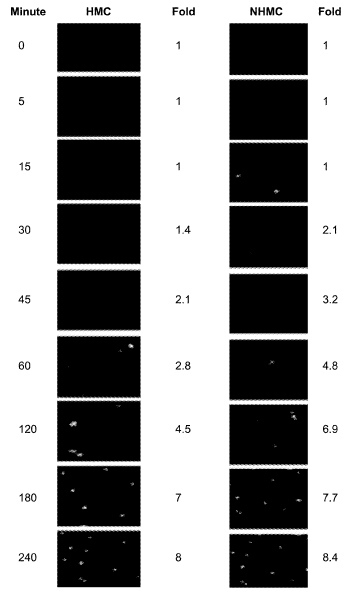

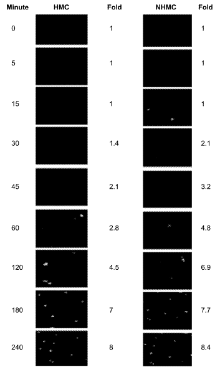

Figure 6

Cellular uptakes of HMC and NHMC in A375 cells"

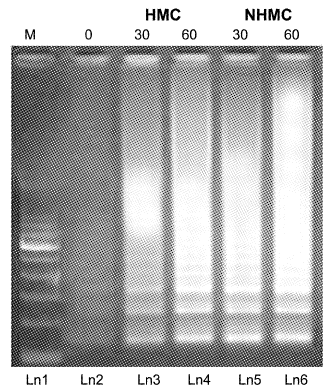

Figure 7

Effects of HMC and NHMC on A375 cells Ln1 contains a standard DNA ladder; Ln2 contains DNA from untreated cells; Ln3 contains DNA from HMC (30 μmol/L); Ln4 contains DNA from HMC (60 μmol/L); Ln5 from NHMC (30 μmol/L) and Ln6 from NHMC (60 μmol/L) -treated cells."

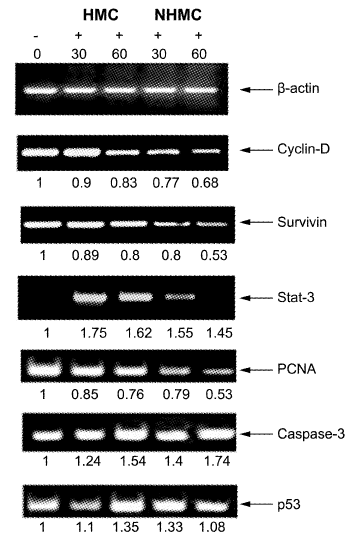

Figure 8

Expressions of β-actin, cyclin-D1, survivin, Stat-3, PCNA, caspase-3, and p53 analyzed by RT-PCR Ln1: Control; Ln2: HMC (30 μmol/L); Ln3: HMC (60 μmol/L); Ln4: NHMC (30 μmol/L); Ln5: NHMC (60 μmol/L)."


[1] Newman JDS, Blanchard GJ . Formation and encapsulation of gold nanoparticles using a polymeric amine reducing agent[J]. J Nanopart Res, 2007,9(5):861-868
doi: 10.1007/s11051-006-9145-y
[2] Bisht S, Feldmann G, Soni S, Ravi R, Karikar C, Maitra A, Maitra A .Polymeric nanoparticle-encapsulated curcumin(“nanocurcumin”): a novel strategy for human cancer therapy[J].J Nanobiotechnology, 2007, 5: 3
doi: 10.1186/1477-3155-5-3
[3] Anand P, Nair HB, Sung B, Kunnumakkara AB, Yadav VR, Tekmal RR, Aggarwal BB . Design of curcumin-loaded PLGA nanoparticles formulation with enhanced cellular uptake, and increased bioactivity in vitro and superior bioavailability in vivo[J]. Biochem Pharmacol, 2010,79(3):330-338
doi: 10.1016/j.bcp.2009.09.003
[4] Allemann E, Gurny R, Doelker E . Drug loaded nano-particles preparation methods and drug targeting tissues[J]. Eur J Pharm Biopharm, 1993,39(5):173-191
[5] Bhattacharyya SS, Mandal SK, Biswas R, Paul S, Pathak S, Boujedaini N, Belon P, Khuda-Bukhsh AR . In vitro studies demonstrate anticancer activity of an alkaloid of the plant Gelsemium sempervirens[J]. Exp Biol Med, 2008,233(12):1591-1601
doi: 10.3181/0805-RM-181
[6] Bhattacharyya SS, Paul S, Dutta S, Boujaedaini N, Khuda-Bukhsh AR . Anti-oncogenic potentials of a plant coumarin(7-hydroxy-6-methoxy coumarin) against 7,12-dimethylbenz[a]anthracene-induced skin papilloma in mice: the possible role of several key signal proteins[J]. J Chin Integr Med, 2010,8(7):645-654
Bhattacharyya SS, Paul S, Dutta S, Boujaedaini N, Khuda-Bukhsh AR. 东莨菪亭(7-羟基-6-甲氧基香豆素)对7,12-二甲基苯并蒽诱导的皮肤乳头状瘤小鼠相关关键信号蛋白的影响[J]. 中西医结合学报, 2010,8(7):645-654
[7] Bhattacharyya SS, Paul S, Khuda-Bukhsh AR . Encapsulated plant extract(Gelsemium sempervirens) poly(lactide-co-glycolide) nanoparticles enhance cellular uptake and increase bioactivity in vitro[J]. Exp Biol Med, 2010,235(6):678-688
doi: 10.1258/ebm.2010.009338
[8] Panyam J, Dali MM, Sahoo SK, Ma W, Chakravarthi SS, Amidon GL, Levy RJ, Labhasetwar V.Labhasetwar V . Polymer degradation and in vitro release of a model protein from poly(D,L-lactide-co-glycolide) nano- and microparticles[J]. J Control Release, 2003,92(1-2):173-187
doi: 10.1016/S0168-3659(03)00328-6
[9] Fessi H, Puisieux F, Devissaguet JP, Ammoury N, Benita S . Nanocapsule formation by interfacial polymer deposition following solvent displacement[J]. Int J Pharm, 1989,55(1):1-4
doi: 10.1016/0378-5173(89)90270-6
[10] Mosmann T . Rapid colorimetric assay for cellular growth and survival: application to proliferation and cytotoxicity assays[J]. J Immunol Methods, 1983,65(1-2):55-63
doi: 10.1016/0022-1759(83)90303-4
[11] Darzynkiewicz Z, Galkowski D, Zhao H . Analysis of apoptosis by cytometry using TUNEL assay[J]. Methods, 2008,44(3):250-254
doi: 10.1016/j.ymeth.2007.11.008 pmid: 2295206
[12] Kawaii S, Tomono Y, Ogawa K, Sugiura M, Yano M, Yoshizawa Y . The antiproliferative effect of coumarins on several cancer cell lines[J]. Anticancer Res, 2001,21(2A):917-923
[13] Ankola DD, Viswanad B, Bhardwaj V, Ramarao P, Kumar MN . Development of potent oral nanoparticulate formulation of coenzyme Q10 for treatment of hypertension: can the simple nutritional supplements be used as first line therapeutic agents for prophylaxis/therapy?[J]. Eur J Pharm Biopharm, 2007,67(2):361-369
doi: 10.1016/j.ejpb.2007.03.010
[14] Kim TY, Kim DW, Chung JY, Shin SG, Kim SC, Heo DS, Kim NK, Bang YJ . Phase I and pharmacokinetic study of Genexol-PM, a cremophor-free, polymeric micelle-formulated paclitaxel, in patients with advanced malignancies[J]. Clin Cancer Res, 2004,10(11):3708-3716
doi: 10.1158/1078-0432.CCR-03-0655
[15] Vasey PA, Kaye SB, Morrison R, Twelves C, Wilson P, Duncan R, Thomson AH, Murray LS, Hilditch TE, Murray T, Burtles S, Fraier D, Frigerio E, Cassidy J . Phase I clinical and pharmacokinetic study of PK1 [N-(2-hydroxypropyl)methacrylamide copolymer doxorubicin]: first member of a new class of chemotherapeutic agents-drug-polymer conjugates[J]. Clin Cancer Res, 1999,5(1):83-94
