Journal of Chinese Integrative Medicine ›› 2007, Vol. 5 ›› Issue (2): 126-129.doi: 10.3736/jcim20070204

• Original Clinical Research • Previous Articles     Next Articles

Correlation between syndrome differentiation and CT quantitative diagnosis of fatty liver

Song Wang1, Qiong Li2, Xi-fu Wang1, Guang Ji1

  1. 1. Department of Radiology, Longhua Hospital, Shanghai University of Traditional Chinese Medicine, Shanghai 200032,China
    2. Research Center of Fatty Liver, Longhua Hospital, Shanghai University of Traditional Chinese Medicine,Shanghai 200032,China
  • Online:2007-03-31 Published:2007-03-15

Objective: To explore the correlation between syndrome differentiation and CT quantitative diagnosis of fatty liver.

Methods: One hundred and thirteen cases of fatty liver verified clinically accepted plain CT scan after syndrome differentiation (syndrome of stagnation of liver qi and spleen deficiency, syndrome of intermingled phlegm and blood stasis, syndrome of phlegm-dampness blocking internally, syndrome of deficiency of liver and kidney, syndrome of interior dampness-heat), and then the CT values of the liver and the spleen were measured respectively.

Results: It was shown that there was a correlation between the syndrome differentiation and the fatty infiltration in the liver. Significant differences of the distribution of fat and the ratio of liver-spleen were found among the five different syndromes (P<0.05). Diffused, mild fatty liver mainly displayed syndrome of stagnation of liver qi and spleen deficiency.

Conclusion: Syndrome differentiation of fatty liver is correlated with CT quantitative diagnosis, which can be discriminated by the ratio of liver spleen.

Key words: fatty liver, tomography, X-ray computed, diagnosis, syndrome

CLC Number:

  • R81

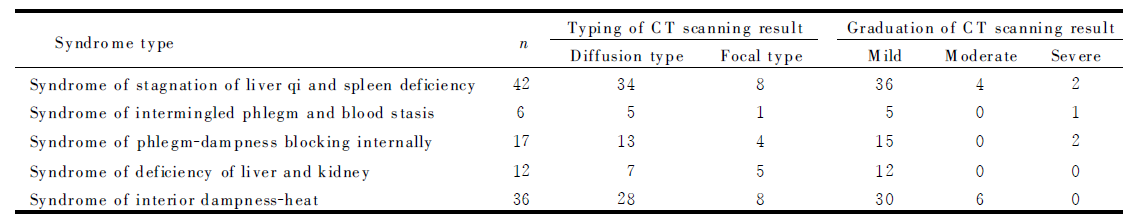

Table 1

Relation of syndrome differentiation and the typing and graduation of CT scanning results(Cases)"

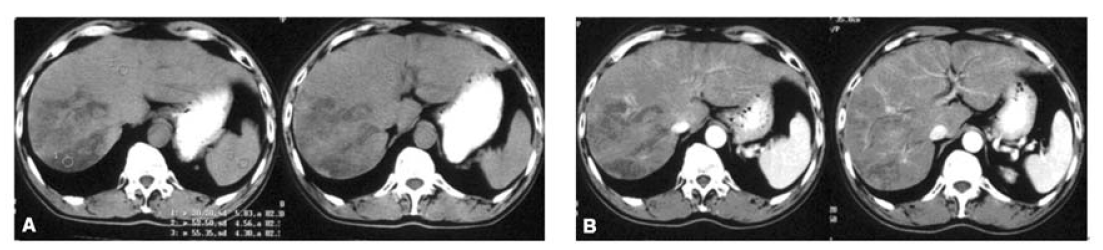

Figure 1

Focal type fatty liver A: The fatty infiltration of the liver was local; there was low lamellar density shadow in posterior segment of the right lobe of the liver, which was non-globular and showed transitional change without positioning effect; the ratio of liver and spleen CT values was 0.365 0. B: Enhancement scanning of the same case of A. It could be distinguished from occupying lesion in the liver."

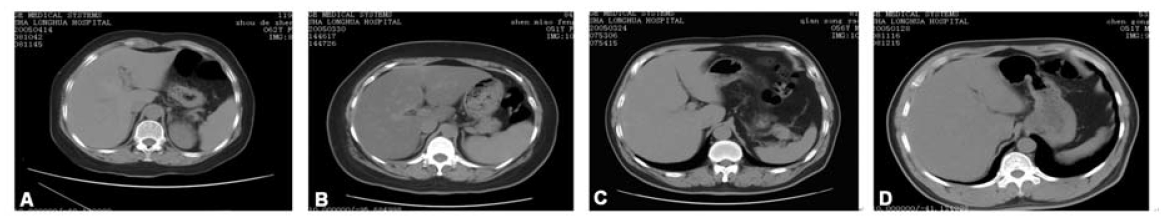

Figure 2

Diffusion type fatty liverA: This case was diagnosed as mild fatty liver with syndrome of stagnation of liver qi and spleen deficiency. The liver density was reduced widely; the CT value of the liver was lower than that of the spleen; the ratio of the liver and spleen CT values was 0.935 7, between 1.0 and 0.7. B: This case was diagnosed as severe fatty liver with syndrome of phlegmdampness blocking internally. CT scanning showed diffused, severe fatty liver, there was limpid blood vessel shadow; the ratio of the liver and spleen CT values was 0.449 3. C: This case was diagnosed as mild fatty liver with syndrome of interior dampnessheat. CT scanning showed diffused, mild fatty liver; the ratio of the liver and spleen CT values was 0.969 6. D: This case was diagnosed as moderate fatty liver with syndrome of interior dampnessheat. There was undefined blood vessel shadow; the ratio of the liver and spleen CT values was 0.685 2, between 0.7 and 0.5."

[1] 沈国良, 高雅文, 王丽萍, 等.脂肪肝辨证分型与B超分度间的关系研究[J].浙江中医杂志,2004,39(3):104-105
Shen GL, Gao YW, Wang LP, et al.A study on correlation between syndrome differentiation and ultrasound graduation for fatty liver[J].Zhejiang Zhong Yi Za Zhi,2004,39(3):104-105
[2] 李晓陵, 孙树凯, 王嘉彦, 等.64例脂肪肝中医证型与CT诊断对照研究[J].中医药信息,2002,19(4):58
Li XL, Sun SK, Wang JY, et al.A comparative study of traditional Chinese medicine syndrome and CT diagnosis in 64 patients with fatty liver[J].Zhong Yi Yao Xin Xi,2002,19(4):58
[3] 国家中医药管理局.中医病症诊断疗效标准[M].南京: 南京大学出版社,1994.224
State Administration of Traditional Chinese Medicine.Diagnostic and therapeutic effect evaluation criteria of diseases and syndromes in traditional Chinese medicine[M].Nanjing: Nanjing University Press,1994.224
[4] 中华医学会肝脏病学会脂肪肝和酒精性肝病学组.非酒精性脂肪性肝病诊断标准[J].中华肝脏病杂志,2003,11(2):71
Fatty Liver and Alcoholic Liver Disease Study Group of Chinese Liver Disease Association.Diagnostic criteria of nonalcoholic fatty liver disease[J].Zhonghua Gan Zang Bing Za Zhi,2003,11(2):71
[5] 魏华凤, 季光, 邢练军.脂肪肝辨证分型规律的初步研究[J].辽宁中医杂志,2002,29(11):655-656
Wei HF, Ji G, Xing LJ.Rudimental investigation on fatty liver syndrome differentiation typing law[J].Liaoning Zhong Yi Za Zhi,2002,29(11):655-656
[6] 邹刚. 脂肪肝的治疗近况[J].医药导报,1999,18(2):85-86
Zou G.Recent developments of treatment for fatty liver[J].Yi Yao Dao Bao,1999,18(2):85-86
7 Franzese A, Vajro P, Argenziano A, et al.Liver involvement in obese children. Ultrasonography and liver enzyme levels at diagnosis and during follow-up in an Italian population[J].Dig Dis Sci,1997,42(7):1428-1432
[8] 高雅文, 徐珊.脂肪肝的病因及中医辨证分型论治进展[J].浙江中医学院学报,2003,27(6):101-102
Gao YW, Xu S.Progress in etiopathogenisis and syndrome differentiation typing on fatty liver[J].Zhejiang Zhong Yi Xue Yuan Xue Bao,2003,27(6):101-102
[9] 缪锡民. 脂肪肝的中医分型证治[J].浙江中医学院学报,1998,22(6):24-25
Miu XM.Diagnosis and treatment of fatty liver in traditional Chinese medicine[J].Zhejiang Zhong Yi Xue Yuan Xue Bao,1998,22(6):24-25
[10] 吴晓华. 100例脂肪肝的超声诊断与中医辨证分型[J].新疆中医药,2003,21(4):16-17
Wu XH.Ultrasonographic diagnosis and syndrome differentiation typing of 100 patients with fatty liver[J].Xinjiang Zhong Yi Yao,2003,21(4):16-17
[11] 王骏, 魏玮.脂肪肝的中医辨证分型与血清生化指标的关系[J].中西医结合肝病杂志,2004,14(6):371-372
Wang J, Wei W.Relationship between biochemical indexes and syndrome differentiation of fatty liver[J].Zhong Xi Yi Jie He Gan Bing Za Zhi,2004,14(6):371-372
[12] 范小芬, 邓银泉.非酒精性脂肪肝血液流变学变化与中医证型关系[J].浙江中医杂志,2002,37(6):262-263
Fan XF, Deng YQ.Relationship between hemorheological changes and traditional Chinese medicine syndromes in nonalcoholic fatty liver[J].Zhejiang Zhong Yi Za Zhi,2002,37(6):262-263
[13] Venkataraman S, Braga L, Semelka RC.Imaging the fatty liver[J].Magn Reson Imaging Clin N Am,2002,10(1):93-103
[14] Martin J, Puig J, Falco J, et al.Hyperechoic liver nodules: characterization with proton fat-water chemical shift MR imaging[J].Radiology,1998,207(2):325-330
doi: 10.1148/radiology.207.2.9577476 pmid: 9577476
[15] Rinella ME, McCarthy R, Thakrar K, et al.Dual-echo, chemical shift gradient-echo magnetic resonance imaging to quantify hepatic steatosis: Implications for living liver donation[J].Liver Transpl,2003,9(8):851-856
[16] Bosmans H, Van Hoe L, Gryspeerdt S, et al.ngle-shot T2-weighted MR imaging of the upper abdomen: preliminary experience with double-echo HASTE technique[J].AJR Am J Roentgenol,1997,169(5):1291-1293
[17] Jacobs JE, Birnbaum BA, Shapiro MA, et al.Diagnostic criteria for fatty infiltration of the liver on contrast-enhanced helical CT[J].AJR Am J Roentgenol,1998,171(3):659-664
doi: 10.2214/ajr.171.3.9725292 pmid: 9725292
[18] Johnston RJ, Stamm ER, Lewin JM, et al.Diagnosis of fatty infiltration of the liver on contrast enhanced CT: limitations of liver-minus-spleen attenuation difference measurements[J].Abdom Imaging,1998,23(4):409-415
