Journal of Chinese Integrative Medicine ›› 2011, Vol. 9 ›› Issue (2): 186-193.doi: 10.3736/jcim20110212

• Original Experimental Research • Previous Articles     Next Articles

Anti-angiogenic effects of genistein on synovium in a rat model of type Ⅱ collagen-induced arthritis

Jin-xin Xu1, Yu Zhang1(), Xue-zeng Zhang2, Ying-ying Ma1

  1. 1. Department of Hematopathy and Rheumatism, Clinical Medicine College, Yangzhou University, Yangzhou 225001, Jiangsu Province, China
    2. Qingdao Health School, Qingdao 266071, Shandong Province, China
  • Received:2010-11-11 Accepted:2010-12-17 Online:2011-02-20 Published:2011-02-15
  • Contact: Zhang Yu

Objective: To explore the anti-angiogenic effects of genistein on synovium in a rat model of type Ⅱ collagen-induced arthritis (CIA).
Methods: Forty SD rats were randomly divided into normal group, model group, genistein group, methotrexate (MTX) group and Gen plus MTX group with 8 rats in each group. Arthritis in rats was induced by subcutaneous injection of type Ⅱ collagen combined with complete Freund’s adjuvant (CFA). On the second day after the injection, 1 mL of suspension liquid of genistein (30 mg/kg body weight, once daily) and MTX (0.2 mg/kg body weight, once a week) were administered by oral gavage respectively. The rats in normal group and model group were administered with normal saline in the same volume. Synovium of knee joints and peripheral serum were collected from the CIA rats. Microvessel density in synovium (MVD) was detected by immunohistochemical method and serum vascular endothelial growth factor (VEGF) and matrix metallopeptidase (MMP)-1, 2 and 9 levels were detected by using Western blotting.
Results: Arthritis index score, paw volume of rats in the model group were significantly higher than those in the normal group (P<0.05), which suggested that a model of CIA induced by injection of type Ⅱ collagen and CFA was successfully constructed. The arthritis index scores of rats in the treatment groups were decreased compared with the model group. The results of Western blotting showed that genistein obviously attenuate the levels of VEGF and MMP-1, 2 and 9 in serum (P<0.05). Immunohistochemical method showed that MVDs in the treatment groups were reduced as compared with the model group.
Conclusion: The expressions of VEGF and MMP-1, 2 and 9 are related to the synovial pannus formation in CIA rats. The anti-angiogenic activity of genistein may correlate to its inhibitory effect on the expressions of VEGF and MMP-1, 2 and 9 in serum of CIA rats; genistein plus MTX are superior to single agents in treating rheumatoid arthritis.

Key words: rheumatoid arthritis, genistein, arthritis, experimental, vascular endothelial growth factor, angiogenesis, matrix metalloproteinases, synovial membrane, rats

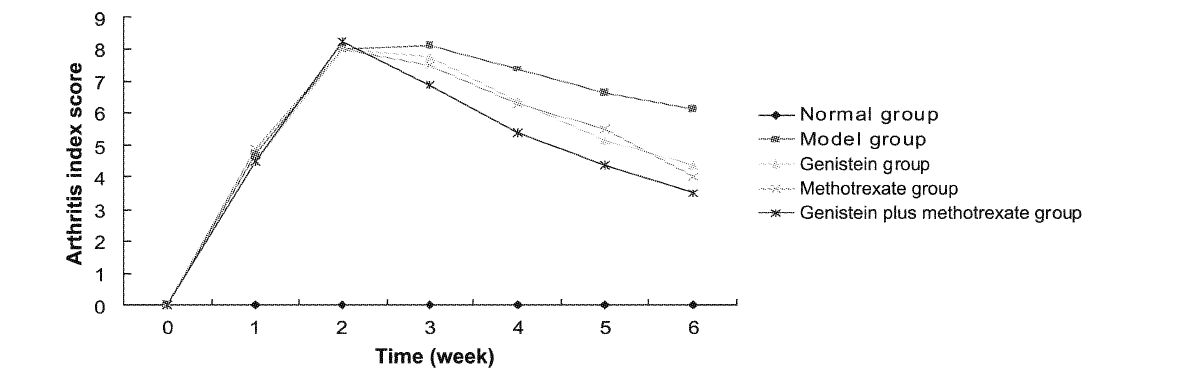

Figure 1

Arthritis index score of rats"

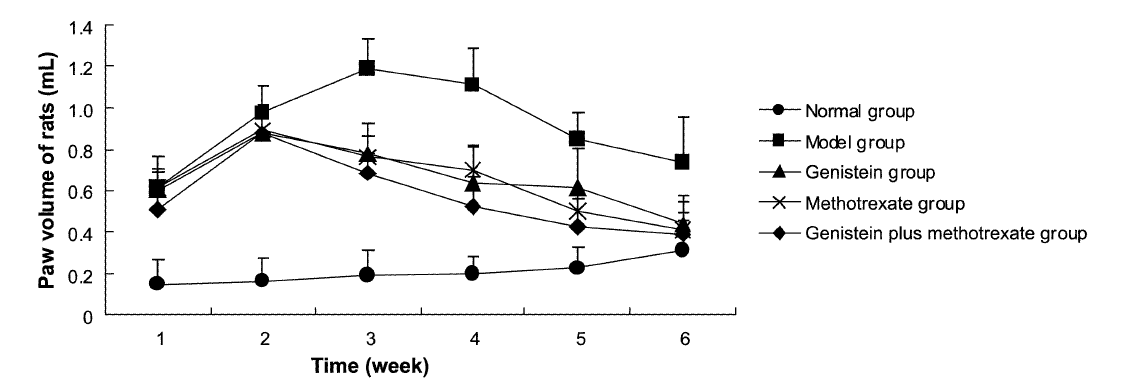

Figure 2

Paw volume of rats in different groups"


Figure 3

CD31-labeled microvessels in synovial tissue of rats observed by immunohistochemiscal method (Light microscopy, ×200) A: Normal group; B: Model group; C: Methotrexate group; D: Genistein group; E: Genistein plus methotrexate group. The pictures showed the numbers of microvessels in synovial tissues of the five groups. There were only two microvessels in the normal group, and the number of microvessels in the model group was the most. The number of microvessels in each treatment group was less than that in the model group, and the number of microvessels in the genistein plus methotrexate group was the least."

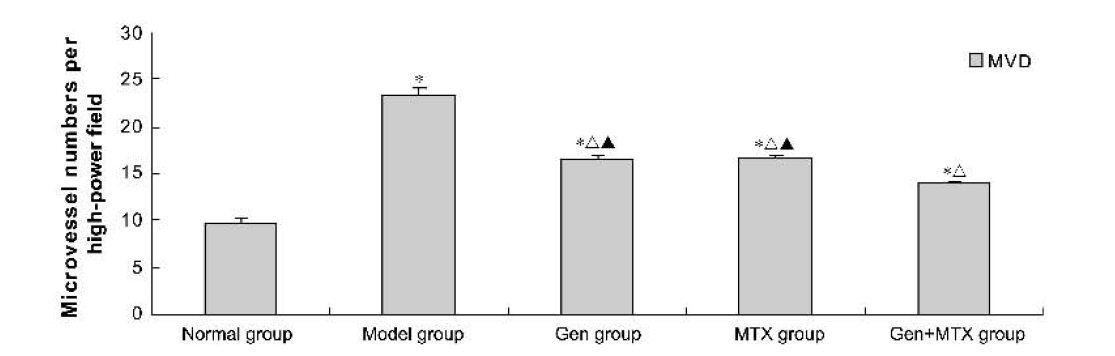

Figure 4

Microvessel density in synovial tissue of rats in different groups *P<0.05, vs normal group; △P<0.05, vs model group; ▲P<0.05, vs Gen+MTX group. Data were represented as x±s, n=8. Rats in each group were treated with normal saline (control and model group), 30 mg/(kg·d) genistein (Gen group), methotrexate at 0.2 mg/kg body weight (MTX group) or genistein plus methotrexate (Gen+MTX group) respectively for 6 weeks. After treatment, the synovial tissues were collected and observed by immunohistochemiscal method."

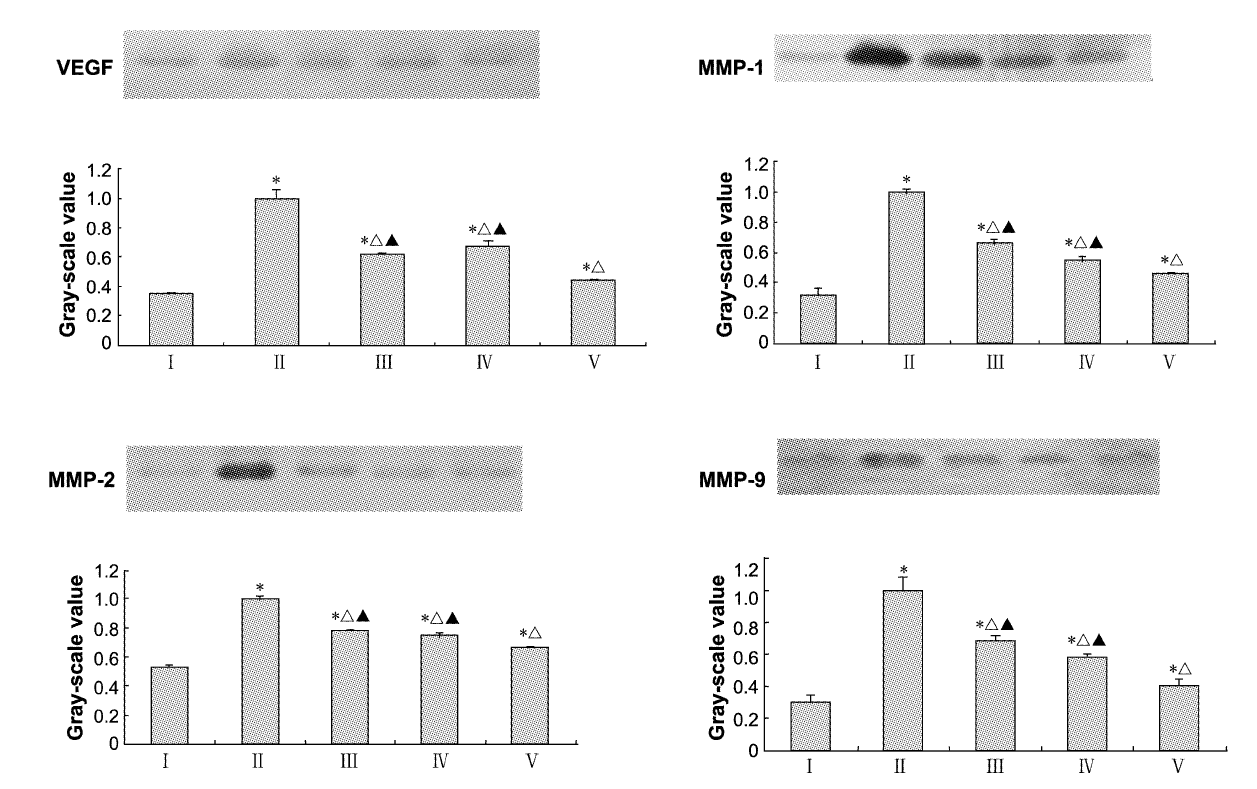

Figure 5

Serum levels of vascular endothelial growth factor and matrix metallopeptidase-1, 2 and 9 proteins of rats observed by Western blotting Ⅰ: Normal group; Ⅱ: Model group; Ⅲ: Gen group; Ⅳ: MTX group; Ⅴ: Gen+MTX group. *P<0.05, vs normal group; △P<0.05, vs model group; ▲P<0.05, vs Gen+MTX group. Data were represented as x±s, n=8. Rats in each group were treated with normal saline (control and model group), 30 mg/(kg·d) genistein (Gen group), methotrexate at 0.2 mg/kg body weight (MTX group) or genistein plus methotrexate (Gen+MTX group) respectively for 6 weeks. After treatment, the serum was collected and vascular endothelial growth factor and matrix metallopeptidase-1, 2 and 9 proteins in the serum were observed by Western blotting."

[1] McInnes IB, O’Dell JR . State-of-the-art: rheumatoid arthritis[J]. Ann Rheum Dis, 2010,69(11):1898-1906
doi: 10.1136/ard.2010.134684 pmid: 20959326
[2] Szekanecz Z, Koch AE . Angiogenesis and its targeting in rheumatoid arthritis[J]. Vascul Pharmacol, 2009,51(1):1-7
doi: 10.1016/j.vph.2009.02.002 pmid: 19217946
[3] McInnes IB, Schett G . Cytokines in the pathogenesis of rheumatoid arthritis[J]. Nat Rev Immunol, 2007,7(6):429-442
doi: 10.1038/nri2094
[4] Raffetto JD, Khalil RA . Matrix metalloproteinases and their inhibitors in vascular remodeling and vascular disease[J]. Biochem Pharmacol, 2008,75(2):346-359
doi: 10.1016/j.bcp.2007.07.004 pmid: 17678629
[5] Banerjee S, Li Y, Wang Z, Sarkar FH . Multi-targeted therapy of cancer by genistein[J]. Cancer Lett, 2008,269(2):226-242
doi: 10.1016/j.canlet.2008.03.052 pmid: 2575691
[6] Gao B, Zhang Y, Ma L, Zhang XZ . Effects of genistein on interleukin-1β and tumor necrosis factor-α secreted by fibroblast-like synoviocytes isolated from type Ⅱ collagen-induced arthritis rats[J]. J Chin Integr Med, 2009,7(7):636-641
doi: 10.3736/jcim20090707
高波, 张育, 马莉, 张学增 . 金雀异黄素对Ⅱ型胶原诱导型关节炎大鼠成纤维样滑膜细胞分泌白细胞介素1β和肿瘤坏死因子α的影响[J]. 中西医结合学报, 2009,7(7):636-641
doi: 10.3736/jcim20090707
[7] Cao C, Li S, Dai X, Chen Y, Feng Z, Zhao Y, Wu J . Genistein inhibits proliferation and functions of hypertrophic scar fibroblasts[J]. Burns, 2009,35(1):89-97
doi: 10.1016/j.burns.2008.03.011 pmid: 18976864
[8] Jin CY, Park C, Kim GY, Lee SJ, Kim WJ, Choi YH . Genistein enhances TRAIL-induced apoptosis through inhibition of p38 MAPK signaling in human hepatocellular carcinoma Hep3B cells[J]. Chem Biol Interact, 2009,180(2):143-150
doi: 10.1016/j.cbi.2009.03.020
[9] Wang J, Zhang Q, Jin S, He D, Zhao S, Liu S . Genistein modulate immune responses in collagen-induced rheumatoid arthritis model[J]. Maturitas, 2008,59(4):405-412
doi: 10.1016/j.maturitas.2008.04.003 pmid: 18499367
[10] Sumariwalla PF, Cao Y, Wu HL, Feldmann M, Paleolog EM . The angiogenesis inhibitor protease-activated kringles 1-5 reduces the severity of murine collagen-induced arthritis[J]. Arthritis Res Ther, 2003,5(1):R32-R39
doi: 10.1186/ar608
[11] Vencovsk J, Pavelka K, Ospelt C, Gay S . Prospective new biological therapies for rheumatoid arthritis[J]. Autoimmun Rev, 2009,9(2):102-107
doi: 10.1016/j.autrev.2009.03.010 pmid: 19328245
[12] Chang YH, Lin IL, Tsay GJ, Yang SC, Yang TP, Ho KT, Hsu TC, Shiau MY . Elevated circulatory MMP-2 and MMP-9 levels and activities in patients with rheumatoid arthritis and systemic lupus erythematosus[J]. Clin Biochem, 2008,41(12):955-959
doi: 10.1016/j.clinbiochem.2008.04.012
[13] Szekanecz Z, Besenyei T , Szentp tery A , Koch AE.Angiogenesis and vasculogenesis in rheumatoid arthritis[J]. Curr Opin Rheumatol, 2010,22(3):299-306
doi: 10.1097/BOR.0b013e328337c95a pmid: 20305562
[14] Akhavani MA, Madden L, Buysschaert I, Sivakumar B, Kang N, Paleolog EM . Hypoxia upregulates angiogenesis and synovial cell migration in rheumatoid arthritis[J]. Arthritis Res Ther, 2009,11(3):R64
doi: 10.1186/ar2689
[15] Moreland LW, Curtis JR . Systemic nonarticular manifestations of rheumatoid arthritis: focus on inflammatory mechanisms[J]. Semin Arthritis Rheum, 2009,39(2):132-143
doi: 10.1016/j.semarthrit.2008.08.003
[16] Maciejewska-Rodrigues H, Karouzakis E, Strietholt S, Hemmatazad H, Neidhart M, Ospelt C, Gay RE, Michel BA, Pap T, Gay S, Jüngel A . Epigenetics and rheumatoid arthritis: the role of SENP1 in the regulation of MMP-1 expression[J]. J Autoimmun, 2010,35(1):15-22
doi: 10.1016/j.jaut.2009.12.010
[17] Chia WT, Lin CF, Yeh LT, Sytwu HK . A noncontact footpad thickness assay to evaluate rheumatoid disease[J]. Rheumatol Int, 2010,30(4):547-550
doi: 10.1007/s00296-009-1261-4 pmid: 20016989
[18] Sha GH, Lin SQ . Genistein inhibits proliferation of human endometrial endothelial cell in vitro[J]. Chin Med Sci J, 2008,23(1):49-53
doi: 10.1016/S1001-9294(09)60010-9 pmid: 18437911
