Journal of Chinese Integrative Medicine ›› 2011, Vol. 9 ›› Issue (7): 783-788.doi: 10.3736/jcim20110713

• Original Experimental Research • Previous Articles     Next Articles

Effects of Chinese herbal medicine Liuwei Dihuang Pill and its main monomer catalpol on transforming growth factor-β1/Smad pathway in HK-2 cells

Yu-min Liu1, Yue Zhang2(), Yan-peng Hao1, Zhi-jie Li1

  1. 1. Experiment Center for Science and Technology, Shanghai University of Traditional Chinese Medicine, Shanghai 201203, China
    2. Basic Medical College, Shanghai University of Traditional Chinese Medicine, Shanghai 201203, China
  • Received:2010-11-04 Accepted:2011-04-12 Online:2011-07-20 Published:2018-10-14

RichHTML

1

PDF (PC)

127

Like

Objective: To observe the effects of sera containing Liuwei Dihuang Pill (LDP), a compound traditional Chinese herbal medicine, and its monomer catalpol on transforming growth factor-β1 (TGF-β1)/Smad pathway in HK-2 cells.
Methods:Wistar rats were intragastrically administered with LDP twice daily for 3 days and then sera were obtained. HK-2 cells were cultured at different concentrations of serum containing LDP. Lactate dehydrogenase (LDH) activity in the medium and cell activity, tested by methyl thiazolyl tetrazolium (MTT) method, were combined to determine the best concentration of the pill. Hepatocyte growth factor (HGF) was used as a positive control, while Western blotting was applied to observe the effects of sera containing LDP and catalpol on Smad2 phosphorylation and protein expressions of Smad2, Smad7 and SnoN.
Results: The 10% concentration of serum containing LDP was selected to carry out this study, as it showed no change of LDH activity in the medium and vitality of cells cultured with serum from normal rats. Similar to the mechanisms of HGF, the 10% concentration of serum containing LDP significantly inhibited the phosphorylation of Smad2 protein and up-regulated the expression of the Smad transcriptional co-repressor SnoN in TGF-β1-stimulated HK-2 cells. Catalpol inhibited phoshporylation of Smad2 without affecting SnoN protein expression. Neither serum containing LDP nor catalpol showed typical regulation effects on Smad7 expression in TGF-β1-stimulated HK-2 cells.
Conclusion: Serum containing LDP at 10% concentration has a potent antagonistic action on TGF-β1/Smad pathway in TGF-β1-stimulated HK-2 cells, which is similar to HGF. Catalpol is one of the most important monomers that plays a key role in LDP.

Key words: drugs,Chinese herbal, Liuwei Dihuang pill, Chinese herb main monomers, hepatocyte growth factor, HK-2 cells, Smad proteins

Table 1

Effects of different concentrations of sera on HK-2 cell proliferation at 48 h ($\bar{x}$±s)"

Group n Optical density
Normal serum
5% 3 0.68±0.16
10% 3 0.76±0.12
20% 3 0.88±0.19
Liuwei Dihuan Pill-containing serum
5% 3 0.82±0.12*
10% 3 0.83±0.15
20% 3 0.83±0.14

Table 2

Effects of different concentrations of sera on HK-2 cell leaking LDH at 48 h ($\bar{x}$±s, IU/L)"

Group n LDH
5% Liuwei Dihuan Pill-containing serum 5 213.40±10.26
10% Liuwei Dihuan Pill-containing serum 5 220.40±22.90
20% Liuwei Dihuan Pill-containing serum 5 376.00±26.60*

Figure 1

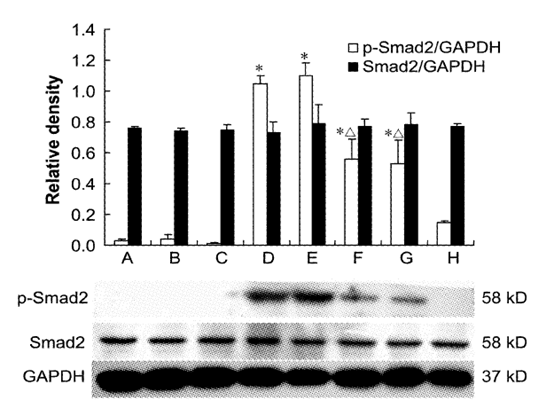

Effects of medicated serum with LDP on phosphorylation of Smad2 observed by Western blotting A: Control group; B: Normal serum group; C: Liuwei Dihuang Pill-containing serum group; D: TGF-β1 group; E: Normal serum plus TGF-β1 group; F: Liuwei Dihuang Pill-containing serum plus TGF-β1 group; G: HGF plus TGF-β1 group; H: HGF group. *P<0.05, vs control group; △P<0.05, vs TGF-β1 group. TGF-β1: transforming growth factor-β1; Smad: Sma- and Mad-related protein; HGF: hepatocyte growth factor; LDP: Liuwei Dihuang Pill."

Figure 2

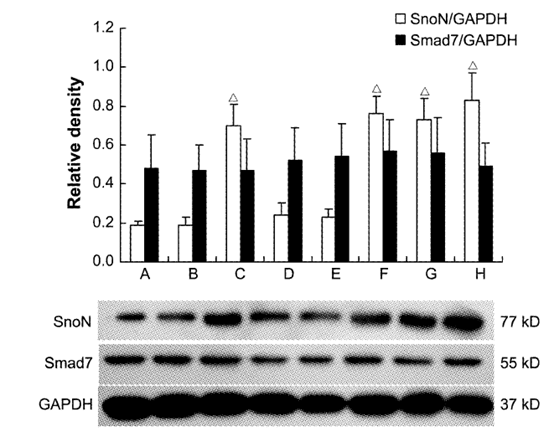

Effects of medicated serum with LDP on Smad7 and SnoN protein expressions observed by Western blotting A: Control group; B: Normal serum group; C: Liuwei Dihuang Pill-containing serum group; D: TGF-β1 group; E: Normal serum plus TGF-β1 group; F: Liuwei Dihuang Pill-containing serum plus TGF-β1 group; G: HGF plus TGF-β1 group; H: HGF group. △P<0.05, vs TGF-β1 group. TGF-β1: transforming growth factor-β1; Smad: Sma- and Mad-related protein; HGF: hepatocyte growth factor; LDP: Liuwei Dihuang Pill."

Figure 3

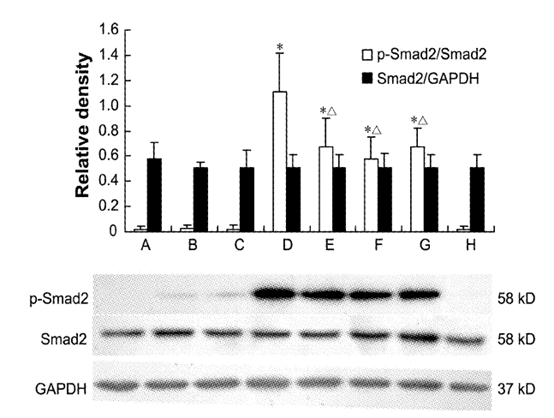

Effects of catalpol at different concentrations on phosphorylation of Smad2 observed by Western blotting A: Control group; B: Low-dose catalpol group; C: High-dose catalpol group; D: TGF-β1 group; E: Low-dose catalpol plus TGF-β1 group; F: High-dose catapol plus TGF-β1 group; G: HGF plus TGF-β1 group; H: HGF group. *P<0.05, vscontrol group; △P<0.05, vs TGF-β1 group. TGF-β1: transforming growth factor-β1; Smad: Sma- and Mad-related protein; HGF: hepatocyte growth factor."

Figure 4

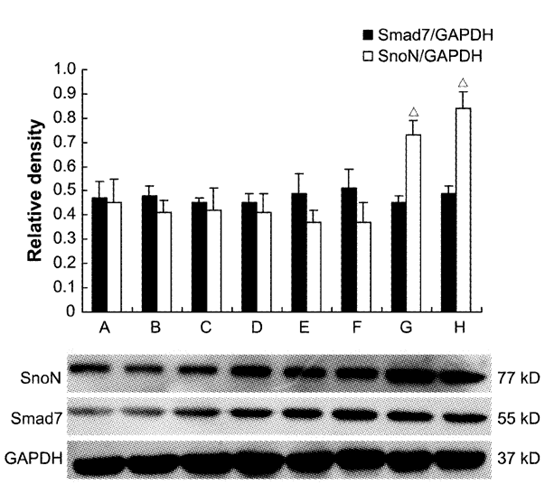

Effects of catalpol at different concentrations on Smad7 and SnoN protein expressions observed by Western blotting A: Control group; B: Low-dose catalpol group; C: High-dose catalpol group; D: TGF-β1 group; E: Low-dose catalpol plus TGF-β1 group; F: High-dose catalpol plus TGF-β1 group; G: HGF plus TGF-β1 group; H: HGF group. △P<0.05, vsTGF-β1 group. TGF-β1: transforming growth factor-β1; Smad: Sma- and Mad-related protein; HGF: hepatocyte growth factor."

[1] Jinde K, Nikolic-Paterson DJ, Huang XR, Sakai H, Kurokawa K, Atkins RC, Lan HY . Tubular phenotypic change in progressive tubulointerstitial fibrosis in human glomerulonephritis[J]. Am J Kidney Dis, 2001,38(4):761-769
doi: 10.1053/ajkd.2001.27693 pmid: 11576879
[2] Zhou J, Wang F, Lu HY, Zhang Y . Impact of salvianolic acid-B on TGF-β1-induced HK-2 epithelial-mesenchymal transition[J]. Zhongguo Zhong Yao Za Zhi, 2010,35(1):89-93
doi: 10.4268/cjcmm20100119
周娟, 王飞, 陆海英, 张悦 . 丹参酚酸B盐对TGF-β1诱导的HK-2上皮-间充质转分化的影响[J]. 中国中药杂志, 2010,35(1):89-93
doi: 10.4268/cjcmm20100119
[3] Liu Q, Zhou YL, Pei Q, Yang L, Liu SK . Protection of Liuwei Dihuang pill on diabetic nephropathy in rats[J]. Hunan Zhong Yi Yao Da Xue Xue Bao, 2007,27(6):40-43
刘卿, 周于禄, 裴奇, 阳璐, 刘世坤 . 六味地黄丸对糖尿病肾病大鼠肾脏保护作用的研究[J]. 湖南中医药大学学报, 2007,27(6):40-43
[4] Iwama H, Amagaya S, Ogihara Y . Effect of Shaosaikoto, a Japanese and Chinese traditional herbal medicinal mixture, on the mitogenic activity of lipopolysaccharide: a new pharmacological testing method[J]. J Ethnopharmacol, 1987,21(1):45-53
doi: 10.1016/0378-8741(87)90093-6
[5] Wang WJ, Li DJ, Li J, Zhou WJ . An in vitro study on neuroprotective effects of serum containing Gengnianchun decoction and its main monomers against amyloid beta protein induced cellular toxicity[J]. J Chin Integr Med, 2010,8(1):67-73
doi: 10.3736/jcim20100113
王文君, 李大金, 李君, 周文江 . 中药复方更年春含药血清及其主要单体对β淀粉样蛋白所致细胞损伤的保护作用[J]. 中西医结合学报, 2010,8(1):67-73
doi: 10.3736/jcim20100113
[6] Li J, Li B, Zhou WJ, Zhao FG, Li DJ, Wang WJ . Medicated rat serum containing Gengnianchun decoction reduces apoptosis of pheochromocytoma cells insulted by amyloid beta protein[J]. J Chin Integr Med, 2010,8(5):472-479
李君, 李斌, 周文江, 赵凡桂, 李大金, 王文君 . 中药更年春含药血清对β淀粉样蛋白诱导的PC12细胞凋亡的影响[J]. 中西医结合学报, 2010,8(5):472-479
[7] Okada H, Danoff TM, Kalluri R, Neilson EG . Early role of Fsp1 in epithelial-mesenchymal transformation[J]. Am J Physiol, 1997,273(4):F563-F574
doi: 10.1016/S0272-6386(97)90247-X pmid: 9362334
[8] Böttinger EP , Bitzer M.TGF-beta1 signaling in renal disease[J]. J Am Soc Nephrol, 2002,13(10):2600-2610
doi: 10.1097/01.ASN.0000033611.79556.AE
[9] Liu Y . Hepatocyte growth factor in kidney fibrosis: therapeutic potential and mechanisms of action[J]. Am J Physiol Renal Physiol, 2004,287(1):F7-F16
doi: 10.1152/ajprenal.00451.2003 pmid: 15180923
[10] Yang J, Dai C, Liu Y . A novel mechanism by which hepatocyte growth factor blocks tubular epithelial to mesenchymal transition[J]. J Am Soc Nephrol, 2005,16(1):68-78
[11] Wang HJ, Jin YH, Li PY, Li LH, Bian BL . Comparison of 3 active constitutents of fresh, raw, and prepared rehmannias roots[J]. Zhongguo Zhong Yao Za Zhi, 2008,33(15):1923-1925
王宏洁, 金亚红, 李鹏跃, 李丽华, 边宝林 . 鲜、生、熟地黄药材中3种活性成分含量的比较[J]. 中国中药杂志, 2008,33(15):1923-1925
