Journal of Chinese Integrative Medicine ›› 2010, Vol. 8 ›› Issue (12): 1165-1173.doi: 10.3736/jcim20101209

• Original Experimental Research • Previous Articles     Next Articles

Effects of Chinese herbal medicine Yiqi Huoxue Formula on TGF-p/smad signal transduction pathway and connective tissue growth factor in rats with renal interstitial fibrosis

Yong-mei LiuaRui-hua Liua,Wen-jun Liua, Li Liub, Zhi-kui Wua,Yu-ying Chena

  1. Department of Molecular Biology, Guang’nmen Hospital, China Academy of Chinese Medical Sciences, Beijing 100053, China
    b Department of Anatomy and Histology, Capital Medical University, Beijing 100069, China
  • Received:2010-05-18 Accepted:2010-08-17 Online:2010-12-20 Published:2010-12-15
  • Contact: Wen-jun Liu E-mail:liuwenjunlyzh@263.net

Objective

 To observe the effects of Yiqi Huoxue Formula (YQHXF), a compound Chinese herbal medicine, on transforming growth factor-β (TGF-β)/smad signal transduction pathway and connective tissue growth factor (CTGF) in rats with renal interstitial fibrosis.

Methods

Unilateral ureteral obstruction (UUO) rat model was established and the rats were randomly divided into 5 groups: untreated group, high-, medium-, and low-dose YQHXF groups and fosinopril sodium group. Another group with sham operation was set as control. All rats were administered with corresponding drugs for 3 weeks. After the last administration, each rat was sacrificed and weighed and the serum was separated for creatinine (Cr) and blood urea nitrogen (BUN) detection. Kidneys of the rats were taken out, and mRNA and protein expressions of TGF-β, smad2, smad7 and CTGF were measured with real-time fluorescent quantitative reverse transcription-polymerase chain reaction and Western blotting respectively; fibrosis of the kidney tissue was observed with hematoxylin-eosin (HE) staining and Masson trichrome staining.

Results

Compared with sham-operation group, Cr and BUN in serum of UUO groups were increased, while high-dose YQHXF treatment decreased the UUO-induced increase of Cr and BUN levels. HE staining and Masson staining results showed that the renal tubular epithelial cells in untreated group got atrophied; lumens of renal tubules expanded; fibroplastic proliferation and inflammatory cell infiltration were observed in renal interstitium; the number of glomerulus decreased and collagen increased significantly compared with sham-operation group. In the high- and medium-dose YQHXF groups and fosinopril sodium group, the histopathological changes of inflammatory cell infiltration, fibroplastic proliferation, expansion of lumens of renal tubules was improved as compared with the untreated group. The mRNA and protein expressions of TGF-β, smad2 and CTGF in untreated group were higher than those in sham-operation group (P<0.05), and the mRNA and protein expressions of smad7 in untreated group were lower than those in the sham-operation group (P<0.05). Compared with untreated group, high- and medium-dose of YQHXF significantly down-regulated the mRNA and protein expressions of TGF-β, smad2 and CTGF (P<0.01, P<0.05), and up-regulated the mRNA and protein expressions of smad7 (P<0.01, P<0.05).

Conclusions

The mRNA expression of CTGF in UUO rats may be regulated by TGF-β/smad signaling transduction pathway. YQHXF might inhibit the expression of CTGF through down-regulation of TGF-β and smad2 and up-regulation of smad7, thus inhibiting the progression of renal interstitial fibrosis.

Key words: Compounds (TCD), Transforming growth factor-beta, Smad proteins, Connective tissue growth factor, Renal interstitial fibrosis, Rats

Table 1

Forward and reverse primers used for real-time fluorescent quantitative reverse transcription PCR"

Table 2

Results of body weight, Cr and BUN of rats $\overline{x}$±s"

Group n Body weight (g) Cr (jumol/L) BUN (mmol/L)
Sham-opreation 6 332. 20±38. 64 61. 00±6. 14 9. 72±1. 14
Untreated 6 342. 00±31.68 68. 13±10. 40 11.07±1.07
High-dose YQHXF 6 351. 10±23. 15 62. 64±4. 57 10. 27±0. 76
Medium-dose YQHXF 6 354. 00±12. 65 73.46±12. 86 11. 77±2. 14
Low-dose YQHXF 6 346. 33±34. 85 71.52±12. 82 11. 50±1. 69
Fosinopril sodium 6 356. 10±23. 81 68. 31±12. 10 11.46±1.82

Figure 1

Pathological changes of kidney in different groups observed by HE staining (Light microscopy, ×200)A: Sham-operation group; B: Untreated group; C: Fosinopril sodium group; D: High-dose YQHXF group; E: Medium-dose YQHXF group; F: Low-dose YQHXF group."

Figure 2

Pathological changes of kidney in different groups observed by Masson staining (Light microscopy, ×200) A: Sham-operation group; B: Untreated group; C: Fosinopril sodium group; D: High-dose YQHXF group; E: Medium-dose YQHXF group; F: Low-dose YQHXF group."

Table 3

Expressions of TGF-β, smad2, smad7 and CTGF mRNAs in kidney tissue of rats in different groups"

$\overline{x}$±s
Group n TGF-p smad2 smad7 CTGF
Sham-opreation 6 5, IS土0, 72 7, 90 土 1,71 3, 70 土 1,54 18,23 士 7,48
Untreated 6 8,35土3,01 ? 15, 69 土 7,38 ? 1,45 土 0,95 ? 26,28土2,02?
High-dose YQHXF 6 3,54±1,34AA 9,85 土 4,29 3,35±0,48AA 19,91±5,00A
Medium-dose YQHXF 6 3,02±0,47AA 7,40土0,93心 2,06士2,58心 H,18 士 4,37AA
Low-dose YQHXF 6 4,03土1,4私 7,33土2,55么 1,13 士 0,92 U,82±7,32AA
Fosinopril sodium 6 5,〇5±2,〇5A 15,89 土 6,55 2, 61 土0,的 19,10±S,17A

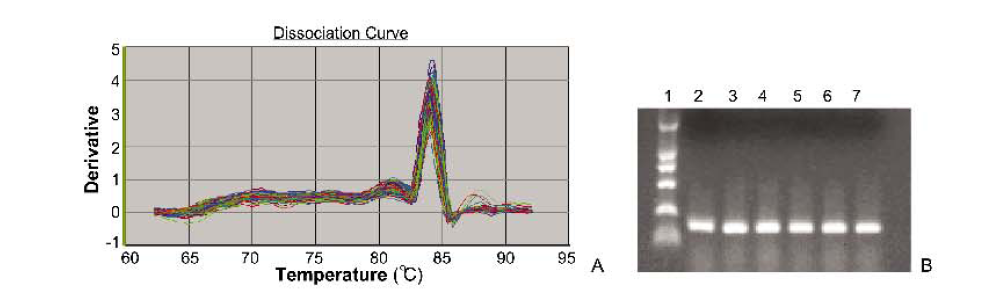

Figure 3

Dissociation curves for β-actin PCR reactions (A) and agarose electrophoresis analysis (B) 1: DNA DL 2 000 Maker; 2: Sham-operation group; 3: Untreated group; 4: High-dose YQHXF group; 5: Medium-dose YQHXF group; 6: Low-dose YQHXF group; 7: Fosinopril sodium group."

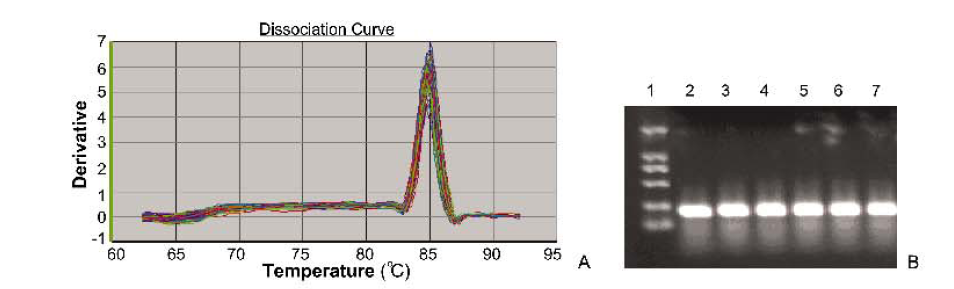

Figure 4

Dissociation curves for TGF-β PCR reactions (A) and agarose electrophoresis analysis (B) 1: DNA DL 2 000 Maker; 2: Sham-operation group; 3: Untreated group; 4: High-dose YQHXF group; 5: Medium-dose YQHXF group; 6: Low-dose YQHXF group; 7: Fosinopril sodium group."

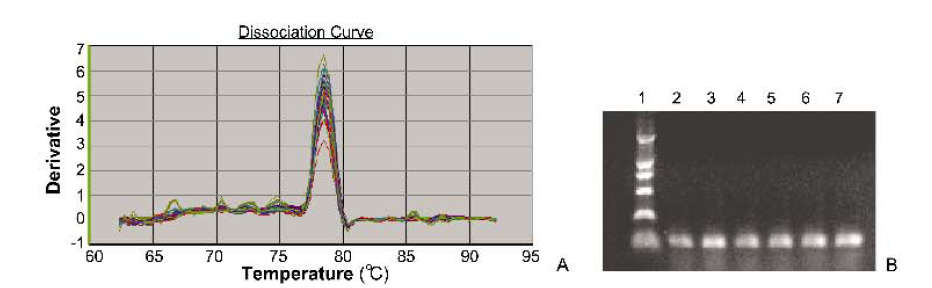

Figure 5

Dissociation curves for smad2 PCR reactions (A) and agarose electrophoresis analysis (B) 1: DNA DL 2 000 Maker; 2: Sham-operation group; 3: Untreated group; 4: High-dose YQHXF group; 5: Medium-dose YQHXF group; 6: Low-dose YQHXF group; 7: Fosinopril sodium group."

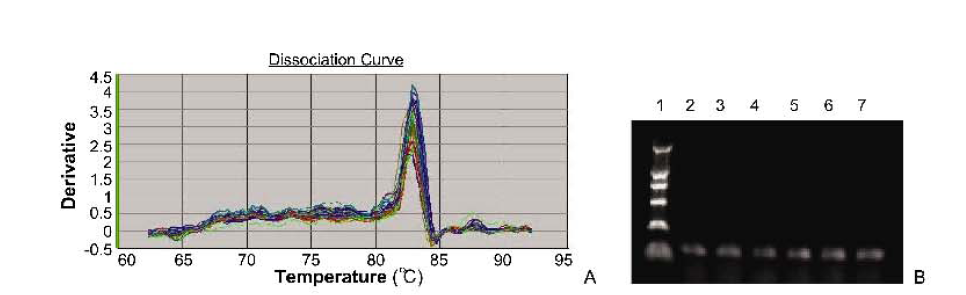

Figure 6

Dissociation curves for smad7 PCR reactions (A) and agarose electrophoresis analysis (B) 1: DNA DL 2 000 Maker; 2: Sham-operation group; 3: Untreated group; 4: High-dose YQHXF group; 5: Medium-dose YQHXF group; 6: Low-dose YQHXF group; 7: Fosinopril sodium group."

Figure 7

Dissociation curves for CTGF PCR reactions (A) and agarose electrophoresis analysis (B) 1: DNA DL 2 000 Maker; 2: Sham-operation group; 3: Untreated group; 4: High-dose YQHXF group; 5: Medium-dose YQHXF group; 6: Low-dose YQHXF group; 7: Fosinopril sodium group."

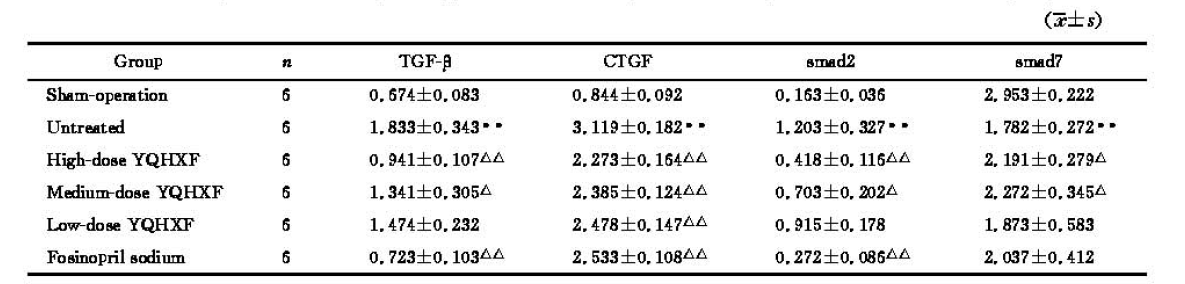

Table 4

Expressions of CTGF, TGF-β, smad2 and smad7 proteins in kidney tissue of rats in different groups"

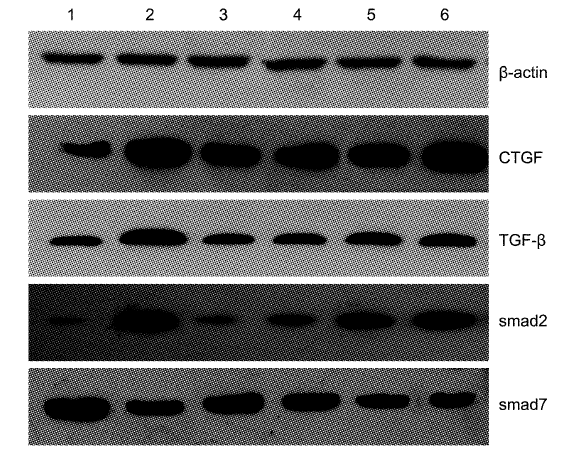

Figure 8

Protein expressions of CTGF, TGF-β, smad2 and smad7 in renal tissues of rats in different groups 1: Sham-operation group; 2: Untreated group; 3: Fosinopril sodium group; 4: High-dose YQHXF group; 5: Medium-dose YQHXF group; 6: Low-dose YQHXF group."

[1] Yokoi H, Mukoyama M, Sugawara A, Mori K, Nagae T, Makino H, Suganami T, Yahata K, Fujinaga Y, Tanaka I, Nakao K . Role of connective tissue growth factor in fibronectin expression and tubulointerstitial fibrosis. Am[J] Physiol Renal Physiol. 2002; 282(5):F933-F942.
doi: 10.1152/ajprenal.00122.2001
[2] Chea SW, Lee KB . TGF-beta mediated epithelial- mesenchymal transition in autosomal dominant polycystic kidney disease. Yonsei MedJ. 2009; 50(1):105-111.
doi: 10.3349/ymj.2009.50.1.105
[3] Brown KA, Ham AJ, Clark CN, Meller N, Law BK, Chytil A, Cheng N, Pietenpol JA, Moses HL . Identification of novel Smad2 and Smad3 associated proteins in response to TGF-betal.[J] Cell Biochem. 2008; 105(2):596-611.
doi: 10.1002/jcb.v105:2
[4] Zuccato C, Bianchi N, Borgatti M, Lampronti I, Massei F, Favre C, Gambari R . Everolimus is a potent inducer of erythroid differentiation and gamma-globin gene expression in human erythroid cells. Acta Haematol. 2007; 117(3) : 168-176.
doi: 10.1159/000097465
[5] Liu Y . Renal fibrosis: new insights into the pathogenesis and therapeutics. Kidney Int. 2006; 69(2) : 213-217.
doi: 10.1038/sj.ki.5000054
[6] Schiffer M, Schiffer LE, Gupta A, Shaw AS, Roberts IS, Mundel P, Bottinger EP . Inhibitory Smads and TGF-p signaling in glomerular cells.[J] Am Soc Nephrol. 2002; 13(11) : 2657-2666.
doi: 10.1097/01.ASN.0000033276.06451.50
[7] Goto Y, Manabe N, Uchio-Yamada K, Yamaguchi- Yamada M, Inoue N, Yamamoto Y, Ogura A, Nagano N, Miyamoto H . Augmented cytoplasmic Smad4 induces acceleration of TGF-betal signaling in renal tubulointerstitial cells of hereditary nephrotic ICGN mice with chronic renal fibrosis; possible role for myofibroblastic differentiation. Cell Tissue Res. 2004; 315(2):209-221.
doi: 10.1007/s00441-003-0824-z
[8] Fukasawa H, Yamamoto T, Suzuki H, Togawa A , OhashiN,Fujigaki Y,Uchida C,Aoki M,Hosono M,Kitagawa M,Hishida A . Treatment with anti-TGF- beta antibody ameliorates chronic progressive nephritis by inhibiting Smad/TGF-beta signaling. Kidney Int. 2004; 65(1) : 63-74.
doi: 10.1111/j.1523-1755.2004.00393.x
[9] Blom IE, van Dijk AJ, Wieten L, Duran K, I to Y, Kleij L, deNichilo M, Rabelink TJ, Weening JJ, Aten J, Goldschmeding R . In vitro evidence for differential involvement of CTGF, TGF beta, and PDGF-BB in mesangial response to injury. Nephrol Dial Transplant. 2001; 16(6) : 1139-1148.
doi: 10.1093/ndt/16.6.1139
[10] Duncan MR, Frazier KS, Abramson S, Williams S, Klapper H, Huang X, Grotendorst GR . Connective tissue growth factor mediates transforming growth factor beta- induced collagen synthesis: down-regulation by c AMP. FASEBJ. 1999; 13(13):1774-1786.
doi: 10.1096/fasebj.13.13.1774
[11] Chen MM, Lam A, Abraham JA, Schreiner GF, Joly AH . CTGF expression is induced by TGF-beta in cardiac fibroblasts and cardiac myocytes : a potential role in heart fibrosis.[J] Mol Cell Cardiol. 2000; 32(10) : 1805-1819.
doi: 10.1006/jmcc.2000.1215
[12] Yang J, Dai C, Liu Y . Hepatocyte growth factor suppresses renal interstitial myofibroblast activation and intercepts Smad signal transduction. Am[J] Pathol. 2003; 163(2):621-632.
[13] Nakao A, Afrakhte M, Moren A, Nakayama T, Christian JL, Heuchel R, Itoh S, Kawabata M, Heldin NE , Heldin CH, ten Dijke P. Identification of Smad7, a TGFbeta-inducible antagonist of TGF-beta signalling. Nature. 1997; 389(6651):631-635.
doi: 10.1038/39369
[14] Imamura T, Takase M, Nishihara A, Oeda E , Hanai J, Kawabata M, Miyazono K . Smad6 inhibits signalling by the TGF-beta superfamily. Nature. 1997 ; 389(6651):622-626.
doi: 10.1038/39355
