Journal of Chinese Integrative Medicine ›› 2012, Vol. 10 ›› Issue (4): 454-461.doi: 10.3736/jcim20120415

Previous Articles     Next Articles

Salvianolic acid B inhibits ERK signal transduction pathway activated by transforming growth factor-β1 in rat hepatic stellate cells

Ya-fang Song1,2,3, Zhi-gang Lü1,2, Lie-ming Xu1,2,4,5()

  1. 1. Department of Liver Cirrhosis, Shuguang Hospital, Shanghai University of Traditional Chinese Medicine, Shanghai 201203, China
    2. Institute of Liver Diseases, Shanghai University of Traditional Chinese Medicine, Shanghai 201203, China
    3. Institue of Stomach and Spleen Diseases, Guangzhou University of Chinese Medicine, Guangzhou 510405, Guangdong Province, China
    4. Key Laboratory of Liver and Kidney Diseases, Shanghai 201203, China
    5. Key Laboratory of Clinical Traditional Chinese Medicine, Shanghai 201203, China
  • Received:2011-08-18 Accepted:2011-09-15 Online:2012-04-20 Published:2018-04-15

Objective: To investigate the effects of salvianolic acid B (SA-B) on extracellular signal-regulated kinase (ERK) signal transduction pathway activated by transforming growth factor-β1 (TGF-β1) in rat hepatic stellate cells (HSCs).
Methods: HSCs were isolated from male Sprague-Dawley rats by in situ perfusion and Nycodenz density-gradient centrifugation method. TGF-β1 and SA-B were directly added to the serum-free medium of HSCs. Total and phosphorylated ERK, MEK, Raf and α-smooth muscle actin (α-SMA) and typeⅠcollagen were assayed by Western blotting.
Results: Phosphorylation of MEK in HSCs with or without TGF-β1 was inhibited by SA-B; however, phosphorylation of Raf in HSCs with or without TGF-β1 was not inhibited by SA-B. Expression of α-SMA in HSCs with TGF-β1 was inhibited by SA-B. Combination of SA-B and the inhibitors of ERK (PD98059) can effectively inhibit the expression of α-SMA. SA-B also inhibited synthesization of typeⅠcollagen in HSCs with or without TGF-β1.
Conclusion: The action point of SA-B inhibiting ERK signaling induced by TGF-β1 in HSCs is the inhibition of the phosphorylation of MEK. SA-B reduces the increase of expression of α-SMA and protein synthesization of type Ⅰ collagen induced by TGF-β1 by means of inhibiting ERK signaling in activated HSCs of rats.

Key words: salvianolic acid B, hepatic stellate cells, transforming growth factor-β1, extracellular signal-regulated MAP kinases, rats

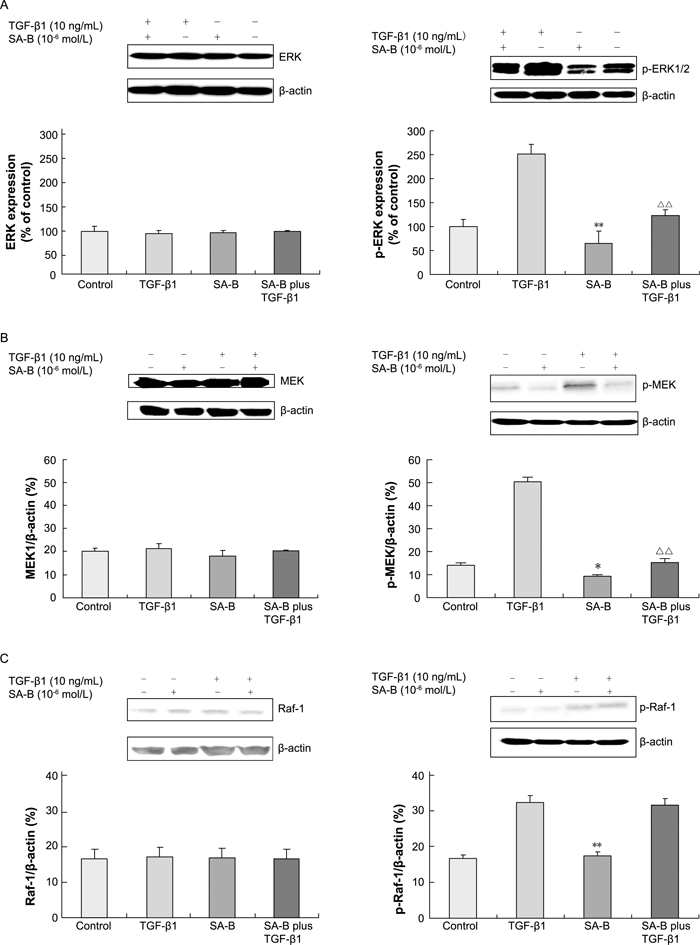

Figure 1

Expressions of ERK and p-ERK1/2, MEK and p-MEK, and Raf-1 and p-Raf-1 in HSCs The levels of ERK and p-ERK1/2, MEK and p-MEK and Raf-1 and p-Raf-1 were determined by Western blot using specific antibodies. Loading control β-actin was determined by Western blot analysis as indicated. Data are expressed as percentage of the control or β-actin; n=3; *P<0.05, **P<0.01, vs control group; △△P<0.01, vs TGF-β1 group. A: Expression of ERK and p-ERK1/2 in HSC. B: Expression of MEK and p-MEK in HSC. C: Expression of Raf-1 and p-Raf-1 in HSC. SA-B: salvianolic acid-B; HSC: hepatic stellate cell; TGF-β1: transforming growth factor-β1; ERK: extracellular signal-regulated kinase."

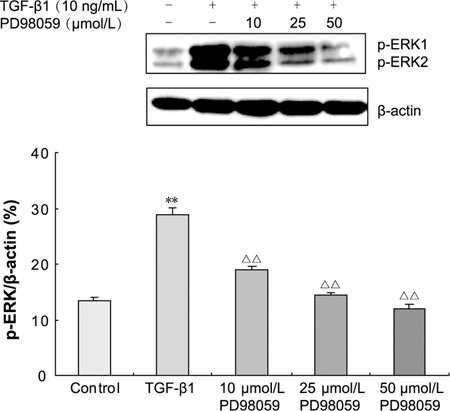

Figure 2

Effects of different concentrations of PD98059 on the phosphorylation of ERK in HSCs The levels of p-ERK were determined by Western blot using specific antibodies. Data are expressed as percentage of the control; n=3; **P<0.01, vs control group; △△P<0.01, vsTGF-β1 group. HSC: hepatic stellate cell; TGF-β1: transforming growth factor-β1; ERK: extracellular signal-regulated kinase."

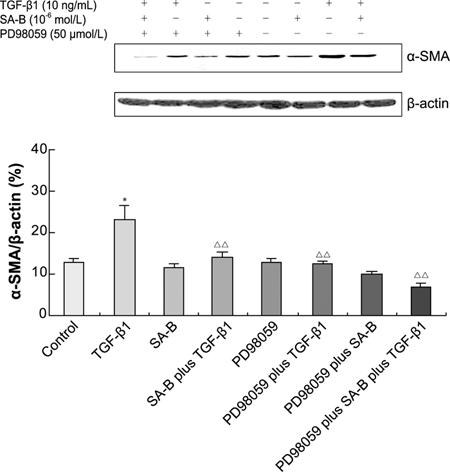

Figure 3

Effects of SA-B and PD98059 on the expression of α-SMA in HSCs The levels of α-SMA protein were determined by Western blotting using specific antibodies. Data are expressed as percentage of the β-actin; n=3; *P<0.05, vs control group; △△P<0.01, vs TGF-β1 group. SA-B: salvianolic acid-B; HSC: hepatic stellate cell; TGF-β1: transforming growth factor-β1; α-SMA: α-smooth muscle actin."

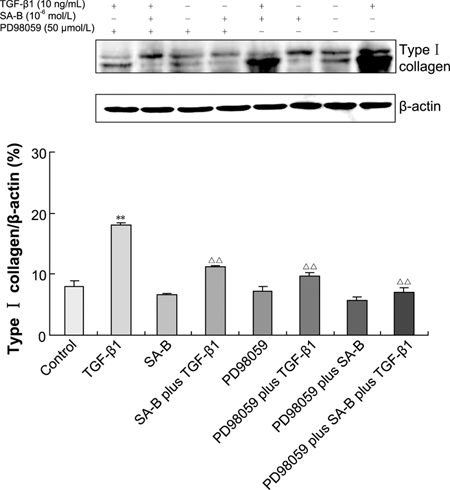

Figure 4

Expression of type Ⅰ collagen in HSCs in each group The levels of type Ⅰ collagen were determined by Western blotting using specific antibodies. Data are expressed as percentage of the β-actin; n=3; **P<0.01, vs control group; △△P<0.01, vs TGF-β1 group. SA-B: salvianolic acid-B; HSC: hepatic stellate cell; TGF-β1: transforming growth factor-β1."

[1] Leask A . Signaling in fibrosis: targeting the TGF p, endothelin-1 and CCN2 axis in scleroderma. Front Biosci (Elite Ed). 2009; 1:115-122.
[2] Sebe A, Leivonen SK, Fintha A, Masszi A, Rosivall L, Kahari VM, Mucsi I . Transforming growth factory-induced alpha-smooth muscle cell actin expression in renal proximal tubular cells is regulated by p38β mitogen- activated protein kinase, extracellular signal-regulated protein kinase 1,2 and the Smad signalling during epithelial- myofibroblast transdifferentiation. Nephrol Dial Transplant. 2008; 23(5):1537-1545.
doi: 10.1093/ndt/gfm789
[3] Phanish MK, Wahab NA, Hendry BM, Dockrell ME . TGF-pi-induced connective tissue growth factor ( CCN2) expression in human renal proximal tubule epithelial cells requires Ras/MEK/ERK and Smad signalling. Nephron Exp Nephrol. 2005; 100(4): el56-el65.
[4] Jiang MD, Zheng SM, Xu H, Zeng WZ, Zhang Y, Sun HP, Wang YX, Qin JP, Wu XL . An experimental study of extracellular signal-regulated kinase and its interventional treatments in hepatic fibrosis. Hepatobiliary Pancreat Dis Int. 2008; 7(1):51-57.
[5] Gao R, Ball DK, Perbal B, Brigstock DR . Connective tissue growth factor induces c-fos gene activation and cell proliferation through p44/42 MAP kinase in primary rat hepatic stellate cells.J Hepatol. 2004; 40(3):431-438.
doi: 10.1016/j.jhep.2003.11.012
[6] Tian T, Xu LM . Effects of Salviae miltiorrhizae and salvianolic acid B on microcirculation of liver in mice with portal hypertension. J Chin Integr Med. 2009; 7 (2) : 151-156. Chinese with abstract in English.
田甜, 徐列明 . 丹参及其组分丹参酚酸B盐对门静脉高压小鼠肝脏微循环的影响.中西医结合学报. 2009; 7(2):151-156.
[7] Zhou Y, Gu J, Xu LM . Effect and mechanism of salvianolic acid B in attenuating elevated portal pressure in a rat model of portal hypertension induced by endothelin-1. J Chin Integr Med. 2007; 5(1): 61-64. Chinese with abstract in English.
周扬, 顾杰, 徐列明 . 丹参酚酸B盐抑制内皮素-1所致大鼠门静脉压力升高的药效及其作用机制.中西医结合学报. 2007; 5(1):61-64.
[8] Xue DY, Hong JH, Xu LM . Effects of salvianolic acid B on signal transduction induced by transforming growth factor-BB and platelet-derived growth factor-βl in hepatic stellate cells of rats. Zhongguo Zhong Xi Yi Jie He Za Zhi. 2006; 26(5): 439-442. Chinese with abstract in English.
薛冬英, 洪嘉禾, 徐列明 . 丹参酚酸B对转化生长因子 P1和血小板衍生生长因子-BB在肝星状细胞内信号传导的影响.中国中西医结合杂志. 2006; 26(5):439-442.
[9] Xu LM, Liu C, Liu P, Liu CH, Li FH, Gu HT, Cheng LZ . A steady and high-yield method of isolating hepatic fat-storing cells. Xi Bao Sheng Wu Xue Za Zhi. 1995 ; 3: 143-145. Chinese with abstract in English.
徐列明, 刘成, 刘平, 刘成海, 李风华, 顾宏图, 成令忠 . 一种稳定和高产的肝贮脂细胞分离法.细胞生物学杂志. 1995; 3:143-145.
[10] Axmann A, Seidel D, Reimann T, Hempel U, Wenzel KW . Transforming growth factor-pi-induced activation of the Raf-MEK-MAPK signaling pathway in rat lung fibroblasts via a PKC-dependent mechanism. Biochem Biophys Res Commun. 1998; 249(2):456-460.
doi: 10.1006/bbrc.1998.9188
[11] Finlay GA, Thannickal VJ, Fanburg BL, Paulson KE . Transforming growth factor-pi-induced activation of the ERK pathway/activator protein-1 in human lung fibroblasts requires the autocrine induction of basic fibroblast growth factor.J Biol Chem. 2000; 275(36):27650-27656.
[12] Reimann T, Hempel U, Krautwald S, Axmann A, Scheibe R, Seidel D, Wenzel KW . Transforming growth factor-pi induces activation of Ras, Raf-1, MEK and MAPK in rat hepatic stellate cells. FEBS Lett. 1997; 403(1) : 57-60.
doi: 10.1016/S0014-5793(97)00024-0
[13] Marais R, Light Y, Paterson HF, Marshall CJ . Ras recruits Raf-1 to the plasma membrane for activation by tyrosine phosphorylation. EMBO J. 1995; 14(13):3136-3145.
doi: 10.1002/embj.1995.14.issue-13
[14] Xu W, Wang LW, Shi JZ, Gong ZJ . Effects of RNA interference targeting transforming growth factor-beta 1 on immune hepatic fibrosis induced by concanavalin A in mice. Hepatobiliary Pancreat Dis Int. 2009; 8(3):300-308.
[15] Ding L, Xu J, Luo X, Chegini N . Gonadotropin releasing hormone and transforming growth factor p activate mitogen-activated protein kinase/extracellularly regulated kinase and differentially regulate fibronectin, type I collagen, and plasminogen activator inhibitor-1 expression in leiomyoma and myometrial smooth muscle cells.J Clin Endocrinol Metab. 2004; 89(11):5549-5557.
doi: 10.1210/jc.2004-0161
[16] Kimoto K, Nakatsuka K, Matsuo N, Yoshioka H . p38 MAPK mediates the expression of type I collagen induced by TGF-β2 in human retinal pigment epithelial cells ARPE-19. Invest Ophthalmol Vis Sci. 2004; 45(7):2431-2437.
doi: 10.1167/iovs.03-1276
[17] Marra F, Arrighi MC, Fazi M, Caligiuri A, Pinzani M, Romanelli RG, Efsen E, Laffi G, Gentilini P . Extracellular signal-regulated kinase activation differentially regulates platelet-derived growth factor’s actions in hepatic stellate cells, and is induced by in vivo liver injury in the rat. Hepatology. 1999; 30(4):951-958.
[18] Hayashida T, Poncelet AC, Hubchak SC, Schnaper HW . TGF-pi activates MAP kinase in human mesangial cells : a possible role in collagen expression. Kidney Int. 1999; 56(5) : 1710-1720.
doi: 10.1046/j.1523-1755.1999.00733.x
