Effects of electroacupuncture at Zusanli (ST36) on inflammatory cytokines in a rat model of smoke-induced chronic obstructive pulmonary disease

Wen-ye Genga, Zi-bing Liua,b, Na-na Songa, Gui-hong Zhanga, Wei-zhong Jina, Wang Zhoua, Li Lia, Yin-xiang Caoa, Da-nian Zhua, Lin-lin Shena()

  1. a. Department of Physiology and Pathophysiology, Shanghai Medical College of Fudan University,Shanghai 200032, China
    b. Department of Physiology, Anhui College of Traditional Chinese Medicine, Hefei 230038, AnhuiProvince, China
  • Received:2012-12-05 Accepted:2013-02-27 Online:2013-05-10 Published:2013-05-15


Improvement in lung function was reported after acupuncture treatment of chronic obstructive pulmonary disease (COPD), but little is known about the underlying mechanisms. Because an immune response imbalance could be seen in COPD, we hypothesize that electroacupuncture (EA) may play a role in regulating inflammatory cytokines and contribute to lung protection in a rat model of smoke-induced COPD.


A COPD model using male Sprague-Dawley rats exposed to cigarette smoke was established. The rats were randomly divided into four groups (control, sham, COPD, and COPD plus EA), and COPD model was evaluated by measuring pulmonary pathological changes and lung function. EA was applied to the acupuncture point Zusanli (ST36) for 30 min/d for 14 d in sham and COPD rats. Bronchoalveolar lavage fluid (BALF) was used to measure levels of tumor necrosis factor-α (TNF-α), interleukin-1β (IL-1β), and malonaldehyde (MDA).


Compared with the control rats, COPD rats had significant changes in lung resistance (RL) and lung compliance (CL) (both P<0.01), bronchi and bronchiole airway obstruction (P<0.01), and levels of MDA, TNF-α, and IL-1β (P<0.01). There were no significant differences between the control and the sham groups. Compared with the COPD rats, the COPD plus EA rats had decreased RL and increased CL (both P<0.05), and reduced bronchi and bronchiole airway obstruction (P<0.05, P<0.01, respectively), while levels of TNF-α, IL-1β, and MDA in BALF were lowered (P<0.05 and P<0.01, respectively). However, TNF-α and IL-1β levels of the EA group rats remained higher than those of the control group (P<0.05).


EA at ST36 can reduce lung injury in a COPD rat model, and beneficial effects may be related to down-regulation of inflammatory cytokines. The anti-inflammatory and antioxidant effects may prolong the clinical benefit of EA.

Key words: Chronic obstructive pulmonary disease, Electroacupuncture, Anti-inflammatory, Antioxidant, Zusanli (ST36), Rats

Figure 1

Lung histopathological sections of rats in different groupsA and B: control; C and D: control plus EA; E and F: COPD; G and H: COPD plus EA. Hematoxylin and eosin (Light microscopy; original magnification: A, C, E and G, ×100 and B, D, F and H, ×400). COPD: chronic obstructive pulmonary disease; EA: electroacupuncture."

Figure 2

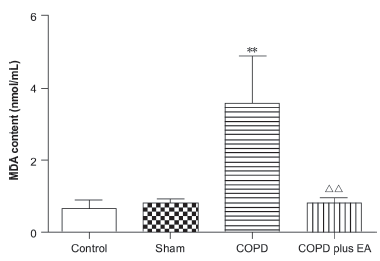

Effects of of EA on level of MDA Data are expressed as mean ± standard error of mean, n=7; **P<0.01, vs control group; △△P<0.01, vs COPD group. COPD: chronic obstructive pulmonary disease; EA: electroacupuncture; MDA: malondialdehyde."




[1] Moghaddam SJ, Clement CG , De la Garza MM, Zou X, Travis EL, Young HW, Evans CM, Tuvim MJ, Dickey BF.Haemophilus influenzae lysate induces aspects of the chronic obstructive pulmonary disease phenotype[J]. Am J Respir Cell Mol Biol, 2008,38(6):629-638
doi: 10.1165/rcmb.2007-0366OC
[2] Hogg JC, Chu F, Utokaparch S, Woods R, Elliott WM, Buzatu L, Cherniack RM, Rogers RM, Sciurba FC, Coxson HO, Paré PD . The nature of small-airway obstruction in chronic obstructive pulmonary disease[J]. N Engl J Med, 2004,350(26):2645-2653
doi: 10.1056/NEJMoa032158
[3] Sarir H , Henricks PA, van Houwelingen AH, Nijkamp FP, Folkerts G.Cells, mediators and Toll-like receptors in COPD[J]. Eur J Pharmacol, 2008,585(2-3):346-353
doi: 10.1016/j.ejphar.2008.03.009
[4] Rabe KF, Hurd S, Anzueto A, Barnes PJ, Buist SA, Calverley P, Fukuchi Y, Jenkins C , Rodriguez-Roisin R, van Weel C, Zielinski J; Global Initiative for Chronic Obstructive Lung Disease.Global strategy for the diagnosis, management, and prevention of chronic obstructive pulmonary disease: GOLD executive summary[J]. Am J Respir Crit Care Med, 2007,176(6):532-555
doi: 10.1164/rccm.200703-456SO
[5] Teramoto S . . COPD pathogenesis from the viewpoint of risk factors[J]. Intern Med, 2007,46(2):77-79
doi: 10.2169/internalmedicine.46.1775
[6] Barnes PJ . Small airways in COPD[J]. N Engl J Med, 2004,350(26):2635-2637
doi: 10.1056/NEJMp048102
[7] Jeffery PK . Comparison of the structural and inflammatory features of COPD and asthma. Giles F. Filley Lecture. Chest. 2000; 117(5 Suppl 1):251S-260S.
[8] Chung KF . Cytokines in chronic obstructive pulmonary disease. Eur Respir[J] Suppl. 2001; 34:50s-59s.
[9] Fitzgerald MF, Fox JC . Emerging trends in the therapy of COPD: novel anti-inflammatory agents in clinical development[J]. Drug Discov Today, 2007,12(11-12):479-486
doi: 10.1016/j.drudis.2007.04.005
[10] MacNee W . Oxidants/antioxidants andCOPD. Chest. 2000; 117(5 Suppl 1):303S-317S.
[11] Ciencewicki J, Trivedi S, Kleeberger SR .Oxidants and the pathogenesis of lung diseases[J]. J Allergy Clin Immunol , 2008, 122(3):456-468; quiz 469-470
doi: 10.1016/j.jaci.2008.08.004
[12] Stanojkovic I, Kotur-Stevuljevic J, Milenkovic B, Spasic S, Vujic T, Stefanovic A, Llic A, Ivanisevic J . Pulmonary function, oxidative stress and inflammatory markers in severe COPD exacerbation[J]. Respir Med, 2011,105(Suppl 1):S31-S37
doi: 10.1016/S0954-6111(11)70008-7
[13] Gross NJ . Novel antiinflammatory therapies for COPD[J]. Chest, 2012,142(5):1300-1307
doi: 10.1378/chest.11-2766
[14] Rahman I . Antioxidant therapies in COPD[J]. Int J Chron Obstruct Pulmon Dis, 2006,1(1):15-29
[15] Neumeister W, Kuhlemann H, Bauer T, Krause S, Schultze-Werninghaus G, Rasche K . Effect of acupuncture on quality of life, mouth occlusion pressures and lung function in COPD[J]. Med Klin (Munich), 1999,94(1 Spec No):106-109
[16] Suzuki M, Namura K, Ohno Y, Tanaka H, Egawa M, Yokoyama Y, Akao S, Fujiwara H, Yano T . The effect of acupuncture in the treatment of chronic obstructive pulmonary disease[J]. J Altern Complement Med, 2008,14(9):1097-1105
doi: 10.1089/acm.2007.0786
[17] Liu ZB, Song NN, Geng WY, Jin WZ, Li L, Cao YX, Qian Y, Zhu DN, Shen LL . Orexin-A and respiration in a rat model of smoke-induced chronic obstructive pulmonary disease[J]. Clin Exp Pharmacol Physiol, 2010,37(10):963-968
doi: 10.1111/j.1440-1681.2010.05411.x
[18] Wang J, Wang YQ, Yu J, Cao XD, Wu GC . Electroacupuncture suppresses surgical trauma stress-induced lymphocyte apoptosis in rats[J]. Neurosci Lett, 2005,383(1-2):68-72
doi: 10.1016/j.neulet.2005.03.068
[19] Amdur MO, Mead J . Mechanics of respiration in unanesthetized guinea pigs[J]. Am J Physiol, 1958,192(2):364-368
[20] Jiang HN, Qu JM, He LX, Chen XH, Pan J, Li L, Zhu DN, Cao YX, Shen LL . Effects of N(omega)-nitro-L-arginine methyl ester and aminoguanidine on lipopolysaccharide-induced airway hyperresponsiveness in guinea pigs[J]. Chin Med J (Engl), 2008,121(17):1693-1697
[21] Syrkina O, Jafari B, Hales CA, Quinn DA . Oxidant stress mediates inflammation and apoptosis in ventilator-induced lung injury[J]. Respirology, 2008,13(3):333-340
doi: 10.1111/j.1440-1843.2008.01279.x
[22] Murakami K , McGuire R, Cox RA, Jodoin JM, Schmalstieg FC, Traber LD, Hawkins HK, Herndon DN, Traber DL.Recombinant antithrombin attenuates pulmonary inflammation following smoke inhalation and pneumonia in sheep[J]. Crit Care Med, 2003,31(2):577-583
doi: 10.1097/01.CCM.0000050444.52531.08
[23] Shi HW, Hu JL, Tian YP, Huang HM, Li XH, Su JL . Propofol protecting rats from paraquat-induced lung injury[J]. Zhonghua Lao Dong Wei Sheng Zhi Ye Bing Za Zhi, 2006,24(6):345-347
[24] Ikeuchi H, Sakano T, Sanchez J, Mason AD , Jr., Pruitt BA, Jr. The effects of platelet-activating factor(PAF) and a PAF antagonist(CV-3988) on smoke inhalation injury in an ovine model[J]. J Trauma, 1992,32(3):344-349
doi: 10.1097/00005373-199203000-00012
[25] Ricard JD, Dreyfuss D, Saumon G . Production of inflammatory cytokines in ventilator-induced lung injury: a reappraisal[J]. Am J Respir Crit Care Med, 2001,163(5):1176-1180
doi: 10.1164/ajrccm.163.5.2006053
[26] Wright JL, Churg A . Animal models of COPD: Barriers, successes, and challenges[J]. Pulm Pharmacol Ther, 2008,21(5):696-698
doi: 10.1016/j.pupt.2008.01.007
[27] Zheng H, Liu Y, Huang T, Fang Z, Li G, He S . Development and characterization of a rat model of chronic obstructive pulmonary disease(COPD) induced by sidestream cigarette smoke[J]. Toxicol Lett, 2009,189(3):225-234
doi: 10.1016/j.toxlet.2009.06.850
[28] Singh B, Arora S, Khanna V . Association of severity of COPD with IgE and interleukin-1b[J]. Monaldi Arch Chest Dis, 2010,73(2):86-87
[29] Du LN, Jiang JW, Wu GC, Cao XD . Naloxone and electroacunpunture(EA) improve the immune function of traumatized rats[J]. Sheng Li Xue Bao, 1998,50(6):636-642
[30] Kavoussi B, Ross BE . The neuroimmune basis of anti-inflammatory acupuncture[J]. Integr Cancer Ther, 2007,6(3):251-257
doi: 10.1177/1534735407305892
[31] Tian L, Huang YX, Tian M, Gao W, Chang Q . Downregulation of electroacupuncture at ST36 on TNF-α in rats with ulcerative colitis[J]. World J Gastroenterol, 2003,9(5):1028-1033
doi: 10.3748/wjg.v9.i5.1028
[32] Suzuki M, Ohno Y, Namura K, Asai T, Yuugetu H, Sawada M, Akao S, Gotou K, Fujiwara H . A case of chronic obstructive pulmonary disease(COPD) successfully treated by acupuncture[J]. Nihon Kokyuki Gakkai Zasshi, 2005,43(5):289-295
[33] Baginski TK, Dabbagh K, Satjawatcharaphong C, Swinney DC . Cigarette smoke synergistically enhances respiratory mucin induction by proinflammatory stimuli[J]. Am J Respir Cell Mol Biol, 2006,35(2):165-174
doi: 10.1165/rcmb.2005-0259OC
[34] Pogosyan AS, Venediktova NI, Kosenko EA, Kaminskii YG . Antioxidant status of erythrocytes after acupuncture treatment[J]. Bull Exp Biol Med, 2004,138(1):26-29
doi: 10.1007/BF02694465
[35] Chen CM, Wang LF, Shen EY . Maternal acupuncture effects on surfactant and antioxidant enzymes in preterm rat lungs[J]. Acta Paediatr Taiwan, 2005,46(4):206-211
