Journal of Chinese Integrative Medicine ›› 2006, Vol. 4 ›› Issue (5): 509-513.doi: 10.3736/jcim20060514

• Original Experimental Research • Previous Articles     Next Articles

Effects of Qinggan Huoxue Recipe and its decomposed formulas on CD14, Toll like receptor 4 and nuclear factor-κB expressed by Kupffer cells

Guang Ji, Miao Wang, Pei-yong Zheng, Lian-jun Xing, Tao Liu

  1. Laboratory of Fatty Liver Diseases, Longhua Hospital, Shanghai University of Traditional Chinese Medicine, Shanghai 200032, China
  • Online:2006-09-30 Published:2006-09-15


To investigate the effects of Qinggan Huoxue Recipe (QGHXR), a compound Chinese herbal medicine, and its decomposed formulas Qinggan Recipe (QGR) and Huoxue Recipe (HXR) on expressions of CD14, Toll like receptor 4 (TLR4) and nuclear factor-κB (NF-κB) in Kupffer cells.


The isolated primary rat Kupffer cells were treated with lipopolysaccharide (LPS) for a certain period of time, a series of concentrations of drug-containing serums of QGHXR and its decomposed formulas were added, the expressions of NF-κB, tumor necrosis factor-α (TNF-α), CD14, and TLR4 of the Kupffer cells were detected in different culture conditions by using Western blot, real-time reverse transcription polymerase chain reaction (RT-PCR) and ELISA methods respectively.


QGR could down-regulate the expression of membrane receptor CD14, but the expression of NF-κB and TNF-α were not significantly decreased after QGR treatment. HXR could down-regulate the expression of membrane receptor TLR4 and inhibit the expressions of NF-κB and TNF-α. QGHXR could down regulate the expressions of membrane receptors CD14 and TLR4 and inhibit the expressions of NF-κB and TNF-α.


QGHXR can protect liver cells by down regulating the expressions of CD14, TLR4 and NF-κB and inhibiting TNF-α expression.

Key words: Kupffer cells, Signal transduction, Qinggan Huoxue Recipe, Toll like receptor 4

Figure 1

Separated KC for 24 hours (Trypan blue staining,×100)"

Figure 2

Latex beads swallowed by KC (Trypan blue staining,×100)"

Table 1

Effects of different doses of LPS on TNF-α expression of KC(ヌ±S , pg/g)"

Group n Emendated TNF-α
Normal control 6 114.99±14.59
10 μg/L 6 134.12±22.86△△
50 μg/L 6 220.77±26.74△△
100 μg/L 6 325.83±60.46**
1 mg/L 6 333.79±60.66**
5 mg/L 6 273.77±46.47**

Table 2

Effects of different LPS cultivated time on TNF-α expression of KC(ヌ±S , pg/g)"

Group n Emendated TNF-α
Normal control 6 261.21±1.44
15 min 6 279.73±1.48△△
30 min 6 303.97±10.68△△
1 h 6 287.07±1.89△△
2 h 6 656.62±10.24**
3 h 6 759.80±13.93**
6 h 6 948.19±6.75**
12 h 6 591.56±9.42**

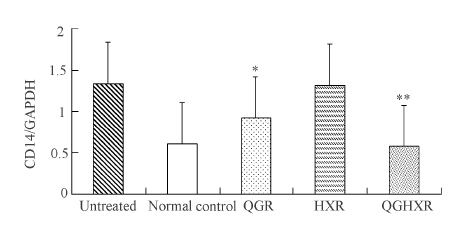

Figure 3

CD14 expression of KC in 5 groups detected by Western blotting, half-quantity*P<0.05, **P<0.01, vs untreated group, n=3."

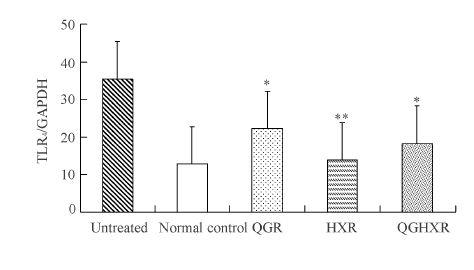

Figure 4

TLR4 expression of KC in 5 groups detected by Western blotting, half-quantity*P<0.05, **P<0.01, vs untreated group, n=3."

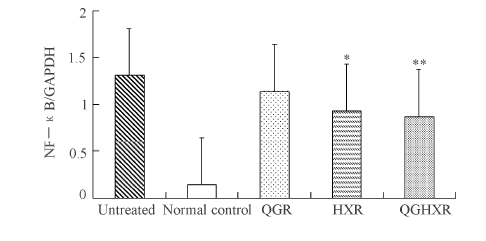

Figure 5

NF-κB expression of KC in 5 groups detected by Western blotting, half-quantity*P<0.05, **P<0.01, vs untreated group, n=3."

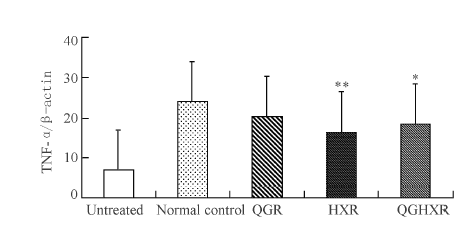

Figure 6

Effects of drug-containing serums on TNF-α mRNA expression of KC in 5 groups detected by RT-PCR, half-quantity*P<0.05, **P<0.01, vs untreated group, n=3."

[1] Nolan JP, Camara DS . Intestinal endotoxins as co-factors in liver injury[J]. Immunol Invest, 1989,18(1-4):325-337
doi: 10.3109/08820138909112246 pmid: 2659515
[2] Yin M, Bradford BU, Wheeler MD , et al. Reduced early alcohol-induced liver injury in CD14-deficient mice[J]. J Immunol, 2001,166(7):4737-4742
doi: 10.1016/j.plasmid.2005.06.001 pmid: 11254735
[3] Kurose I, Saito H, Miura S , et al. CD18/ICAM-1-dependent oxidative NF-kappa B activation leading to nitric oxide production in rat Kupffer cells cocultured with syngeneic hepatoma cells[J]. J Clin Invest, 1997,99(5):867-878
[4] 季光 . 清肝活血方治疗酒精性肝病的临床研究[J]. 中西医结合学报, 2003,1(2):103-107, 124
doi: 10.3969/j.issn.1672-397X.2003.09.008
季光 . 清肝活血方治疗酒精性肝病的临床研究[J]. 中西医结合学报, 2003,1(2):103-107, 124
[5] 郑培永, 季光, 尤圣富 . 清肝活血方对酒精性肝病大鼠肝脏脂质过氧化损伤的影响[J]. 江苏中医药, 2004,25(8):50-51
doi: 10.3969/j.issn.1672-397X.2004.08.032
[6] Figliomeni ML, Abdel-Rahman MS . Ethanol does not increase the hepatotoxicity of cocaine in primary rat hepatocyte culture[J]. Toxicology, 1998,129(2-3):125-135
doi: 10.1016/S0300-483X(98)00081-X pmid: 9772091
[7] Keshavarzian A, Hohnes EW, Patel M , et al. Leaky gut in alcoholic cirrhosis: a possible mechanism for alcohol-induced liver damage[J]. Am J Gastroenterol, 1999,94(1):200-207
doi: 10.1111/j.1572-0241.1999.00797.x pmid: 9934756
[8] Bode C, Bode JC . Effect of alcohol consumption on the gut[J]. Best Pract Res Clin Gastroenterol, 2003,17(4):575-592
doi: 10.1016/S1521-6918(03)00034-9 pmid: 12828956122
[9] Wenzel RP, Pinsky MR, Ulevitch RJ , et al. Current understanding of sepsis[J]. Clin Infect Dis, 1996,22(3):407-412
[10] Parlesak A, Schafer C, Schutz T , et al. Increased intestinal permeability to macromolecules and endotoxemia in patients with chronic alcohol abuse in different stages of alcohol-induced liver disease[J]. J Hepatol, 2000,32(5):742-747
[11] Adachi Y, Bradford BU, Gao W , et al. Inactivation of Kupffer cells prevents early alcohol-induced liver injury[J]. Hepatology, 1994,20(2):453-460
[12] 许亦斌, 季光, 曹承楼 , 等. "清肝活血方"对肝星状细胞增殖及胶原生成的影响[J]. 实用临床医药杂志, 2003,7(6):243-245, 251
