Protective effect of Huangban Granule against light-induced retinal damage in rats

Yuan-yuan Gong, Yi Song, Zheng-gao Xie, Xing-wei Wu()

  1. Department of Ophthalmology, First People’s Hospital,Shanghai Jiaotong University, Shanghai 200080, China
  • Received:2008-03-19 Online:2008-11-20 Published:2008-11-15


To observe the protective effect of Huangban Granule, a compound of traditional Chinese herbal medicine, on rats with retinal damage induced by light.


A total of 24 male Sprague-Dawley (SD) rats were randomly divided into normal control group, untreated group and Huangban Granule group. Retinal light damage was induced by exposure to constant white fluorescent light for 5 hours at an illumination of 2 800 Lux. The Huangban Granule was given 10 days before light exposure until the animals were sacrificed in Huangban Granule group, and an equal volume of distilled water for the rats in untreated group. Electroretinogram (ERG) was recorded in all animals 2 weeks after light exposure and the animals were sacrificed for histopathological examination of retina. The outer nuclear layers (ONLs) on the superior and inferior retina were counted.


Fourteen days after light exposure, the ONLs on the superior retina were 3 to 6 in the untreated group and 7 to 9 in treatment group. There were 9 to 11 layers in normal group. The mean number of ONLs in the untreated group (4.68±1.64) was less than that in the treatment group (8.23±1.35) (P<0.01). B-wave amplitudes were (319.38±71.96) μV and (135.16±42.30) μV in Huangban Granule group and the untreated group respectively (P<0.01). A-wave amplitudes were (184.63±47.23) μV and (83.35±27.75) μV (P<0.01), and oscillatory potential amplitudes were (239.38±20.19) μV and (125.44±26.23) μV (P<0.01) respectively in the two group. There was no significant difference in implicit times of a-wave and b-wave among the three groups.


Huangban Granule obviously protects both function and morphology of the retina from light-induced retinal damage in rats.

Key words: Huangban granule, electroretinography, light damage, retinal degeneration, rats

CLC Number:

  • R774.13

Figure 1

Morphological changes 14 days after light damage in rats (HE staining, ×400) PE: Pigment epithelium; ONL: Outer nuclear layer; INL: Inner nuclear layer; GC: Ganglion cell layer. A: Normal control group, the layers of ONL were 9 to 11 and the neuclei arrangement was regular; B: Huangban Granule group, the layers of ONL were 7 to 9 and also in regular arrangement; C: Untreated group, the layers of ONL were 3 to 6 and in irregular arrangement; the outer and inner segments of photoreceptor were disappeared."

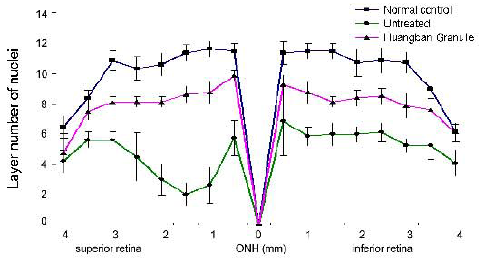

Figure 2

Changes of ONL thickness (layer number of neuclei) on different location across the vertical meridian 14 days after light damage in rats ONH refers to optic nerve head."

Table 1

Changes of ERG 14 days after light damage (x±s)"

Group n Implicit time (ms) Amplitude (μV)
a wave b wave a wave b wave OPs
Normal control 8 12.75±1.16 48.00±7.56 231.88±28.78 381.38±42.06 269.75±17.25
Untreated 8 11.88±0.83 55.25±7.42 83.35±27.75** 135.16±42.30** 125.44±26.23**
Huangban Granule 8 12.63±0.52 48.63±7.69 184.63±47.23*△△ 319.38±71.96*△△ 239.38±20.19*△△
[1] Noell WK, Walker VS, Kang BS , et al. Retinal damage by light in rats[J]. Invest Ophthalmol, 1966,5(5):450-473
pmid: 5929286
[2] Shahinfar S, Edward DP, Tso MO . A pathologic study of photoreceptor cell death in retinal photic injury[J]. Curr Eye Res, 1991,10(1):47-59
doi: 10.3109/02713689109007610 pmid: 2029848
[3] Abler AS, Chang CJ, Ful J , et al. Photic injury triggers apoptosis of photoreceptor cells[J]. Res Commun Mol Pathol Pharmacol, 1996,92(2):177-189
doi: 10.1016/0890-6238(96)00028-7 pmid: 8774071
[4] Chang GQ, Hao Y, Wong F . Apoptosis: final common pathway of photoreceptor death in rd, rds, and rhodopsin mutant mice[J]. Neuron, 1993,11(4):595-605
doi: 10.1016/0896-6273(93)90072-Y pmid: 8398150
[5] Remé CE, Grimm C, Hafezi F , et al. Apoptotic cell death in retinal degenerations[J]. Prog Retin Eye Res, 1998,17(4):443-464
doi: 10.1016/S1350-9462(98)00009-3 pmid: 9777646
[6] Algvere PV, Marshall J, Seregard S . Age-related maculopathy and the impact of blue light hazard[J]. Acta Ophthalmol Scand, 2006,84(1):4-15
doi: 10.1111/j.1600-0420.2005.00627.x pmid: 16445433
[7] Liu N, Li ZL, Cao AM . A research of Lycium barbarum L. in rescue of retina from photic injury in rats[J]. Zhonghua Yan Di Bing Za Zhi, 1995,11(1):31-33
刘娜, 李子良, 曹安民 . 枸杞在保护大鼠视网膜光损伤中作用的研究[J]. 中华眼底病杂志, 1995,11(1):31-33
[8] Tang JR, Hu B . An experimental research on protective effect of compound injection of Salvia miltiorrhiza by retrobulbar injection in photic injury rat retinopathy[J]. Zhongguo Zhong Yi Yan Ke Za Zhi, 1998,8(3):131-133
唐建容, 胡斌 . 复方丹参注射液球后注射对视网膜光损伤防护的实验研究[J]. 中国中医眼科杂志, 1998,8(3):131-133
[9] Shi XY. Medical experimental zoology[M]. Xi'an: Shannxi Scientific and Technical Publishers,1989: 417-421
施新猷 . 医用实验动物学[M]. 西安: 陕西科学技术出版社,1989: 417-421
[10] Xie Z, Wu X, Gong Y , et al. Intraperitoneal injection of Ginkgo biloba extract enhances antioxidation ability of retina and protects photoreceptors after light-induced retinal damage in rats[J]. Curr Eye Res, 2007,32(5):471-479
doi: 10.1080/02713680701257621
[11] Wu J, Seregard S, Algvere PV . Photochemical damage of the retina[J]. Surv Ophthalmol, 2006,51(5):461-481
doi: 10.1016/j.survophthal.2006.06.009 pmid: 16950247
[12] Wenzel A, Grimm C, Samardzija M , et al. Molecular mechanisms of light-induced photoreceptor apoptosis and neuroprotection for retinal degeneration[J]. Prog Retin Eye Res, 2005,24(2):275-306
doi: 10.1016/j.preteyeres.2004.08.002
[13] Joly S, Pernet V, Chemtob S , et al. Neuroprotection in the juvenile rat model of light-induced retinopathy: Evidence suggesting a role for FGF-2 and CNTF[J]. Invest Ophthalmol Vis Sci, 2007,48(5):2311-2320
doi: 10.1167/iovs.06-1205
[14] Tomita H, Kotake Y, Anderson RE . Mechanism of protection from light-induced retinal degeneration by the synthetic antioxidant phenyl-N-tert-butylnitrone[J]. Invest Ophthalmol Vis Sci, 2005,46(2):427-434
doi: 10.1167/iovs.04-0946
[15] Noell WK . Possible mechanisms of photoreceptor damage by light in mammalian eyes[J]. Vision Res, 1980,20(12):1163-1171
doi: 10.1016/0042-6989(80)90055-3 pmid: 7269272
[16] Harada T, Harada C, Nakayama N , et al. Modification of glialneuronal cell interactions prevents photoreceptor apoptosis during light-induced retinal degeneration[J]. Neuron, 2000,26(2):533-541
doi: 10.1016/S0896-6273(00)81185-X
[17] LaVail MM, Unoki K, Yasumura D , et al. Multiple growth factors, cytokines, and neurotrophins rescue photoreceptors from the damaging effects of constant light[J]. Proc Natl Acad Sci U S A, 1992,89(23):11249-11253
doi: 10.1073/pnas.89.23.11249
[18] Organisciak DT, Darrow RM, Jiang YI , et al. Protection by dimethylthiourea against retinal light damage in rats[J]. Invest Ophthalmol Vis Sci, 1992,33(5):1599-1609
doi: 10.1016/0014-4835(92)90143-G pmid: 1559759
[19] Wang XW, Jiang XY, Wu LY , et al. Scavenging effects of glycosides of Cistanche on free radicals and its protection against OH– induced DNA damage in vitro[J]. Zhongguo Yao Xue Za Zhi, 2001,36(1):29-32
doi: 10.1007/s11769-001-0027-z
王晓雯, 蒋晓燕, 邬莉娅 , 等. 肉苁蓉总苷体外清除自由基及对OH–引发的DNA损伤的保护作用[J]. 中国药学杂志, 2001,36(1):29-32
doi: 10.1007/s11769-001-0027-z
