Journal of Chinese Integrative Medicine ›› 2009, Vol. 7 ›› Issue (9): 842-847.doi: 10.3736/jcim20090909

• Original Experimental Research • Previous Articles     Next Articles

Changes of mitochondrial apoptosis in spinal cord ischemia-reperfusion injury and the effects of Herba Erigerontis Breviscapi Injection preconditioning intervention in rabbits

 Bin Chenga,Xin Wangb,Lei Wanga,Kai Caoa,Lei Duanc,Feng-tao Lia

  1. a Third Department of Orthopaedics, Second Hospital of Xi5an Jiao Tong University School of Medicine, Xi5an 710004, Shaanxi Province, China
    b Department of Orthopaedics, Affiliated Hospital, Employee Medical College, Xinzheng 451191, Henan Province, China
    c Department of Orthopaedics, Yueyang Hospital of Integrated Traditional Chinese and Western Medicine,Shanghai University of Traditional Chinese Medicine, Shanghai 200437, China
  • Received:2009-04-20 Accepted:2009-07-06 Online:2009-09-20 Published:2009-09-15
  • Contact: Bin Cheng


To investigate the mechanisms of mitochondrial apoptosis in spinal cord ischemia-reperfusion injury and the effects of Herba Erigerontis Breviscapi Injection preconditioning intervention.

Sixty Japanese rabbits were divided into sham-operated group, ischemia group, ischemia-reperfusion group (1, 6, 24 and 48 h), and Herba Erigerontis Breviscapi Injection group (1, 6, 24 and 48 h). Clamping the abdominal aorta was used to construct the rabbit model of spinal cord ischemia-reperfusion injury. The rabbits in the ischemia-reperfusion group and the Herba Erigerontis Breviscapi Injection group underwent reperfusion for 1, 6, 24, 48 h respectively after fifty-minute ischemia. The rabbits in the Herba Erigerontis Breviscapi Injection group were administered with Herba Erigerontis Breviscapi Injection at 9 mg/kg 30 minutes before ischemia. Rate of apoptotic cells was measured by flow cytometry; contents of caspase-9 and apoptosis-inducing factor (AIF) in cytoplasm and serum were measured by enzyme-linked immunosorbent assay.

Compared with the sham-operated group and the ischemia group, the rates of apoptotic cells, the contents of caspase-9 and AIF in cytoplasm were increased at all time points after reperfusion, and the contents of caspase-9 and AIF in serum were decreased after 1 h and 6 h reperfusion, and increased after 24 h and 48 h reperfusion in the ischemia-reperfusion group. Herba Erigerontis Breviscapi Injection intervention could decrease the rate of apoptotic cells and the contents of caspase-9 and AIF in cytoplasm and serum as compared with those in the ischemia-reperfusion group, and the effects appeared after 1 h reperfusion.

The apoptosis of nerve cells after spinal cord ischemia-reperfusion is related to the mitochondrial pathways. Herba Erigerontis Breviscapi Injection can inhibit nerve cell apoptosis by decreasing the contents of caspase-9 and AIF in cytoplasm and serum.

Key words: Mitochondria, Herba Erigerontis Breviscapi Injection, Apoptosis, Ischemia-reperfusion injury, Rabbits

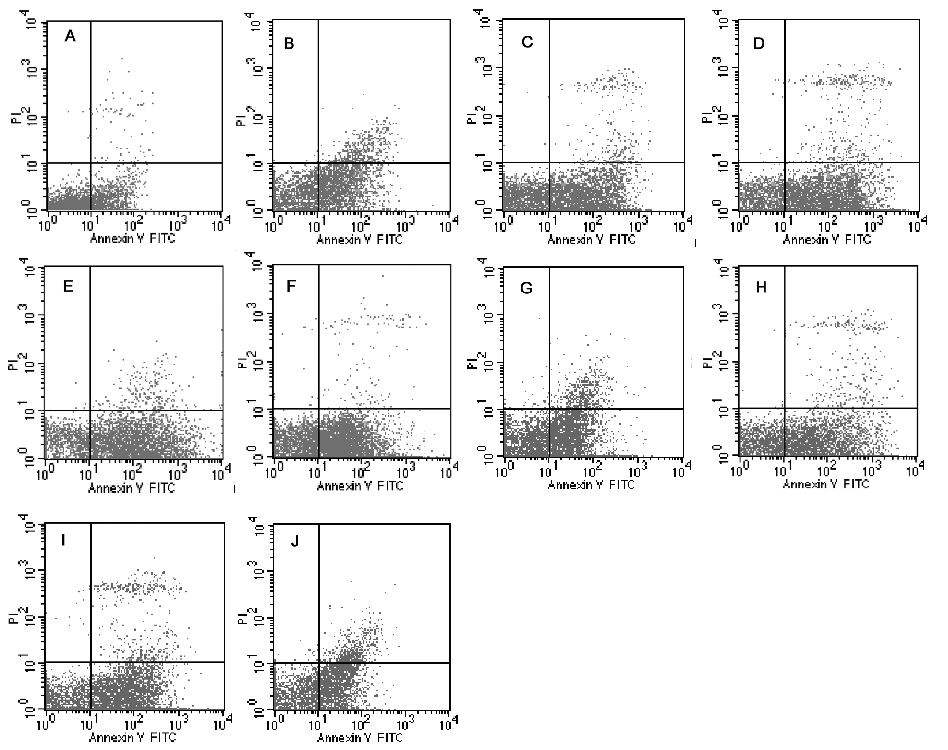

Figure 1

Rates of apoptosis of nerve cells in spinal cord measured by flow cytometry A: Sham-operated group; B: Ischemia group; C: Ischemia-reperfusion group, 1 h reperfusion; D: Ischemia-reperfusion group, 6 h reperfusion; E: Ischemia-reperfusion group, 24 h reperfusion; F: Ischemia-reperfusion group, 48 h reperfusion; G: Herba Erigerontis Breviscapi Injection group, 1 h reperfusion; H: Herba Erigerontis Breviscapi Injection group, 6 h reperfusion; I: Herba Erigerontis Breviscapi Injection group, 24 h reperfusion; J: Herba Erigerontis Breviscapi Injection group, 48 h reperfusion."

Table 1

Rates of apoptosis of nerve cells in spinal cord ($\bar{x}$±s, %)"

Group Time n Normal cells Apoptotic cells
Sham-operated 5 81.72±1.51 17.24±1.30
Ischemia 50 min 6 48.60±1.92* 42.82±1.44*
Ischemia-reperfusion 1 h 6 38.53±2.18* 57.34±1.95*
6 h 6 23.41±1.64* 70.52±1.93*
24 h 6 14.97±0.53* 81.03±0.47*
48 h 6 32.87±1.18* 64.04±1.69*
Herba Erigerontis Breviscapi Injection 1 h 6 45.38±0.96 45.85±1.14
6 h 6 30.50±0.74 65.32±1.44
24 h 6 27.89±1.85 64.33±0.50
48 h 6 46.67±1.30 41.47±1.19

Table 2

Contents of AIF and caspase-9 in cytoplasm of spinal cord and serum ($\bar{x}$±s)"

Group Time n Cytoplasm Serum
AIF (ng/L) Caspase-9 (μg/L) AIF (ng/L) Caspase-9 (μg/L)
Sham-operated 5 211.21±10.84 1.92±0.16 788.52±23.87 3.95±0.20
Ischemia 50 min 6 242.11±16.49 2.38±0.36 1 057.85±58.85* 8.40±0.15*
Ischemia-reperfusion 1 h 6 350.93±16.86* 4.30±0.29* 863.29±15.83 5.69±0.34*
6 h 6 731.72±15.50* 5.57±0.28* 931.16±19.21* 6.38±0.39*
24 h 6 540.38±8.64* 5.31±0.37* 1 606.99±40.92* 9.31±0.18*
48 h 6 344.76±20.65* 4.05±0.25* 1 157.64±28.88* 8.41±0.15*
Herba Erigerontis Breviscapi Injection 1 h 6 339.50±20.54 3.35±0.14 802.24±17.62 4.77±0.11
6 h 6 449.01±23.75 3.81±0.21 800.08±18.63 5.01±0.27
24 h 6 392.94±14.47 3.51± 0.28 920.19±29.94 6.33±0.39
48 h 6 296.91±8.18 3.06±0.24 809.06±24.02 5.36±0.17
[1] Dasmahapatra G, Almenara JA, Grant S . Flavopiridol and histone deacetylase inhibitors promote mitochondrial injury and cell death in human leukemia cells that overexpress Bcl-2[J]. Mol Pharmacol, 2006,69(1):288-298
[2] Di Lisa F, Bernardi P . Mitochondria and ischemia-reperfusion injury of the heart: fixing a hole[J]. Cardiovasc Res, 2006,70(2):191-199
doi: 10.1016/j.yjmcc.2006.03.171 pmid: 16497286
[3] Ratha J, Majumdar KN, Dhara K, Singh SK, Saha KD, Bhadra R . Attenuated Leishmanial sphingolipid induces apoptosis in A375 human melanoma cell via both caspase-dependent and -independent pathways[J]. Mol Cell Biochem, 2007,304(1-2):143-154
doi: 10.1007/s11010-007-9495-5
[4] Zanna C, Ghelli A, Porcelli AM, Martinuzzi A, Carelli V, Rugolo M . Caspase-independent death of Leber's hereditary optic neuropathy cybrids is driven by energe-tic failure and mediated by AIF and endonuclease G[J]. Apoptosis, 2005,10(5):997-1007
doi: 10.1007/s10495-005-0742-5
[5] Przyklenk K, Bauer B, Ovize M, Kloner RA, Whittaker P . Regional ischemic 'preconditioning' protects remote virgin myocardium from subsequent sustained coronary occlusion[J]. Circulation, 1993,87(3):893-899
doi: 10.1161/01.CIR.87.3.893
[6] Hausenloy DJ, Yellon DM . Remote ischaemic preconditioning: underlying mechanisms and clinical application[J]. Cardiovasc Res, 2008,79(3):377-386
doi: 10.1093/cvr/cvn114 pmid: 18456674
[7] Zhao LJ, Men XL, Dong SY, Duan GX, Kong XY, Zhang LY . Remote protective effect of skeletal muscle ischemic preconditioning on myocardium during limb ischemia-reperfusion[J]. Zhongguo Yi Ke Da Xue Xue Bao, 2008,37(2):168-170
doi: 10.3969/j.issn.0258-4646.2008.02.008
赵利军, 门秀丽, 董淑云, 段国贤, 孔小燕, 张连元 . 骨骼肌缺血预适应对肢体缺血再灌注后心肌的远端保护作用[J]. 中国医科大学学报, 2008,37(2):168-170
doi: 10.3969/j.issn.0258-4646.2008.02.008
[8] Zivin JA , DeGirolami U . Spinal cord infarction: a highly reproducible stroke model[J]. Stroke, 1980,11(2):200-202
doi: 10.1161/01.STR.11.2.200 pmid: 7368250
[9] Cain K, Bratton SB, Langlais C, Walker G, Brown DG, Sun XM, Cohen GM . Apaf-1 oligomerizes into biologically active approximately 700-kDa and inactive approximately 1.4-MDa apoptosome complexes[J]. J Biol Chem, 2000,275(9):6067-6070
doi: 10.1074/jbc.275.9.6067
[10] Verhagen AM, Ekert PG, Pakusch M, Silke J, Connolly LM, Reid GE, Moritz RL, Simpson RJ, Vaux DL . Identification of DIABLO, a mammalian protein that promotes apoptosis by binding to and antagonizing IAP proteins[J]. Cell, 2000,102(1):43-53
doi: 10.1016/S0092-8674(00)00009-X
[11] Andrabi SA, Kim NS, Yu SW, Wang H, Koh DW, Sasaki M, Klaus JA, Otsuka T, Zhang Z, Koehler RC, Hurn PD, Poirier GG, Dawson VL, Dawson TM . Poly(ADP-ribose)(PAR) polymer is a death signal[J]. Proc Natl Acad Sci U S A, 2006,103(48):18308-18313
doi: 10.1073/pnas.0606526103 pmid: 17116882
[12] Varecha M, Amrichová J, Zimmermann M, Ulman V, Lukàsovà E, Kozubek M . Bioinformatic and image analyses of the cellular localization of the apoptotic proteins endonuclease G, AIF, and AMID during apoptosis in human cells[J]. Apoptosis, 2007,12(7):1155-1171
doi: 10.1007/s10495-007-0061-0
[13] Park HJ, Choi JY, Seong YM, Han C, Yoon SJ, Kang S, Rhim H . Antigenicity of the region encoded by exon8 of the human serine protease, HtrA2/Omi, is associated with its protein solubility. [J]. Biotechnol Lett, 2003,25(19):1597-1603
doi: 10.1023/A:1025630013679
[14] Tang SS . Breviscapine for the intervention of apoptosis-related protein in rats following cerebral ischemia-reperfusion[J]. Zhongguo Lin Chuang Kang Fu, 2005,9(17):130-131
doi: 10.3321/j.issn:1673-8225.2005.17.078
唐省三 . 灯盏花素对兔脑缺血再灌注后凋亡相关蛋白的干预[J]. 中国临床康复, 2005,9(17):130-131
doi: 10.3321/j.issn:1673-8225.2005.17.078
[15] Zhou QD, Yang WQ . Study on protective mechanism of fleabane on PC12 cells impaired by hypoxia-reoxygention[J]. Lin Chuang Shen Jing Bing Xue Za Zhi, 2007,20(3):230-231
doi: 10.3969/j.issn.1004-1648.2007.03.024
周启棣, 杨文琼 . 灯盏细辛对缺氧复氧损伤的PC12细胞保护机制的研究[J]. 临床神经病学杂志, 2007,20(3):230-231
doi: 10.3969/j.issn.1004-1648.2007.03.024
