Journal of Chinese Integrative Medicine ›› 2011, Vol. 9 ›› Issue (5): 533-538.doi: 10.3736/jcim20110511

• Original Experimental Research • Previous Articles     Next Articles

Effects of deguelin on proliferation and apoptosis of MCF-7 breast cancer cells by phosphatidylinositol 3-kinase/Akt signaling pathway

Zhao-hui Chu1,2, Xiao-hua Liang1,2(), Xin-li Zhou1,2, Ruo-fan Huang1,2, Qiong Zhan1,2, Jing-wei Jiang1,2

  1. 1. Department of Oncology, Huashan Hospital, Fudan University, Shanghai 200040, China
    2. School of Oncology, Shanghai Medical College, Fudan University, Shanghai 200032, China
  • Received:2010-12-18 Accepted:2010-12-27 Online:2011-05-20 Published:2011-05-15
  • Contact: Liang Xiao-hua

Objective: To study the effects of deguelin on proliferation and apoptosis of human breast cancer cell line MCF-7 and on phosphatidylinositol 3-kinase/protein kinase B (PI3K/Akt) signaling pathway.
Methods: After treatment with 0, 1, 5, 10, 15 and 20 μmol/L of deguelin for 6, 24, 48 and 72 hours, the proliferation inhibition rate of MCF-7 cells was measured by cell counting kit-8 assay. Apoptosis rate of MCF-7 cells was detected with Annexin V-fluorescein isothiocyanate/propidium iodide double staining by flow cytometry and the apoptotic morphology was observed under a transmission electron microscope. After treatment with 0, 1 and 5 μmol/L of deguelin for 6 hours, 5 proteins involved in the PI3K/Akt signaling pathway were examined by Western blot analysis.
Results: Deguelin at doses of 5, 10, 15 and 20 μmol/L inhibited the proliferation of MCF-7 cells at 6, 24, 48 and 72 hours. There was a significant difference in each group compared with the control group (P<0.01). The inhibitory effect was more marked with increasing concentration and duration of treatment. There were statistical differences (P<0.05) among 5, 10, 15 and 20 μmol/L groups. However, 1 μmol/L of deguelin had no obvious effects on the proliferation of MCF-7 cells at 6, 24, 48 and 72 hours, showing no significant difference compared with control group (P>0.05). Deguelin at doses of 5, 10, 15 and 20 μmol/L induced apoptosis of MCF-7 cells at 6 hours. There were significant differences (P<0.01) in the early and late apoptosis rate between the treated groups and the control group. The typical apoptotic MCF-7 cells were observed under the transmission electron microscopy. However, 1 μmol/L of deguelin had no apparent effect in inducing apoptosis of MCF-7 cells at 6 hours. After treatment with 5 μmol/L of deguelin for 6 hours the expression of phosphorylated phosphatase and tensin homologue deleted on chromosome 10 (PTEN) (Ser380), phosphorylated 3-phosphoinositide-dependent protein kinase 1 (PDK1) (Ser241), phosphorylated Akt (Thr308) and phosphorylated glycogen synthase kinase-3β (GSK-3β) (Ser9) proteins were significantly reduced in MCF-7 cells, while there was no significant change in the expression of total Akt protein. However, after treatment with 1 μmol/L of deguelin for 6 hours, there was no apparent change in the expression of these 5 proteins.
Conclusion: Deguelin can inhibit the phosphorylation of GSK-3β (Ser9) via inhibition of the phosphorylation of PTEN (Ser380) and PDK1 (Ser241) pathway, thus inducing apoptosis and inhibiting proliferation of MCF-7 cells.

Key words: deguelin, 1-phosphatidylinositol 3-kinase, Akt, cell proliferation, apoptosis, MCF-7 cell line, in vitro



Figure 1

A poptotic morphology of MCF-7 cells after culturing with deguelin for 6 h (Transmission electron microscopy, ×10 000)"

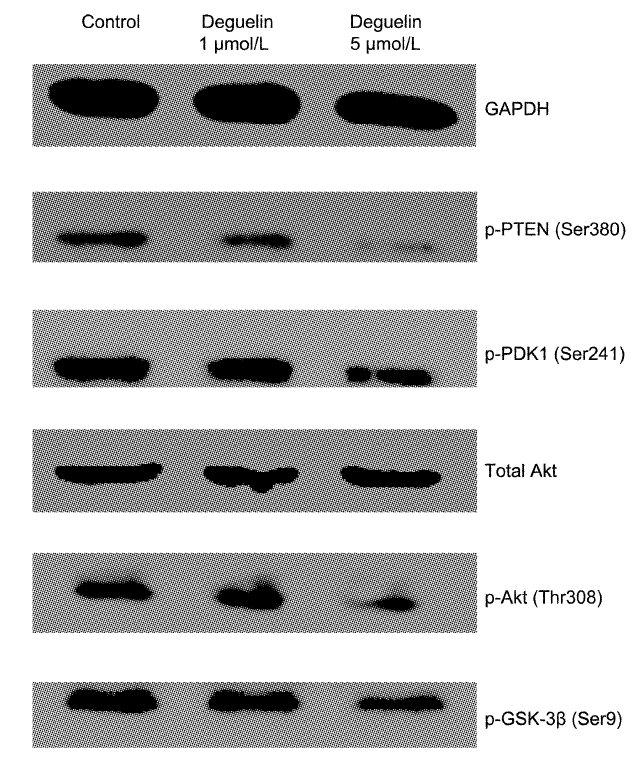

Figure 2

Expressions of PI3K/Akt signaling pathway proteins in MCF-7 cells after culturing with deguelin for 6 h GAPDH: glyceraldehyde-3-phosphate dehydrogenase; p-PTEN: phosphorylated phosphatase and tensin homologue deleted on chromosome 10; p-PDK1: phosphorylated 3-phosphoinositide-dependent protein kinase 1; p-GSK-3β: phosphorylated glycogen synthase kinase-3β."

[1] Chun KH, Kosmeder JW 2nd, Sun S, Pezzuto JM, Lotan R, Hong WK, Lee HY .Effects of deguelin on the phosphatidylinositol 3-kinase/Akt pathway and apoptosis in premalignant human bronchial epithelial cells[J]. J Natl Cancer Inst, 2003,95(4):291-302
doi: 10.1093/jnci/95.4.291
[2] Nair AS, Shishodia S, Ahn KS, Kunnumakkara AB, Sethi G, Aggarwal BB . Deguelin, an Akt inhibitor, suppresses IkappaBalpha kinase activation leading to suppression of NF-kappaB-regulated gene expression, potentiation of apoptosis, and inhibition of cellular invasion[J]. J Immunol, 2006,177(8):5612-5622
doi: 10.4049/jimmunol.177.8.5612
[3] Bortul R, Tazzari PL, Billi AM, Tabellini G, Mantovani I, Cappellini A, Grafone T, Martinelli G, Conte R, Martelli AM . Deguelin, A PI3K/AKT inhibitor, enhances chemosensitivity of leukaemia cells with an active PI3K/AKT pathway[J]. Br J Haematol, 2005,129(5):677-686
doi: 10.1111/bjh.2005.129.issue-5
[4] Geeraerts B, Vanhoecke B, Vanden Berghe W, Philippé J, Offner F, Deforce D . Deguelin inhibits expression of IkappaBalpha protein and induces apoptosis of B-CLL cells in vitro[J]. Leukemia, 2007,21(8):1610-1618
doi: 10.1038/sj.leu.2404788
[5] Yi T, Li H, Wang X, Wu Z . Enhancement radiosensitization of breast cancer cells by deguelin[J]. Cancer Biother Radiopharm, 2008,23(3):355-362
doi: 10.1089/cbr.2007.0452 pmid: 18593368
[6] Jin Q, Feng L, Behrens C, Bekele BN, Wistuba II, Hong WK, Lee HY . Implication of AMP-activated protein kinase and Akt-regulated survivin in lung cancer chemopreventive activities of deguelin[J]. Cancer Res, 2007,67(24):11630-11639
doi: 10.1158/0008-5472.CAN-07-2401
[7] Tuoknaga E, Kimura Y, Mashino K, Oki E, Kataoka A, Ohno S, Morita M, Kakeji Y, Baba H, Maehara Y . Activation of PI3K/Akt signaling and hormone resistance in breast cancer[J]. Breast Cancer, 2006,13(2):137-144
doi: 10.2325/jbcs.13.137 pmid: 16755107
[8] Li X, Lu Y, Liang K, Liu B, Fan Z . Differential responses to doxorubicin-induced phosphorylation and activation of Akt in human breast cancer cells[J]. Breast Cancer Res, 2005,7(5):R589-R597
doi: 10.1186/bcr1259
[9] Soderlund K, Pérez-Tenorio G, Stal O . Activation of the phosphatidylinositol 3-kinase/Akt pathway prevents radiation-induced apoptosis in breast cancer cells[J]. Int J Oncol, 2005,26(1):25-32
[10] Casamayor A, Morrice NA, Alessi DR . Phosphorylation of Ser-241 is essential for the activity of 3-phosphoinositide-dependent protein kinase-1: identification of five sites of phosphorylation in vivo[J]. Biochem J, 1999,342(Pt 2):287-292
doi: 10.1042/bj3420287
[11] Das S, Dixon JE, Cho W . Membrane-binding and activation mechanism of PTEN[J]. Proc Natl Acad Sci U S A, 2003,100(13):7491-7496
doi: 10.1073/pnas.0932835100 pmid: 12808147
[12] Cross DA, Alessi DR, Cohen P, Andjelkovich M, Hemmings BA . Inhibition of glycogen synthase kinase-3 by insulin mediated by protein kinase B[J]. Nature, 1995,378(6559):785-789
doi: 10.1038/378785a0 pmid: 8524413
[13] Diehl JA, Cheng M, Roussel MF, Sherr CJ . Glycogen synthase kinase-3beta regulates cyclin D1 proteolysis and subcellular localization[J]. Genes Dev, 1998,12(22):3499-3511
doi: 10.1101/gad.12.22.3499
