Journal of Chinese Integrative Medicine ›› 2011, Vol. 9 ›› Issue (9): 1005-1013.doi: 10.3736/jcim20110912

• Original Experimental Research • Previous Articles     Next Articles

Anti-angiogenic effects of water extract of a formula consisting of Pulsatilla koreana, Panax ginseng and Glycyrrhiza uralensis

Jong-Min Kim1, Kyung-Soon Kim1, Yeon-Weol Lee1, Chong-Kwan Cho1, Hwa-Seung Yoo1(), Ji-Young Bang2, Eung-Yoon Kim2, In-Cheol Kang2,3,4()

  1. 1. East-West Cancer Center, Dunsan Oriental Medical Hospital of Daejeon University, Daejeon 302-122, Korea
    2. InnoPharmasrceen Inc., Hoseo University, Asan 336-795, Korea
    3. Department of Biological Science, College of Natural Science, Hoseo University, Asan 336-795, Korea
    4. BioChip Research Center, Hoseo University, Asan 336-795, Korea
  • Received:2011-03-23 Accepted:2011-04-25 Online:2011-09-20 Published:2011-09-15
  • Contact: Yoo Hwa-Seung,Kang In-Cheol;

Objective: This study aimed to investigate the anti-angiogenic effects of the water extract of Pulsatilla koreana (Yabe ex Nakai) Nakai ex T. Mori., Panax ginseng C.A. Meyer and Glycyrrhiza uralensis Fisch (WEPPG).

Methods: The effects of WEPPG on fibroblast growth factor (bFGF)-induced angiogenesis were evaluated by human umbilical vein endothelial cell (HUVEC) proliferation, adhesion, and migration assays. Capillary tube formation of HUVECs and bFGF-induced chick chorioallantoic membrane (CAM) angiogenesis were also observed. WEPPG was used to treat the HUVECs and CAMs, and then various activities such as proliferation, adhesion, migration, capillary tube formation and cell cycle proteins were analyzed.

Results: WEPPG significantly inhibited bFGF-induced HUVEC proliferation, adhesion, migration, and capillary tube formation. Signaling protein analysis showed up-regulated expressions of various proteins including cyclin A, p63 and KIP2 and down-regulated expressions of nibrin and focal adhesion kinase. The blood vessel formation in a CAM treated with WEPPG was markedly reduced compared with the control group.

Conclusion: These results suggested that the inhibition of angiogenesis by WEPPG can be an action mechanism for its anti-cancer effects.

Key words: Pulsatilla , Panax ginseng, Glycyrrhiza uralensis, plant extracts, angiogenesis inhibitors, cyclin A, focal adhesion protein-tyrosine kinases, in vitro

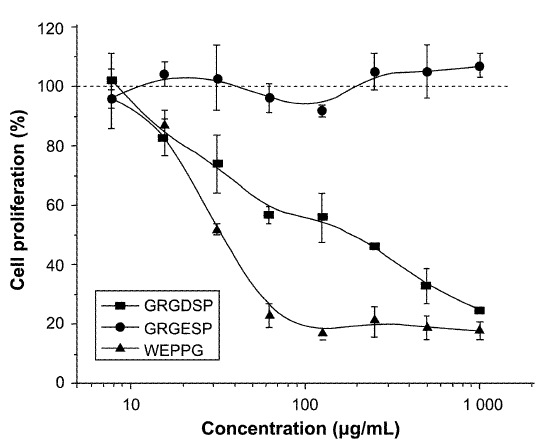

Figure 1

Inhibitory effect of WEPPG on bFGF-induced angiogenesis: HUVEC proliferation"

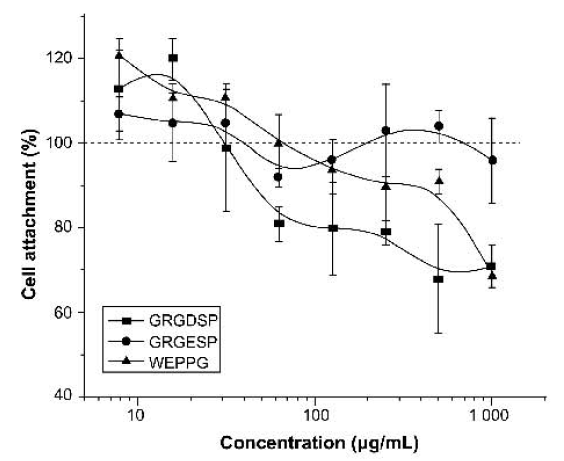

Figure 2

Inhibitory effect of WEPPG on bFGF-induced angiogenesis: HUVEC attachment"

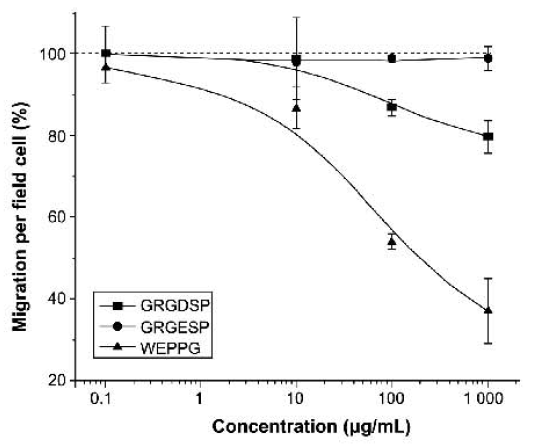

Figure 3

Inhibitory effect of WEPPG on bFGF-induced angiogenesis: HUVEC migration"

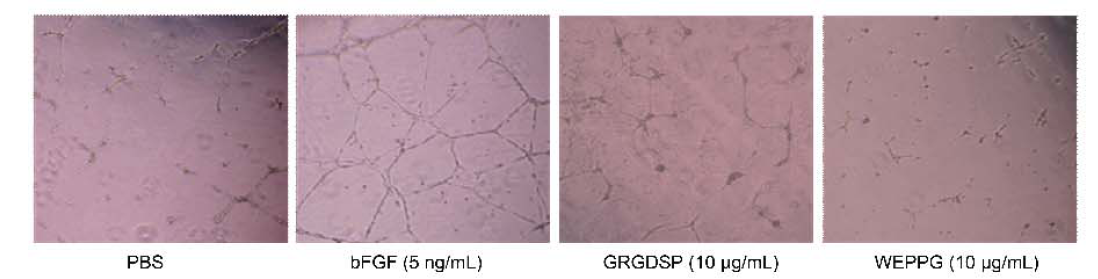

Figure 4

Inhibitory effects of WEPPG on capillary tube formation"

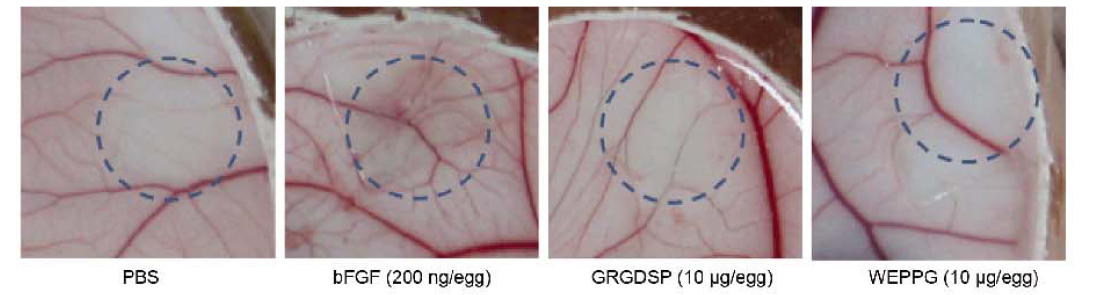

Figure 5

Inhibitory effects of WEPPG on bFGF-induced CAM angiogenesis"


Group n Number of anti-
angiogenic CAMs
CAM angiogenesis
inhibition (%)
PBS control 10 0 0
bFGF control 10 1 10
GRGDSP control 10 9 90
WEPPG-treated 9 8 89
[1] Fan TP, Jaggar R, Bicknell R . Controlling the vasculature: angiogenesis, anti-angiogenesis and vascular targeting of gene therapy[J]. Trends Pharmacol Sci, 1995,16(2):57-66
doi: 10.1016/S0165-6147(00)88979-8
[2] Bussolino F, Mantovani A, Persico G . Molecular mechanisms of blood vessel formation[J]. Trends Biochem Sci, 1997,22(7):251-256
doi: 10.1016/S0968-0004(97)01074-8 pmid: 9255066
[3] Redlitz A, Daum G, Sage EH . Angiostatin diminishes activation of the mitogen-activated protein kinases ERK-1 and ERK-2 in human dermal microvascular endothelial cells[J]. J Vasc Res, 1999,36(1):28-34
doi: 10.1159/000025623
[4] Teruyama K, Abe M, Nakano T, Iwasaka-Yagi C, Takahashi S, Yamada S, Sato Y . Role of transcription factor Ets-1 in the apoptosis of human vascular endothelial cells[J]. J Cell Physiol, 2001,188(2):243-252
doi: 10.1002/jcp.1112 pmid: 11424091
[5] Segura I, Serrano A, De Buitrago GG , González MA,Abad JL, Clavería C,Gómez L, Bernad A, Martínez-A C, Riese HH.Inhibition of programmed cell death impairs in vitro vascular-like structure formation and reduces in vivo angiogenesis[J]. FASEB J, 2002,16(8):833-841
doi: 10.1096/fj.01-0819com
[6] Chu XJ , DePinto W,Bartkovitz D,So SS,Vu BT,Packman K,Lukacs C,Ding Q,Jiang N,Wang K,Goelzer P,Yin X,Smith MA,Higgins BX,Chen Y,Xiang Q,Moliterni J,Kaplan G,Graves B,Lovey A,Fotouhi N .Discovery of [4-amino-2-(1-methanesulfonylpiperidin-4-ylamino)pyrimidin-5-yl](2,3-difluoro-6- methoxyphenyl)methanone(R547), a potent and selective cyclin-dependent kinase inhibitor with significant in vivo antitumor activity[J]. J Med Chem, 2006,49(22):6549-6560
doi: 10.1021/jm0606138
[7] Raghu H, Sodadasu PK, Malla RR, Gondi CS, Estes N, Rao JS . Localization of uPAR and MMP-9 in lipid rafts is critical for migration, invasion and angiogenesis in human breast cancer cells[J]. BMC Cancer, 2010,10:647
doi: 10.1186/1471-2407-10-647
[8] Mitra SK, Schlaepfer DD . Integrin-regulated FAK-Src signaling in normal and cancer cells[J]. Curr Opin Cell Biol, 2006,18(5):516-523
doi: 10.1016/ pmid: 16919435
[9] Gurevich F, Perazella MA . Renal effects of anti-angiogenesis therapy: update for the internist[J]. Am J Med, 2009,122(4):322-328
doi: 10.1016/j.amjmed.2008.11.025 pmid: 19332223
[10] Kang WK, Park YS, Lee DH, Kwon KⅡ . Pharmacokinetics of anticancer agent SB-31 in rats & rabbits and the cardiovascular effect on the isolated perfused rat heart & blood coagulation[J]. Kor J Clin Pharm, 1998,8(2):122-132
[11] Kim SY, Kim SB . Anti-tumor effects of extracts of Pulsatilla koreana(SB-31) in vitro[J]. J Kor Cancer Assoc, 1994,26(6):959-963
[12] Bang SC, Lee JH, Song GY, Kim DH, Yoon MY, Ahn BZ . Antitumor activity of Pulsatilla koreana saponins and their structure-activity relationship[J]. Chem Pharm Bull (Tokyo), 2005,53(11):1451-1454
doi: 10.1021/ja044093m pmid: 16272730
[13] Wickstrom SA, Alitalo K, Keski-Oja J . An endostatin-derived peptide interacts with integrins and regulates actin cytoskeleton and migration of endothelial cells[J]. J Biol Chem, 2004,279(19):20178-20185
doi: 10.1074/jbc.M312921200
[14] Cattaneo MG, Pola S, Francescato P, Chillemi F, Vicentini LM . Human endostatin-derived synthetic peptides possess potent antiangiogenic properties in vitro and in vivo[J]. Exp Cell Res, 2003,283(2):230-236
doi: 10.1016/S0014-4827(02)00057-5
[15] Brooks PC, Montgomery AM, Rosenfeld M, Reisfeld RA, Hu T, Klier G, Cheresh DA . Integrin αvβ3 antagonists promote tumor regression by inducing apoptosis of angiogenic blood vessels[J]. Cell, 1994,79(7):1157-1164
doi: 10.1016/0092-8674(94)90007-8
[16] Ferguson TA, Mizutani H, Kupper TS . Two integrin-binding peptides abrogate T cell-mediated immune responses in vivo[J]. Proc Natl Acad Sci U S A, 1991,88(18):8072-8076
doi: 10.1073/pnas.88.18.8072 pmid: 1896454
[17] Hamburger V. A manual of experimental embryology(Revised ed)[M]. Chicago: University of Chicago Press, 1960,( Revised ed):143-173
[18] Ajjappala BS, Kim MS, Kim EY, Kim JH, Kang IC, Baek KH . Protein chip analysis of pluripotency-associated proteins in NIH3T3 fibroblast[J]. Proteomics, 2009,9(16):3968-3978
doi: 10.1002/pmic.200800611 pmid: 19701907
[19] Andersson O, Kozlowski M, Garachtchenko T, Nikoloff C, Lew N, Litman DJ, Chaga G . Determination of relative protein abundance by internally normalized ratio algorithm with antibody arrays[J]. J Proteome Res, 2005,4(3):758-767
doi: 10.1021/pr049776f
[20] Kim Y, Bang SC, Lee JH, Ahn BZ . Pulsatilla saponin D: the antitumor principle from Pulsatilla koreana[J]. Arch Pharm Res, 2004,27(9):915-918
doi: 10.1007/BF02975843
[21] Parsons JT, Martin KH, Slack JK, Taylor JM, Weed SA . Focal adhesion kinase: a regulator of focal adhesion dynamics and cell movement[J]. Oncogene, 2000,19(49):5606-5613
doi: 10.1038/sj.onc.1203877 pmid: 11114741
[22] Zhao J, Zheng C, Guan J . Pyk2 and FAK differentially regulate progression of the cell cycle[J]. J Cell Sci, 2000,113(Pt 17):3063-3072
doi: 10.1007/BF02703939 pmid: 10934044
[23] Wang S, Hasham MG, Isordia-Salas I, Tsygankov AY, Colman RW, Guo YL . Upregulation of Cdc2 and cyclin A during apoptosis of endothelial cells induced by cleaved high-molecular-weight kininogen[J]. Am J Physiol Heart Circ Physiol, 2003,284(6):H1917-H1923
doi: 10.1152/ajpheart.00861.2002
[24] Pardini B, Naccarati A, Polakova V, Smerhovsky Z, Hlavata I, Soucek P, Novotny J, Vodickova L, Tomanova V, Landi S, Vodicka P . NBN 657del5 heterozygous mutations and colorectal cancer risk in the Czech Republic[J]. Mutat Res, 2009,666(1-2):64-67
doi: 10.1016/j.mrfmmm.2009.04.004 pmid: 19393249
[25] Carney JP, Maser RS, Olivares H, Davis EM, Le Beau M , Yates JR 3rd, Hays L, Morgan WF, Petrini JH.The hMre11/hRad50 protein complex and Nijmegen breakage syndrome: linkage of double-strand break repair to the cellular DNA damage response[J]. Cell, 1998,93(3):477-486
doi: 10.1016/S0092-8674(00)81175-7
[26] Piekutowska-Abramczuk D, Ciara E, Popowska E, Grajkowska W, Dembowska-Bagińska B, Kowalewska E, Czajńska A, Perek-Polnik M, Roszkowski M, Syczewska M, Krajewska-Walasek M, Perek D, Chrzanowska KH . The frequency of NBN molecular variants in pediatric astrocytic tumors[J]. J Neurooncol, 2010,96(2):161-168
doi: 10.1007/s11060-009-9958-5 pmid: 19629396
[27] Schmit TL, Ledesma MC, Ahmad N . Modulating polo-like kinase 1 as a means for cancer chemoprevention[J]. Pharm Res, 2010,27(6):989-998
doi: 10.1007/s11095-010-0051-8 pmid: 2873067
