Journal of Chinese Integrative Medicine ›› 2011, Vol. 9 ›› Issue (9): 1014-1021.doi: 10.3736/jcim20110913

• Original Experimental Research • Previous Articles     Next Articles

Scutellarin benzyl ester partially secured the ischemic injury by its anti-apoptosis mechanism in cardiomyocytes of neonatal rats

Hao Dai1, Jun Gu1,2, Ling-zhi Li1,2, Li-mei Yang1, Hui Liu3, Jian-yu Li1,2()

  1. 1. Division of Pharmaceutical Chemistry,Medical College of Chinese People’s Armed Police Forces,Tianjin 300162, China;
    2. Tianjin Key Laboratory of Occupational and Environmental Hazards Biomarkers, Tianjin 300162, China
    3. Institute of Hepatobiliary Diseases, Third Central Hospital of Tianjin Medical University, Tianjin 300170, China
  • Received:2011-04-14 Accepted:2011-05-27 Online:2011-09-20 Published:2011-09-15
  • Contact: Li Jian-yu

Objective: To investigate the protective effects of scutellarin benzyl ester on neonatal rats’ cardiomyocytes injured by ischemia and its anti-apoptosis mechanism.

Methods: The cardiomyocytes in primary culture were prepared from ventricular tissue of 1- to 3-day-old Sprague-Dawley rats and the cells in good condition were assigned to five groups: control group, ischemic model group and three scutellarin benzyl ester groups (doses of 100, 50 and 25 μmol/L, respectively). The model of ischemic injury was established in the primary culture of cardiomyocytes under glucose-free anoxic condition. After ischemia for 6 h, the metabolic ability of the cells was detected by MTT (3-(4,5-dimethylthiazol-2-yl)-2,5-diphenyl-tetrazolium bromide) assay and the activity of lactate dehydrogenase (LDH) in the media was measured by biochemistry approaches. The nuclear damage was revealed by Hoechst-propidium iodide staining. The percentage of apoptotic cells was monitored by flow cytometry. The expression levels of cytochrome c and caspase-3 mRNAs and proteins were determined by reverse transcription-polymerase chain reaction and Western blotting, respectively.

Results: After exposure to ischemic condition, the cell viability of the model group was degraded compared with that of the control group (P<0.01) and scutellarin benzyl ester (high and medium doses) could attenuate the loss of cell viability induced by ischemia (P<0.01 and P<0.05). In addition, each dose of scutellarin benzyl ester could significantly reduce the release of LDH from cardiomyocytes injured by ischemia (P<0.01). In morphology, the injured nuclei presented significant changes such as condensation of chromatin, and shrinkage and fragmentation of nuclei, which could be attenuated remarkably by pretreatment with scutellarin benzyl ester. Furthermore, scutellarin benzyl ester could significantly decrease the percentage of apoptosis induced by ischemia (P<0.01) and inhibit the increased expression levels of cytochrome c and caspase-3 mRNAs and proteins (P<0.01).

Conclusion: Scutellarin benzyl ester has a remarkable protective effect against myocardial ischemic injury and the protective mechanism may associate with its anti-apoptosis effect by inhibiting cytochrome c release and caspase-3 activation.

Key words: Erigeron breviscapus, scutellarin benzyl ester, prodrugs, myocytes, cardiac, ischemia, apoptosis, rats


Group n OD value
Control 6 0.517±0.054
Model 6 0.215±0.025**
High-dose scutellarin benzyl ester
(100 μmol/L)
6 0.287±0.023**△△
Medium-dose scutellarin benzyl ester
(50 μmol/L)
6 0.253±0.023**△
Low-dose scutellarin benzyl ester
(25 μmol/L)
6 0.210±0.021**


Group n LDH
Control 6 78.8±12.9
Model 6 288.1±30.7**
High-dose scutellarin benzyl ester
(100 μmol/L)
6 64.2±22.9△△
Medium-dose scutellarin benzyl ester
(50 μmol/L)
6 101.4±22.7△△
Low-dose scutellarin benzyl ester
(25 μmol/L)
6 141.3±23.1**△△

Figure 1

Changes of nuclei tested by Hoechst-prodium iodide staining (Microscopy, ×400)A: Control; B: Model; C: Scutellarin benzyl ester (100 μmol/L)."

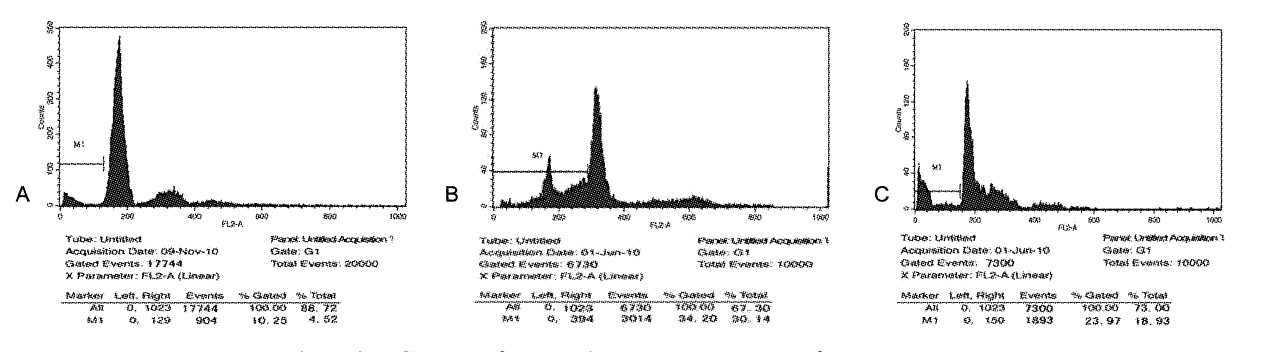

Figure 2

Changes of apoptosis percentage tested by flow cytometryA: Control group; B: Model group; C: Scutellarin benzyl ester (100 μmol/L) group."


Group n Apoptosis percentage
Control 6 4.52±0.29
Model 6 30.14±1.89**
High-dose scutellarin benzyl ester
(100 μmol/L)
6 18.93±1.45**△△
Medium-dose scutellarin benzyl ester
(50 μmol/L)
6 22.10±1.27**△△
Low-dose scutellarin benzyl ester
(25 μmol/L)
6 29.89±2.12**△△

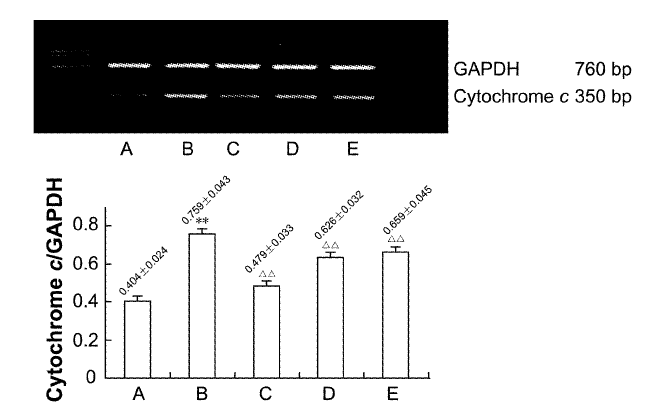

Figure 3

Changes in the expression of cytochrome c mRNA tested by RT-PCRA: Control group; B: Model group; C: Scutellarin benzyl ester (100 μmol/L) group; D: Scutellarin benzyl ester (50 μmol/L) group; E: Scutellarin benzyl ester (25 μmol/L) group. **P<0.01, vs control group; △△P<0.01, vs model group. RT-PCR: reverse transcription-polymerase chain reaction; GAPDH: glyceraldehyde-3-phosphate dehydrogenase."

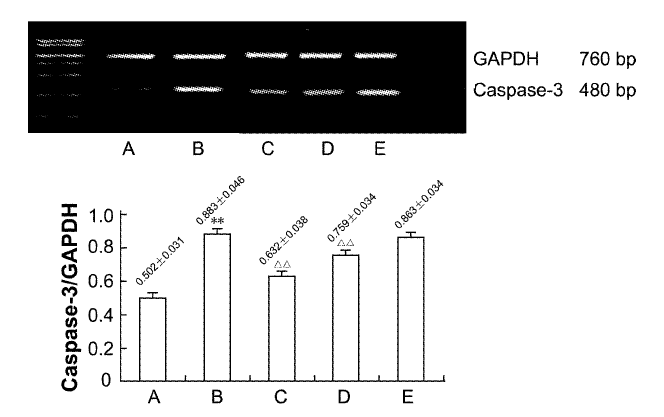

Figure 4

Changes in the expression of caspase-3 mRNA tested by RT-PCRA: Control group; B: Model group; C: Scutellarin benzyl ester (100 μmol/L) group; D: Scutellarin benzyl ester (50 μmol/L) group; E: Scutellarin benzyl ester (25 μmol/L) group. **P<0.01, vs control group; △△P<0.01, vs model group. RT-PCR: reverse transcription-polymerase chain reaction; GAPDH: glyceraldehyde-3-phosphate dehydrogenase."

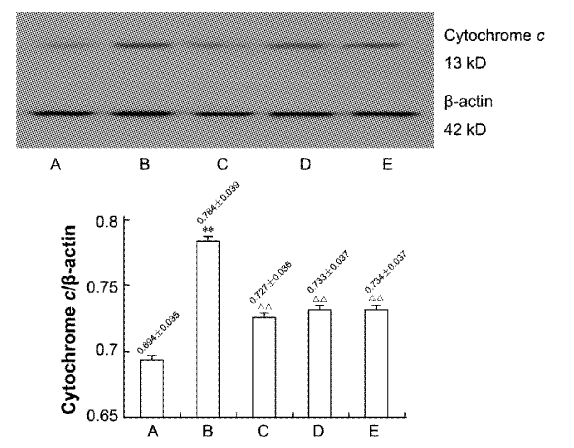

Figure 5

Changes in the expression of cytochrome c protein tested by Western blotting A: Control group; B: Model group; C: Scutellarin benzyl ester (100 μmol/L) group; D: Scutellarin benzyl ester (50 μmol/L) group; E: Scutellarin benzyl ester (25 μmol/L) group. **P<0.01, vs control group; △△P<0.01, vs model group."

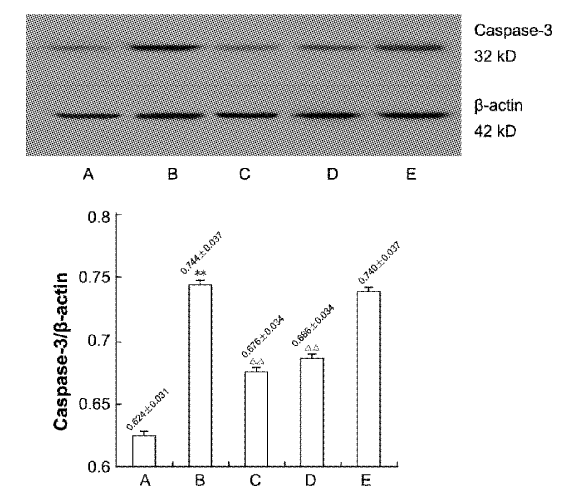

Figure 6

Changes in the expression of caspase-3 protein tested by Western blotting A: Control group; B: Model group; C: Scutellarin benzyl ester (100 μmol/L) group; D: Scutellarin benzyl ester (50 μmol/L) group; E: Scutellarin benzyl ester (25 μmol/L) group. **P<0.01, vs control group; △△P<0.01, vs model group."

[1] Liu H, Yang X, Tang R, Liu J, Xu H . Effect of scutellarin on nitric oxide production in early stages of neuron damage induced by hydrogen peroxide[J]. Pharmacol Res, 2005,51(3):205-210
doi: 10.1016/j.phrs.2004.09.001
[2] Lu J, Cheng C, Zhao X, Liu Q, Yang P, Wang Y, Luo G . PEG-scutellarin prodrugs: synjournal, water solubility and protective effect on cerebral ischemia/reperfusion injury[J]. Eur J Med Chem, 2010,45(5):1731-1738
doi: 10.1016/j.ejmech.2010.01.006
[3] Gao ZX, Huang DY, Li HX, Zhang LN, Lv YH, Cui HD, Zheng JH . Scutellarin promotes in vitro angiogenesis in human umbilical vein endothelial cells[J]. Biochem Biophys Res Commun, 2010,400(1):151-156
doi: 10.1016/j.bbrc.2010.08.034 pmid: 20709020
[4] van Gelder J, Shafiee M, De Clercq E, Penninckx F, van den Mooter G, Kinget R, Augustijns P . Species-dependent and site-specific intestinal metabolism of ester prodrugs[J]. Int J Pharm, 2000,205(1-2):93-100
doi: 10.1016/S0378-5173(00)00507-X pmid: 11000545
[5] Yang LM, Gu J, Li JY, Dai H, Li LZ . Synjournal of scutellarin derivatives and study of their anti-heart ischemia activities in rats[J]. Tianjin Zhong Yi Yao, 2010,27(3):240-242
杨丽梅, 顾军, 李建宇, 代皓, 李灵芝 . 灯盏乙素衍生物的合成及抗大鼠心肌缺血活性研究[J]. 天津中医药, 2010,27(3):240-242
[6] Cao F, Guo JX, Ping QN, Liao ZG . Prodrugs of scutellarin: ethyl, benzyl and N,N-diethylglycolamide ester synjournal, physicochemical properties, intestinal metabolism and oral bioavailability in the rats[J]. Eur J Pharm Sci, 2006,29(5):385-393
doi: 10.1016/j.ejps.2006.07.007
[7] Brunotto M, Malberti A, Zarate AM, Barra JL, Calderón O, Pinas E, Plavnik L, Crosa M . Early phenotypic and genotypic alterations in submandibular gland oncogenesis in rats[J]. Acta Odontol Latinoam, 2006,19(1):13-21
pmid: 17121194
[8] Li JY, Li LZ, Gong HY, Li Y, Zhang XN . Effect of Potentilla anserina L. on cardiomyocyte apoptosis induced by hypoxia[J]. Zhonghua Lao Nian Xin Nao Xue Guan Bing Za Zhi, 2007,9(9):619-622
doi: 10.3969/j.issn.1009-0126.2007.09.015
李建宇, 李灵芝, 龚海英, 李怡, 张新宁 . 蕨麻对缺氧诱导心肌细胞凋亡的影响[J]. 中华老年心脑血管病杂志, 2007,9(9):619-622
doi: 10.3969/j.issn.1009-0126.2007.09.015
[9] Li JY, Li LZ, Zhang YL, Zhang XN, Gong HY . Protective effect of Potentilla anserina L. on hypoxia injury in neonatal rats cardiomyocytes[J]. Zhongguo Xin Yao Za Zhi, 2007,16(12):944-946
李建宇, 李灵芝, 张永亮, 张新宁, 龚海英 . 蕨麻醇提物对心肌细胞缺氧损伤的保护作用[J]. 中国新药杂志, 2007,16(12):944-946
[10] Li JY, Li Y, Gong HY, Zhao XB, Li LZ . Protective effects of n-butanol extract of Potentilla anserina on acute myocardial ischemic injury in mice[J]. J Chin Integr Med, 2009,7(1):48-52
李建宇, 李怡, 龚海英, 赵晓博, 李灵芝 . 蕨麻正丁醇提取部位对小鼠急性心肌缺血损伤的保护作用[J]. 中西医结合学报, 2009,7(1):48-52
[11] Tang YH, Zhang SP, Liang Y, Deng CQ . Effects of Panax notoginseng saponins on mRNA expressions of interleukin-1β, its correlative factors and cysteinyl-aspartate specific protease after cerebral ischemia-reperfusion in rats[J]. J Chin Integr Med, 2007,5(3):328-332
doi: 10.3969/j.issn.1005-9903.2010.16.038
唐映红, 张淑萍, 梁燕, 邓常清 . 三七总皂苷对大鼠脑缺血再灌注后白细胞介素-1β和其相关因子及半胱氨酸天冬氨酸特异性蛋白酶表达的影响[J]. 中西医结合学报, 2007,5(3):328-332
doi: 10.3969/j.issn.1005-9903.2010.16.038
[12] Rong F, Peng Z, Ye MX, Zhang QY, Zhao Y, Zhang SM, Guo HT, Hui B , Wang infarction after ischemia/reperfusion are attenuated by κ-opioid receptor agonist[J]. Arch Med Res, 2009,40(4):227-234
doi: 10.1016/j.arcmed.2009.04.009
[13] Sodha NR, Clements RT, Feng J, Liu Y, Bianchi C, Horvath EM, Szabo C, Sellke FW . The effects of therapeutic sulfide on myocardial apoptosis in response to ischemia-reperfusion injury[J]. Eur J Cardiothorac Surg, 2008,33(5):906-913
doi: 10.1016/j.ejcts.2008.01.047
[14] Celhar T, Batista Napotnik T, Obreza A, Zega A, Anderluh PS, Kikelj D, Mlinaric-Rascan I . Azaphenylalanine-based serine protease inhibitors induce caspase-mediated apoptosis[J]. Eur J Pharmacol, 2009,602(1):15-22
doi: 10.1016/j.ejphar.2008.11.008 pmid: 19032950
[15] Su BH, Chiu HY, Soga T, Lin KJ, Hsu CT . Ulinastatin alone does not reduce caspase 3-mediated apoptosis in protease-positive Aeromonas hydrophilia-induced sepsis[J]. J Formos Med Assoc, 2007,106(2):97-104
doi: 10.1016/S0929-6646(09)60224-2
