Journal of Chinese Integrative Medicine ›› 2011, Vol. 9 ›› Issue (4): 414-422.doi: 10.3736/jcim20110411

• Original Experimental Research • Previous Articles     Next Articles

Inhibitory effects of traditional Chinese herbal medicine Tanreqing injection on proliferation of leukemia cells in vitro and the potential mechanisms

Bo Yang1, Xue-chun Lu1, Feng Zhang2, Yang Liu1, Hong-li Zhu1()

  1. 1. Department of Geriatric Hematology, Chinese PLA General Hospital, Beijing 100853, China
    2. Beijing Institute of Genomics, Chinese Academy of Sciences, Beijing 100029, China
  • Received:2010-09-28 Accepted:2010-12-28 Online:2011-04-20 Published:2011-04-15
  • Contact: Zhu Hong-li

Objective: The present study investigates the effects of Tanreqing injection, a compound Chinese herbal medicine, on the proliferation of leukemia cells in vitro and discusses the potential mechanisms.
Methods: Tanreqing injection was diluted to a series of concentrations (1∶2, 1∶4, 1∶8, 1∶16, 1∶32, 1∶64, 1∶128, 1∶256 and 1∶512) by volume and then independently applied to treat chronic myeloid leukemia K562 cells and T cell acute lymphocytic leukemia Molt4 cells at the proliferative stage. Cell growth was observed at different time intervals under a microscope. Cell proliferation was determined by cell counting kit-8 assay and the survival curve was delineated. The inhibitory rate and the half inhibitory concentration (IC50) were calculated. Molt4 cells were stained with propidium iodide (PI) and PI/Annexin V and then the cell cycle and apoptosis were analyzed by using flow cytometry. In addition, a real-time quantitative polymerase chain reaction was subjected to detect the expressions of apoptosis-related genes (bcl-2 and caspase-3) after Tanreqing treatment.
Results: Tanreqing injection had inhibitory effects on the proliferation of K562 cells and Molt4 cells. The most toxic concentrations were observed between 1∶2 and 1∶16 where cells were almost necrotic. The inhibitory effect manifested in a concentration- and time-dependent manner. The IC50 of K562 and Molt4 was 1∶333 and 1∶142, respectively. After 1∶32 Tanreqing injection treatment for 72 h, the number of Molt4 cells in the S phase significantly decreased (P<0.05), and the apoptosis rate markedly increased (P<0.05). In addition, increased caspase-3 expression and decreased bcl-2 expression were also observed (P<0.05).
Conclusion: Tanreqing injection can both inhibit the proliferation and promote the apoptosis of leukemia cells in vitro, whereby the potential mechanism seems to be mediated in part by decreasing S phase ratio, down-regulating bcl-2 expression and up-regulating caspase-3 expression.

Key words: Tanreqing injection, leukemia, K562 cells, Molt4 cells, cell proliferation, apoptosis

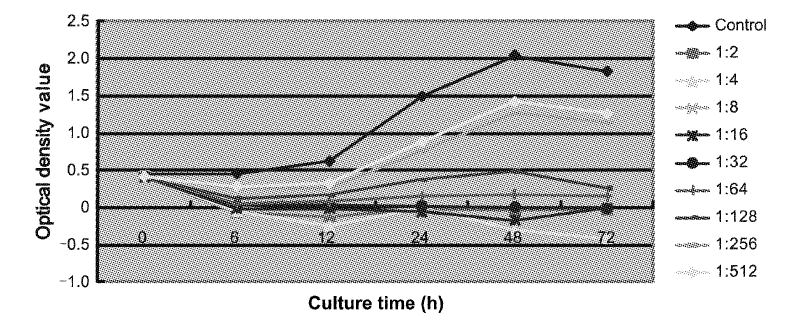

Figure 1

Growth curve of K562 cells after treatment with Tanreqing injection of different concentrations"

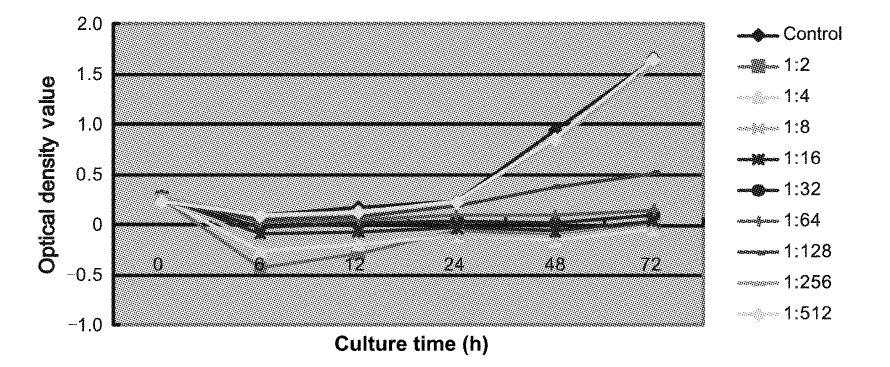

Figure 2

Growth curve of Molt4 cells after treatment with Tanreqing injection of different concentrations"


Figure 3

Microscopic observation of K562 cell growth after treatment with Tanreqing injection of different concentrations for 24 h (×100) At the concentrations of 1∶2 (B), 1∶4 (C), 1∶8 (D), and 1∶16 (E), cell death was obvious. At the concentrations of 1∶32 (F) and 1∶64 (G), cell growth was unfavorable. At the concentrations of 1∶128 (H), 1∶256 (I) and 1∶512 (J), cell growth was not significantly different from that in the control group (A)."

Figure 4

Microscopic observation of Molt4 cell growth after treatment with Tanreqing injection of different concentrations for 48 h (×100) At the concentrations of 1∶2 (B), 1∶4 (C), 1∶8 (D), and 1∶16 (E), cell death was obvious. At the concentrations of 1∶32 (F) and 1∶64 (G), cell growth was unfavorable. At the concentrations of 1∶128 (H), 1∶256 (I) and 1∶512 (J), cell growth was not significantly different from that in the control group (A)."

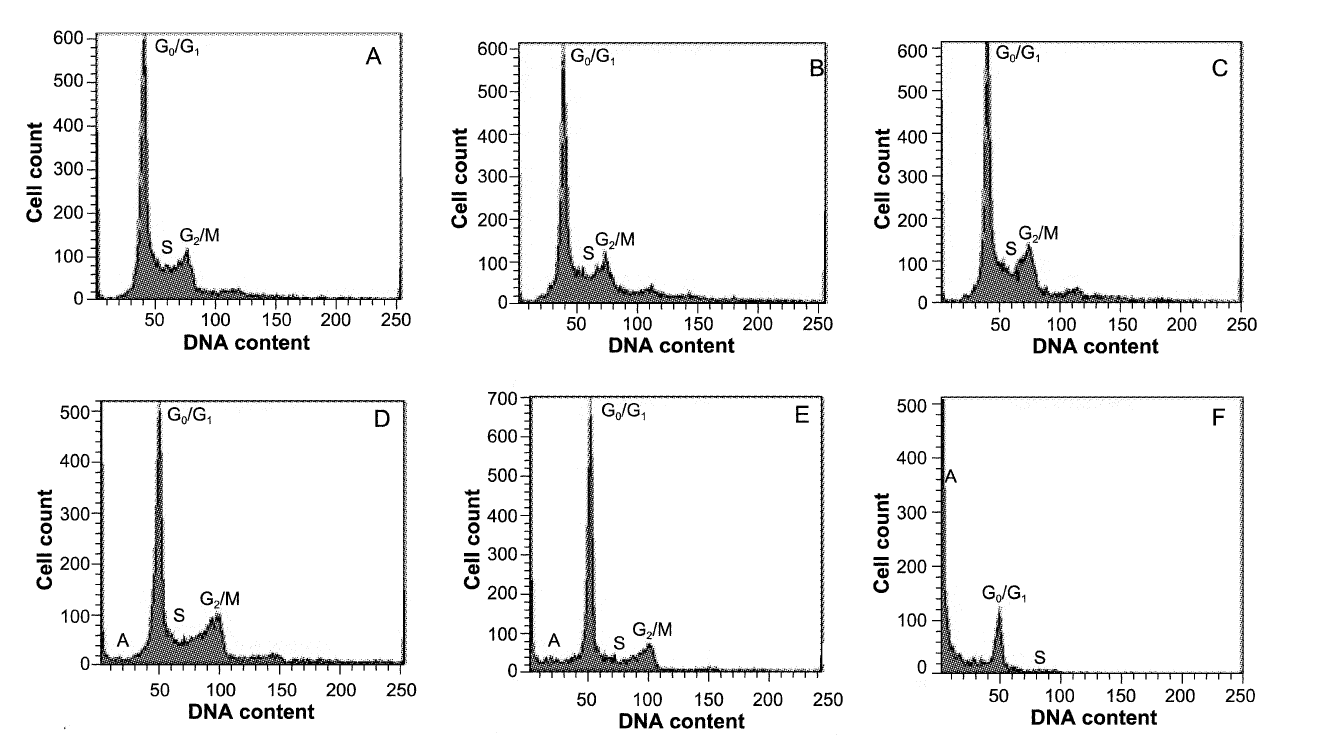

Figure 5

Cell cycle distribution of Molt4 cells treated with Tanreqing injection of different concentrations for 72h A: Control; B: 1∶512; C: 1∶256; D: 1∶128; E: 1∶64; F: 1∶32. “A” in the figures D, E and F represents apoptotic cells. The results show that cells in S phase gradually decreased and apoptotic cells appeared along with gradually increased concentration of Tanreqing injection."

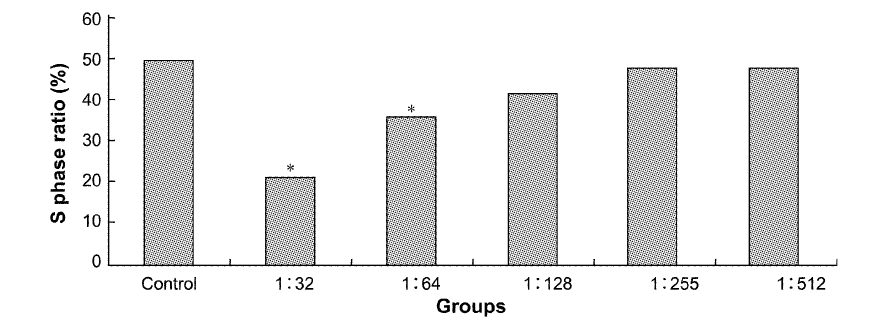

Figure 6

Proportion of Molt4 cells in the S phase after treatment with Tanreqing injection of different concentrations for 72 h *P<0.05, vs control group."

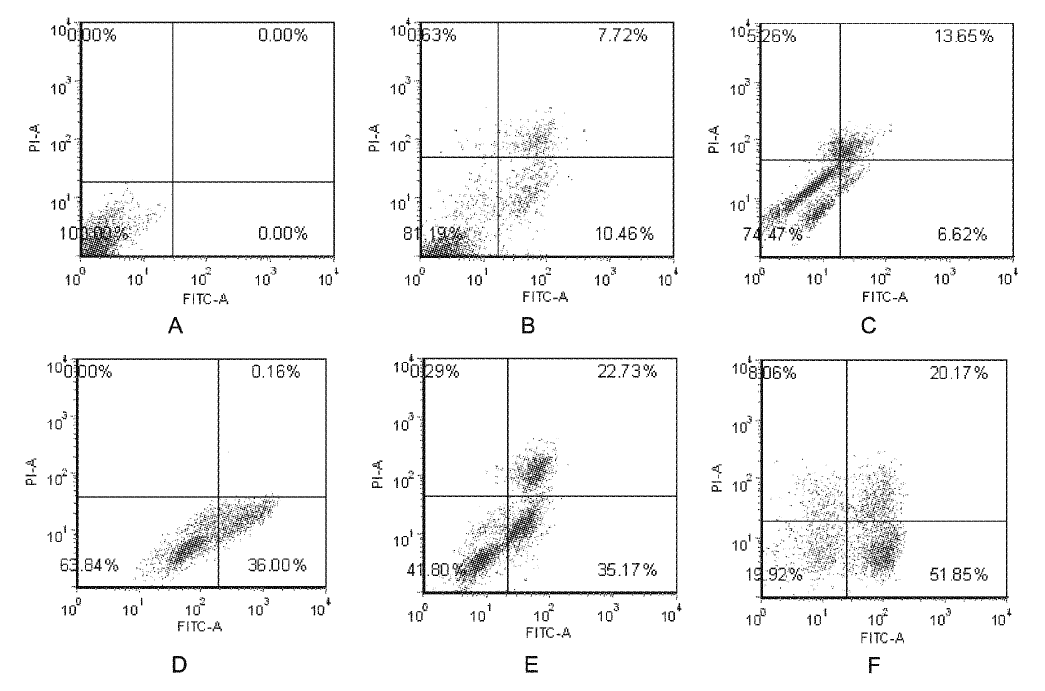

Figure 7

Apoptotic Molt4 cells after treatment with Tanreqing injection of different concentrations for 72 h detected by flow cytometry after PI/Annexin V staining A: Control; B: 1∶512; C: 1∶256; D: 1∶128; E: 1∶64; F: 1∶32. The upper right quadrant represents cells positive for both Annexin V and PI; the lower right quadrant represents cells positive for Annexin V but negative for PI. PI-A: propidium iodide/Annexin V; FITC-A: fluorescein isothiocyanate-Annexin V."




[1] Wang CQ . Components and effects of Tanreqing injection[J]. Xian Dai Yi Yao Wei Sheng, 2006,22(5):720
王春全 . 痰热清注射液的方解及功效[J]. 现代医药卫生, 2006,22(5):720
[2] Zang YZ . Efficacy of Tanreqing injection in the treatment of fever in patients with myelodysplastic syndrome[J]. Zhong Yuan Yi Kan, 2006,33(7):79
doi: 10.3760/cma.j.issn.1674-4756.2006.07.056
臧玉柱 . 痰热清治疗骨髓增生异常综合征患者发热临床疗效观察[J]. 中原医刊, 2006,33(7):79
doi: 10.3760/cma.j.issn.1674-4756.2006.07.056
[3] Zhou Y, Wei YJ, Liu JF . Efficacy of Tanreqing injection in the treatment of pulmonary infection in patients with hematological malignancies[J]. Ji Ceng Yi Xue Lun Tan, 2006,10(20):882-883
周燕, 魏玉静, 刘建芳 . 痰热清治疗恶性血液病并肺部感染的疗效观察[J]. 基层医学论坛, 2006,10(20):882-883
[4] Zheng JS, Gu LG, Li PT, Zhao H . Effect of Tanreqing Injection on immune function of influenza virus FM1 infected mice[J]. Beijing Zhong Yi Yao Da Xue Xue Bao, 2006,29(11):756-759
doi: 10.3321/j.issn:1006-2157.2006.11.011
郑金粟, 顾立刚, 李澎涛, 赵慧 . 痰热清注射液对流感病毒FM1感染小鼠免疫功能影响的研究[J]. 北京中医药大学学报, 2006,29(11):756-759
doi: 10.3321/j.issn:1006-2157.2006.11.011
[5] Huang ZN, Huang ZY . Observation of Tanreqing injection in the prevention of concomitant respiratory tract infection in patients with hematological malignancies[J]. Youjiang Yi Xue, 2009,37(1):36-37
doi: 10.3969/j.issn.1003-1383.2009.01.018
黄枝宁, 黄枝优 . 痰热清注射液预防血液肿瘤患者并发呼吸道感染效果观察[J]. 右江医学, 2009,37(1):36-37
doi: 10.3969/j.issn.1003-1383.2009.01.018
[6] Ma JQ . Role of Tanreqing injection in the late stage radiotherapy of thoracic tumor[J]. Zhejiang Zhong Yi Za Zhi, 2006,41(6):369
doi: 10.3969/j.issn.0411-8421.2006.06.040
马建青 . 痰热清在胸部肿瘤后程放疗中的应用[J]. 浙江中医杂志, 2006,41(6):369
doi: 10.3969/j.issn.0411-8421.2006.06.040
[7] Zhao HL, Wang PY, Li W, Fan YJ, Wang B . Tanreqing injection in combination with antibiotics in the treatment of pulmonary infection in patients with tumor[J]. Yi Yao Lun Tan Za Zhi, 2005,26(21):60
doi: 10.3969/j.issn.1672-3422.2005.21.036
赵宏亮, 王鹏远, 李伟, 范英杰, 王彬 . 痰热清联合抗生素治疗肿瘤患者肺部感染[J]. 医药论坛杂志, 2005,26(21):60
doi: 10.3969/j.issn.1672-3422.2005.21.036
[8] Shi GJ, Sun HX . Treatment for 42 cases of carcinous fever by Tanreqing injection[J]. Henan Zhong Yi, 2005,25(9):25
史国军, 孙宏新 . 痰热清注射液治疗癌性发热42例[J]. 河南中医, 2005,25(9):25
[9] Meng M, Chen DZ, Wu BY, Xu WJ, Wu SH, Liu CY . Study of the effect of Tan Re Qing Injection on immune function of the mice infected with influenza virus FM1[J]. Hebei Da Xue Xue Bao Zi Ran Ke Xue Ban, 2006,26(5):529-535
doi: 10.3969/j.issn.1000-1565.2006.05.019
孟明, 陈冬志, 武变瑛, 许文杰, 吴素焕, 刘春颖 . 痰热清注射液对流感病毒感染小鼠免疫功能的影响[J]. 河北大学学报(自然科学版), 2006,26(5):529-535
doi: 10.3969/j.issn.1000-1565.2006.05.019
[10] Kuang JR, Yan P, Luo ZG . Application of Tanreqing in malignant tumor chemotherapy[J]. Yi Yao Lun Tan Za Zhi, 2007,28(5):42-43
况建荣, 燕平, 骆志国 . 痰热清在恶性肿瘤化疗中的应用[J]. 医药论坛杂志, 2007,28(5):42-43
[11] Zhang L . Efficacy of Tanreqing injection in combination with reduced glutathione in the treatment of liver dysfunction[J]. Zhongguo Zhong Yi Ji Zheng, 2008,17(10):1370-1372
张丽 . 痰热清联合还原型谷胱甘肽治疗肝功能损害疗效观察[J]. 中国中医急症, 2008,17(10):1370-1372
[12] Li PT, Zhang N, Zhu XL, Xu Y, Xie LJ, Wang B, Pang CH, Jia X, Wang XD . Protective effects of Tanreqing on lipopolysaccharide-induced acute lung injury in rats[J]. Zhongguo Yao Xue Za Zhi, 2005,40(7):518-521
doi: 10.3321/j.issn:1001-2494.2005.07.013
李澎涛, 张娜, 朱晓磊, 徐雅, 谢利军, 王冰, 庞春红, 贾旭, 王旭丹 . 痰热清注射液抗内毒素所致急性肺损伤的实验研究[J]. 中国药学杂志, 2005,40(7):518-521
doi: 10.3321/j.issn:1001-2494.2005.07.013
[13] Zhao XJ . Efficacy of Tanreqing injection in the treatment of cancerous fever[J]. Yi Yao Chan Ye Zi Xun, 2005,2(11):80
doi: 10.3969/j.issn.1673-7210.2005.11.071
赵新菊 . 痰热清注射液治疗癌性发热的疗效观察[J]. 医药产业资讯, 2005,2(11):80
doi: 10.3969/j.issn.1673-7210.2005.11.071
[14] Li W, Mao B, Wang G, Wang L, Chang J, Zhang Y, Wang MH, Guo J, Zheng YQ . Effect of Tanreqing Injection(痰热清注射液) on treatment of acute exacerbation of chronic obstructive pulmonary disease with Chinese medicine syndrome of retention of phlegm and heat in Fei(肺)[J]. Chin J Integr Med, 2010,16(2):131-137
doi: 10.1007/s11655-010-0131-y
[15] Tian YP, Hou MH, Li X . Effects of Tanreqing injection in the treatment of 52 cases of viral pneumonia[J]. Lin Chuang Fei Ke Za Zhi, 2004,9(5):505
田雅萍, 侯明惠, 李祥 . 痰热清注射液治疗病毒性肺炎52例临床观察[J]. 临床肺科杂志, 2004,9(5):505
[16] Costantini P, Jacotot E, Decaudin D, Kroemer G . Mitochondrion as a novel target of anticancer chemotherapy[J]. J Natl Cancer Inst, 2000,92(13):1042-1053
doi: 10.1093/jnci/92.13.1042 pmid: 10880547
[17] Reed JC . Double identity for proteins of the Bcl-2 family[J]. Nature, 1997,387(6635):773-776
doi: 10.1038/42867
