Study of traditional Chinese medicine pulse signals in patients with coronary heart disease based on recurrence quantification analysis

Rui Guo1, Yi-qin Wang1(), Jian-jun Yan2, Han-xia Yan1, Yu-ci Yang1

  1. 1. Laboratory of Information Access and Synthesis of Traditional Chinese Medicine Four Diagnosis, Shanghai University of Traditional Chinese Medicine, Shanghai 201203, China
    2. Center for Mechatronics Engineering, East China University of Science and Technology, Shanghai 200237, China
  • Received:2011-07-01 Accepted:2011-08-01 Online:2011-11-20 Published:2011-11-15

Objective:By using recurrence quantification analysis (RQA) to analyze traditional Chinese medicine pulse signals of patients with coronary heart disease (CHD), this study aims to find nonlinear dynamic parameters of pulses to distinguish patients with CHD from normal subjects.
Methods: First, pulse signals were collected using ZBOX-Ⅰ pulse digitization gathering analyzer from October 2007 to June 2008. RQA was used to analyze RQA parameters of pulses of 63 patients with CHD and 61 normal subjects. RQA parameters included recurrence rate (RR), determinism (DET), averaged diagonal length (L), entropy of diagonal length (ENTR), length of longest diagonal line (Lmax), laminarity (LAM), trapping time (TT) and length of longest vertical line (Vmax). Then, rank-sum test and BoxPlot were employed to find significant difference and distribution of RQA parameters. Lastly, receiver operating characteristic (ROC) curves were used to assess the diagnostic value of the measurements with significant difference.
Results: There were significant differences in RQA parameters of pulse signals between the two groups, including RR, DET, L, ENTR, LAM, TT and Vmax, and their areas under the ROC curves were 1.000, 0.898, 0.653, 0.673, 0.885, 0.898, 0.986 and 0.994, respectively.
Conclusion: Compared with the normal subjects, the pulse signals of the patients with CHD are presented with more certainty, regularity and stability. RQA measurements ofRR, TT, Vmax, DET and LAM show good diagnostic value according to their ROC curves.

Key words: coronary disease, pulse presentations, recurrence quantification analysis, sphygmogram, clinical trial

Figure 1

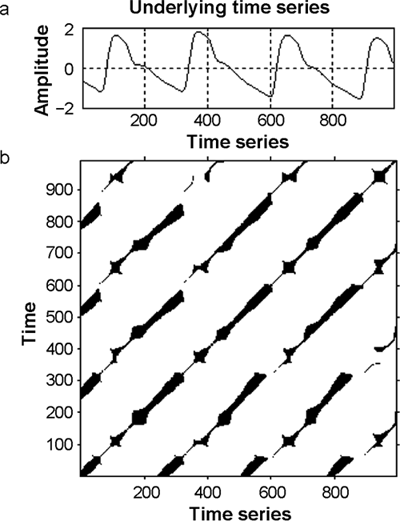

Recurrence plot of pulse signals a: An example of time series of pulse signal; b: Recurrence plot of time series present in a."

Figure 2

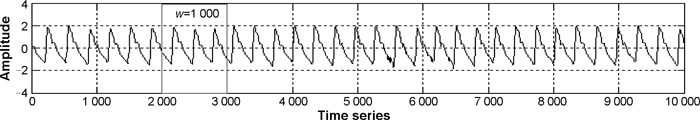

Analysis window (w=1 000)"

Table 1

RQA measures of the two groups (Mean rank)"


Group

RR

DET

L

Lmax

ENTR

LAM

TT

Vmax

Coronary heart disease

93.00*

86.79*

71.83*

62.78

73.06*

86.00*

92.16*

92.63*

Normal

31.00

37.41

52.87

62.21

51.59

38.23

31.87

31.38*

Figure 3

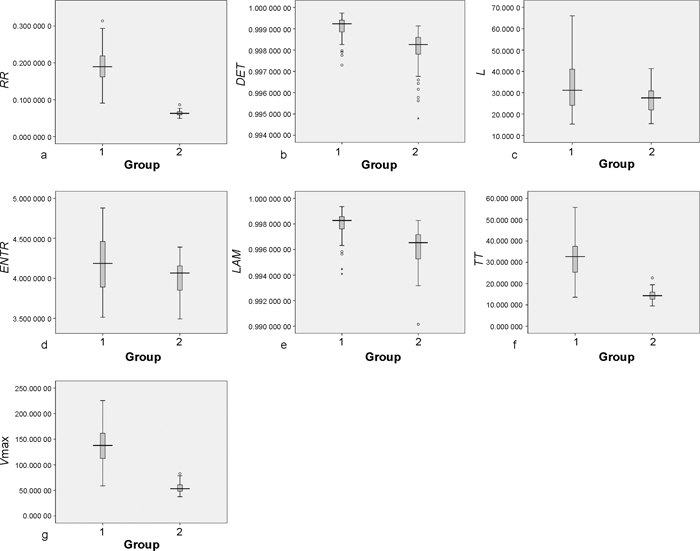

RQA parameters of the two groups 1: Coronary heart disease group; 2: Normal group. Boxplots display data distribution between the two groups. The middle black line of the box is the median, and range of the box is equal to difference between the third and first quartiles (IQR). The lower line is 1.5 IQR away from the first quartiles, and the upper line is 1.5 IQR away from the third quartiles. "o“ represents the outlier and "*” represents extreme points. RR: recurrence rate; DET: determinism; L: averaged diagonal length; ENTR: entropy of diagonal length; LAM: laminarity; TT: trapping time; Vmax: length of the longest vertical line."

Figure 4

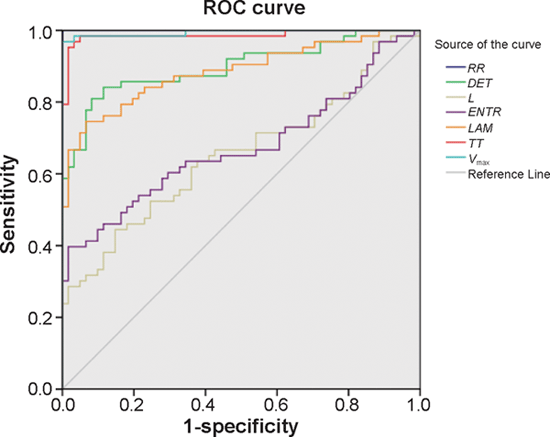

ROC curve of RQA measures ROC: receiver operating characteristic; RQA: recurrence quantification analysis; RR: recurrence rate; DET: determinism; L: averaged diagonal length; ENTR: entropy of diagonal length; LAM: laminarity; TT: trapping time; Vmax: length of the longest vertical line."

Table 2

Area under the ROC curve"


Variable
Area Standard deviation P value 95% Confidence interval
Below Upper

RR

1.000

0.000

0.000

1.000
1.000

DET

0.898

0.029

0.000

0.841

0.955

L

0.653

0.050

0.003

0.556

0.750

ENTR

0.673

0.049

0.001

0.576

0.770

LAM

0.885

0.031

0.000

0.825

0.945

TT

0.986

0.010

0.000

0.966

1.007

Vmax

0.994

0.006

0.000

0.983

1.005
[1] Zhong JK, Song ZH, Hao WQ . Application of recurrence qualification analysis to EMG. Sheng Wu Wu Li Xue Bao. 2002 ; 18(2) : 241-245. Chinese with abstract in English.
doi: 10.3321/j.issn:1000-6737.2002.02.016
钟季康, 宋志怀, 郝为强 . RQA在肌电分析中的应用. 生物物理学报. 2002; 18(2):241-245.
doi: 10.3321/j.issn:1000-6737.2002.02.016
[2] Lu HW, Chen YZ . A fine graining complexity measure algorithm and its application in cardiac RR intervals analysis. Hang Tian Yi Xue Yu Yi Xue Gong Cheng. 2004 ; 17(6) : 444-447. Chinese with abstract in English.
doi: 10.3969/j.issn.1002-0837.2004.06.012
陆宏伟, 陈亚珠 . 细粒化复杂度算法及其在心电RR间隔分析中的应用.航天医学与医学工程. 2004; 17(6):444-447.
doi: 10.3969/j.issn.1002-0837.2004.06.012
[3] Shao CX, Tong ST . Nonlinear dynamic fast analysis and analysis of epileptic’s EEG. Sheng Wu Yi Xue Gong Cheng Yan Jiu. 2008; 27(3): 154-157. Chinese with abstract in English.
doi: 10.3969/j.issn.1672-6278.2008.03.003
邵晨犧, 童松桃 . 脑电非线性动力学快速分析与癫痫脑电分析.生物医学工程研究. 2008; 27(3):154-157.
doi: 10.3969/j.issn.1672-6278.2008.03.003
[4] Eckmann JP, Kamphorst SO, Ruelle D . Recurrence plots of dynamical systems. Europhys Lett. 1987 ; 4(9):973-977.
doi: 10.1209/0295-5075/4/9/004
[5] Zbilut JP, Webber JCL . Embeddings and delays as derived from quantification of recurrence plots. Phys Lett A. 1992; 171(3-4):199-203.
doi: 10.1016/0375-9601(92)90426-M
[6] Trulla LL, Giuliani A, Zbilut JP . Recurrence quantification analysis of the logistic equation with transients. Phys Lett A. 1996; 223:255-260.
doi: 10.1016/S0375-9601(96)00741-4
[7] Yan RQ, Zhu YS . Voiced/unvoiced decision based on recurrence quantification analysis. Dian Zi Yu Xin Xi Xue Bao. 2007; 29(7): 1703-1706. Chinese with abstract in English.
doi: 10.3724/SP.J.1146.2005.01659
闫润强, 朱贻盛 . 基于定量递归分析的清浊音判决.电子与信息学报. 2007; 29(7):1703-1706.
doi: 10.3724/SP.J.1146.2005.01659
[8] Takens F . Detecting strange attractors in turbulence. Lecture Notes in Mathematics. 1981; 898(1):366-381.
[9] Gao JB . Recurrence time statistics for chaotic systems and their application. Phys Rev Lett. 1999 ; 83(16):3178-3181.
doi: 10.1103/PhysRevLett.83.3178
[10] Gao JB, Cai HQ . On the structures and quantification of recurrence plots. Phys Lett A. 2000; 270(1-2) : 75-87.
doi: 10.1016/S0375-9601(00)00304-2
[11] Luo ZC, Zhang S, Yang YM. Engineering analysis for pulse wave and its application in clinical practice. Beijing: Science Press. 2006: 1,110-114. Chinese.
罗志昌, 张松, 杨益民 . 脉搏波的工程技术分析与临床应用.北京: 科学出版社. 2006: 1, 110-114.
[12] Wang L . Nonlinear vibration analyses of human physiological information and applications. Dongbei University. 2006. Chinese with abstract in English.
王黎 . 人体生理信息的非线性振动分析及其应用的研究.东北大学. 2006.
[13] Han QP . Nonlinear analyses of pulse signal and the effects of different emotions and environments. Zhejiang University. 2007. Chinese with abstract in English.
韩清鹏 . 脉搏信号的非线性分析及其不同情绪和环境的影响研究.浙江大学. 2007.
[14] Wang N, Ruan J . Principal component cluster analysis of ECG time series based on Lyapunov exponents. Ke Xue Tong Bao. 2004; 49(20): 2122-2127. Chinese.
doi: 10.3321/j.issn:0023-074X.2004.20.017
王鼐, 阮烟 . 心电信号时间序列基于Lyapunov指数谱的主成分聚类分析.科学通报. 2004; 49(20):2122-2127.
doi: 10.3321/j.issn:0023-074X.2004.20.017
