Immunoregulatory mechanisms of an optimal Chinese herbal monomer compound in mice with allergic rhinitis

Cheng Jian1,Zhang Xin-min1(),Shen Zi-yin1,Chen Wei-hua1,Cai Wai-jiao1,2,Ying Jian1,Hu Guo-rang3,Liu Run-hong1

  1. 1. Institute of Integrative Medicine, Huashan Hospital, Fudan University, Shanghai 200040, China
    2. The Buck Institute, Novato, California 94945, USA
    3. Department of Immunology and Allergy, Concord Hospital, the University of Sydney, Sydney 2006, Australia
  • Received:2011-07-30 Accepted:2011-08-22 Online:2011-12-20 Published:2018-08-17

Objective: To study the immunoregulatory effect of an optimal Chinese herbal monomer compound, which consists of three monomers, namely, icariin, baicalin and Astragalus saponin Ⅰ, in a mouse model of allergic rhinitis.
Methods: A mouse model of allergic rhinitis was established by intraperitoneal injection of ovalbumin and aluminum hydroxide gel suspension. The splenic lymphocytes of the mice were separated, cultured in 96-well plates and divided into three groups: control group, concanavalin A group and compound group. Splenic lymphocyte proliferation was detected by cell counting kit-8 method at different time points. Cell cycle distribution was observed by flow cytometry (FCM) also at different time points. The changes of intracellular calcium concentration of splenic lymphocytes were measured by fluorescence microplate reader after the cells were incubated with fluorescence probe Fluo-3/AM.
Results: The Chinese herbal monomer compound could inhibit cell proliferation induced by concanavalin A (P<0.01). And the inhibition presented a time-effect relationship. With extending of the action time, the inhibition rate gradually increased and reached peak at the 48th hour. FCM test revealed the fact that concanavalin A could promote cells to enter into the mitosis by reducing the percentage of cells in G0/G1 phases while increasing the percentage of cells in S and G2/M phases. Compared with the concanavalin A, the compound could increase the percentage of cells in G0/G1 phases and at the same time reduce the percentage of cells in S and G2/M phases at different time points, with the effect most significant at the 24th hour (P<0.05 or P<0.01). The results of the test taken by the fluorescence microplate reader revealed that the fluorescence value of the concanavalin A group increased with time in the previous 24 h while the compound could reduce this trend obviously, thus reduce the intracellular calcium concentration (P<0.01).
Conclusion: The Chinese herbal monomer compound can inhibit the proliferation of cultured splenic lymphocytes of mice with allergic rhinitis. The effects of the compound of lowering intracellular calcium concentration and arresting cell cycle at G0/G1 phases from entering into S and G2/M phases are responsible for its antiproliferation activity.

Key words: drugs, Chinese herbal, compounds, rhinitis, allergic, lymphocytes, cell cycles, intracellular free calcium, mice

Table 1

Inhibitory effects of the compound on proliferation of cultured spelenic lymphocytes from a mouse model of allergic rhinitis at different time points (x±s)"

Group n Optical density value
12 h 18 h 24 h 48 h 72 h
Control 6 0.244±0.013** 0.333±0.025** 0.359±0.024** 0.361±0.029** 0.297±0.031**
Concanavalin A 6 0.812±0.043 0.917±0.056 1.003±0.084 1.145±0.088 0.623±0.025
Compound 6 0.559±0.020** 0.571±0.016** 0.577±0.018** 0.582±0.043** 0.415±0.007**

Table 2

Effects of the compound on cell cycle distribution of cultured spelenic lymphocytes from a mouse model of allergic rhinitis at different time points (x±s, %)"

Group n 12 h 18 h
G0/G1 S G2/M G0/G1 S G2/M
Control 6 95.055±0.714** 2.115±0.064** 2.820±0.665* 93.095±0.672** 2.985±0.29** 3.920±0.382**
Concanavalin A 6 90.530±0.297 5.215±0.035 4.255±0.262 87.280±0.368 7.290±0.042 5.430±0.325
Compound 6 93.910±0.156** 4.730±0.028** 1.360±0.127** 91.770±0.339** 3.405±0.049** 4.820±0.099
Group n 24 h 48 h
G0/G1 S G2/M G0/G1 S G2/M
Control 6 89.830±0.354** 4.415±0.771** 6.025±0.417* 87.465±0.431** 6.030±0.226** 6.505±0.205
Concanavalin A 6 79.340±0.255 13.160±0.467 7.500±0.212 77.170±0.212 15.170±0.594 7.660±0.382
Compound 6 90.990±0.283** 3.430±0.057** 5.430±0.552* 84.230±0.198** 8.470±0.269** 7.300±0.467

Table 3

Effects of the compound on intracellular calcium concentration of cultured spelenic lymphocytes from a mouse model of allergic rhinitis at different time points (x±s)"

Group n Fluorescence intensity value
12 h 18 h 24 h 48 h
Control 8 26.367±2.397** 45.619±2.428** 64.772±1.543** 48.135±1.540**
Concanavalin A 8 48.271±2.146 81.106±2.833 117.961±3.704 109.406±2.640
Compound 8 37.179±1.775** 64.935±1.945** 77.492±2.723** 64.552±2.957**

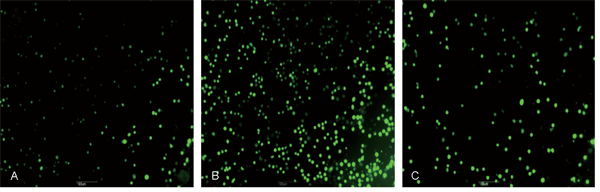

Figure 1

Fluorescence intensity in lymphocytes of different groups at the 24th hour (Fluorescence microscopy, ×200) A: Control group; B: Concanavalin A group; C: Compound group."

[1] Editorial Board of Chinese Journal of Otorhinolaryngology Head and Neck Surgery, Chinese Otorhinolaryngology Society of Chinese Medical Association. Diagnostic and treatment principle and recommended scheme for allergic rhinitis. Zhonghua Er Bi Yan Hou Tou Jing Wai Ke Za Zhi. 2005; 40(3): 166-167. Chinese.
doi: 10.3760/j.issn:1673-0860.2005.03.003
中华耳鼻咽喉头颈外科杂志编辑委员会, 中华医学会耳鼻咽喉科分会. 变应性鼻炎的诊治原则和推荐方案( 2004年,兰州).中华耳鼻咽喉头颈外科杂志. 2005; 40(3) : 166-167.
doi: 10.3760/j.issn:1673-0860.2005.03.003
[2] Hu G, Walls RS, Bass D, Ramon B, Grayson D, Jones M, Gebski V . The Chinese herbal formulation biminne in management of perennial allergic rhinitis : a randomized, double-blind, placebo-controlled, 12-week clinical trial. Ann Allergy Asthma Immunol. 2002; 88(5):478-487.
doi: 10.1016/S1081-1206(10)62386-1
[3] Hu G, Walls RS, Bass D, Bullock R . The utilisation of traditional Chinese medicine BIMIN capsules in management of perennial allergic rhinitis: a randomised, double-blind, placebo-controlled clinical trial. International Clinical Trials Symposium, Sydney, September 15-17, 1999.
[4] Liu RH . The immunomodulatory effect of Chinese herbal formula Biminne and its components on respiratory allergy. Shanghai: Fudan University. 2008. Chinese with abstract in English.
刘闰红 .别敏”及有效成分对呼吸道变态反应免疫调节作用的研究. 上海:复旦大学. 2008.
[5] Liu RH, Zhang XM, Zhang SQ, Gu YF, Cai WJ, Chen WH, Ying J . Study on mechanism of Biminne in treating allergic rhinitis. Zhongguo Zhong Xi Yi Jie He Za Zhi. 2007; 27(7): 623-625. Chinese with abstract in English.
刘闰红, 张新民, 张素琴, 顾一峰, 蔡外娇, 陈伟华, 应健 . 中药复方别敏治疗变应性鼻炎的实验研究.中国中西医结合杂志. 2007; 27(7):623-625.
[6] Zhang SQ, Shen ZY, Hu GR, Liu RH, Zhang XM . Effects of Chinese herbal formula Biminne in regulating endocrine-immune function in mice with airway allergy. J Chin Integr Med. 2009; 7(4): 349-353. English with abstract in Chinese.
doi: 10.3736/jcim20090409
张素琴, 沈自尹, 胡国让, 刘闰红, 张新民 . 中药复方别敏胶囊对呼吸道变应性小鼠内分泌免疫功能的调节作用.中西医结合学报. 2009; 7(4):349-353.
doi: 10.3736/jcim20090409
[7] Zhang SQ, Zhang XM, Hu GR, Liu RH, Chen WH . Experimental study of the Chinese herbal formulation Biminne in treating airway allergic disease. Zhongguo Shi Yan Fang Ji Xue Za Zhi. 2007; 13(4): 37-40. Chinese with abstract in English.
张素琴, 张新民, 胡国让, 刘闰红, 陈伟华 . 中药复方 “别敏”治疗呼吸道变应性疾病作用机制的实验研究. 中国实验方剂学杂志. 2007; 13(4):37-40.
[8] Gong WY, Zhang XM, Shen ZY, Hu GR, Zhang SQ, Liu RH, Zhang WD, Dong JC . Optimal combination of baicalin, icariin and Astragalus saponin I from a Chinese herbal compound Biminne. J Chin Integr Med. 2010 ; 8(6) : 541-547. Chinese with abstract in English.
doi: 10.3736/jcim20100606
弓唯一, 张新民, 沈自尹, 胡国让, 张素琴, 刘闰红, 张卫东, 董竞成 . 复方别敏中黄芩苷、淫羊藿苷和黄芪甲苷配伍比例的优化.中西医结合学报. 2010; 8(6):541-547.
doi: 10.3736/jcim20100606
[9] Ikeda Y, Kaneko A, Yamamoto M, Ishige A, Sasaki H . Possible involvement of suppression of Th2 differentiation in the anti-allergic effect of Sho-seiryu-to in mice[J]. Jpn Pharmacol. 2002; 90(4):328-336.
doi: 10.1254/jjp.90.328
[10] Ferenczi K, Burack L, Pope M, Krueger JG, Austin LM . CD69, HLA-DR and the IL-2R identify persistently activated T cells in psoriasis vulgaris lesional skin: blood and skin comparisons by flow cytometry.[J] Autoimmun. 2000; 14(1):63-78.
doi: 10.1006/jaut.1999.0343
[11] Leckie MJ, Jenkins GR, Khan J, Smith SJ, Walker C, Barnes PJ, Hansel TT . Sputum T lymphocytes in asthma, COPD and healthy subjects have the phenotype of activated intraepithelial T cells (CD69+ CD103+ ). Thorax. 2003; 58(1) : 23-29.
doi: 10.1136/thorax.58.1.23
[12] Moller C, Juto P, Dreborg S, Bjorksten B . Blood lymphocyte proliferation response to pollen extract as a monitor of immunotherapy. Allergy. 1984; 39(4):291-296.
doi: 10.1111/j.1398-9995.1984.tb00865.x pmid: 6731754
[13] Romagnani S . The role of lymphocytes in allergic disease.[J] Allergy Clin Immunol. 2000; 105(3) : 399-408.
doi: 10.1067/mai.2000.104575
[14] Bao XL, Gao L, An Y . Mechanism of Chinese herbal compounds in treatment of allergic rhinitis. Xinjiang Yi Ke Da Xue Xue Bao. 2005; 28(5) : 485-487. Chinese.
doi: 10.3969/j.issn.1009-5551.2005.05.034
包晓玲, 髙丽, 安杨 . 中药复方制剂治疗变应性鼻炎的作用机制.新疆医科大学学报. 2005; 28(5):485-487.
doi: 10.3969/j.issn.1009-5551.2005.05.034
[15] Wang MJ . Combination of effective components, the new pattern of drugs derived from modern Chinese herbal medicine. Zhongguo Zhong Xi Yi Jie He Za Zhi. 2008; 28(1) : 73-76. Chinese with abstract in English.
王明军 . 试论现代中药衍生的“有效部位配伍”新药模式.中国中西医结合杂志. 2008; 28(1):73-76.
[16] Rothnie A, Theron D, Soceneantu L, Martin C, Traikia M, Berridge G, Higgins CF, Devaux PF, Callaghan R . The importance of cholesterol in maintenance of P- glycoprotein activity and its membrane perturbing influence. Eur Biophys J. 2001; 30(6):430-442.
doi: 10.1007/s002490100156
[17] Opekarova M, Tanner W . Specific lipid requirements of membrane proteins — a putative bottleneck in heterologous expression. Biochim Biophys Acta. 2003; 1610(1):11-22.
doi: 10.1016/S0005-2736(02)00708-3
[18] Chechlinska M, Siwicki JK, Gos M, Oczko-Wojciechowska M, Jarzab M, Pfeifer A, Jarzab B, Steffen J . Molecular signature of cell cycle exit induced in human T lymphoblasts by IL-2 withdrawal. BMC Genomics. 2009; 10:261.
doi: 10.1186/1471-2164-10-261 pmid: 2706892
[19] Brubaker JO, Li Q, Tzianabos AO, Kasper DL, Finberg RW . Mitogenic activity of purified capsular polysaccharide A from Bacteroides fragilis : differential stimulatory effect on mouse and rat lymphocytes in vitro.[J] Immunol. 1999; 162(4) : 2235-2242.
[20] Gong MC, Fuglsang A, Alessi D, Kobayashi S, Cohen P, Somlyo AV, Somlyo AP . Arachidonic acid inhibits myosin light chain phosphatase and sensitizes smooth muscle to calcium.[J] Biol Chem. 1992 ; 267(30 ): 21492-21498.
[21] Hue S, Monteil A, Bidaud I, Barbara G, Chemin J, Lory P . Regulation of T-type calcium channels: signalling pathways and functional implications. Biochim Biophys Acta. 2009; 1793(6):947-952.
doi: 10.1016/j.bbamcr.2008.11.003 pmid: 19071165
