Analysis of syndrome discipline of generalized anxiety disorder using data mining techniques

Qi-sheng Tang1(), Wen-jun Sun1, Miao Qu1, Dong-fang Guo2

  1. 1. Department of Encephalopathy, Third Affiliated Hospital, Beijing University of Chinese Medicine, Beijing 100029, China
    2. Department of Neurology, General Hospital of Armed Police Forces, Beijing 100039, China
  • Received:2012-02-10 Accepted:2012-04-26 Online:2012-09-20 Published:2018-09-15
  • Contact: Qi-sheng Tang

Objective: To study the use of data mining techniques in analyzing the syndrome discipline of generalized anxiety disorder (GAD).

Methods: From August 1, 2009 to July 31, 2010, 705 patients with GAD in 10 hospitals of Beijing were investigated over one year. Data mining techniques, such as Bayes net and cluster analysis, were used to analyze the syndrome discipline of GAD.

Results: A total of 61 symptoms of GAD were screened out. By using Bayes net, nine syndromes of GAD were abstracted based on the symptoms. Eight syndromes were abstracted by cluster analysis. After screening for duplicate syndromes and combining the experts’ experience and traditional Chinese medicine theory, six syndromes of GAD were defined. These included depressed liver qi transforming into fire, phlegm-heat harassing the heart, liver depression and spleen deficiency, heart-kidney non-interaction, dual deficiency of the heart and spleen, and kidney deficiency and liver yang hyperactivity. Based on the results, the draft of Syndrome Diagnostic Criteria for Generalized Anxiety Disorder was developed.

Conclusion: Data mining techniques such as Bayes net and cluster analysis have certain future potential for establishing syndrome models and analyzing syndrome discipline, thus they are suitable for the research of syndrome differentiation.

Key words: data mining, questionnaires, Bayes theorem, cluster analysis, anxiety disorder, syndrome discipline

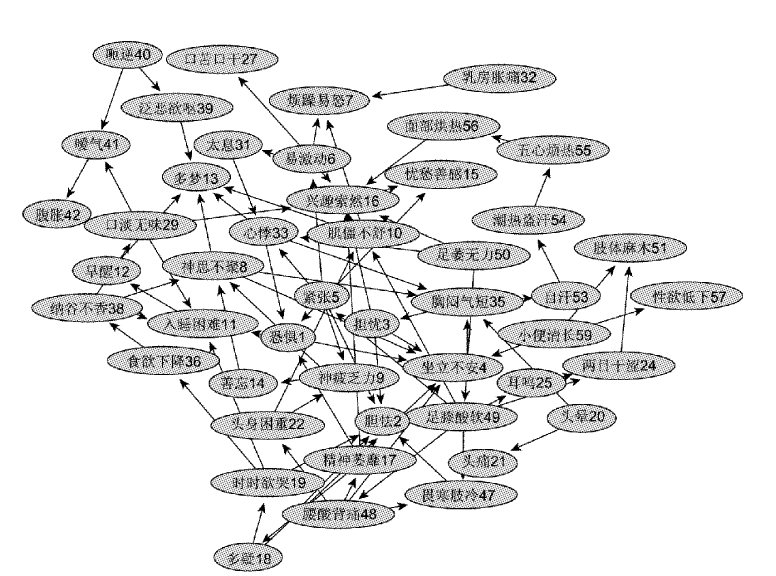

Figure 1

Bayes net model between symptoms of generalized anxiety disorder"

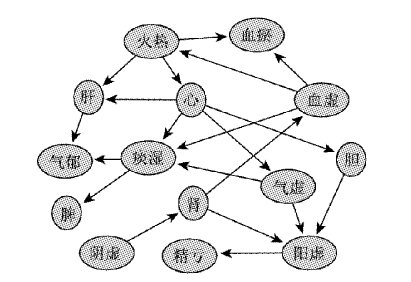

Figure 2

Bayes net model between syndrome elements and syndrome targets of generalized anxiety disorder"

Table 1

Combination of syndrome patterns drawn from Bayes net model"

Syndrome Combination style
Depressed liver qi transforming into fire Heart — liver — fire-heat — stagnation of qi
Qi stagnation and blood stasis Qi stagnation — liver — fire-heat — blood stasis
Phlegm-heat harassing the heart Spleen — phlegm — heart — fire-heat
Deficiency of heart qi and gallbladder qi Heart — qi deficiency — gallbladder — yang deficiency
Liver depression and spleen deficiency Liver — qi stagnation — phlegm — spleen — qi deficiency
Heart-kidney non-interaction Heart — fire-heat — blood deficiency — kidney — yin deficiency
Dual deficiency of the heart and spleen Heart — fire-heat — blood deficiency — phlegm dampness — spleen — qi deficiency
Kidney essence deficiency Kidney — yang deficiency — essence deficiency
Kidney deficiency and liver yang hyperactivity Liver — fire-heat — blood deficiency — kidney — yang deficiency — essence deficiency

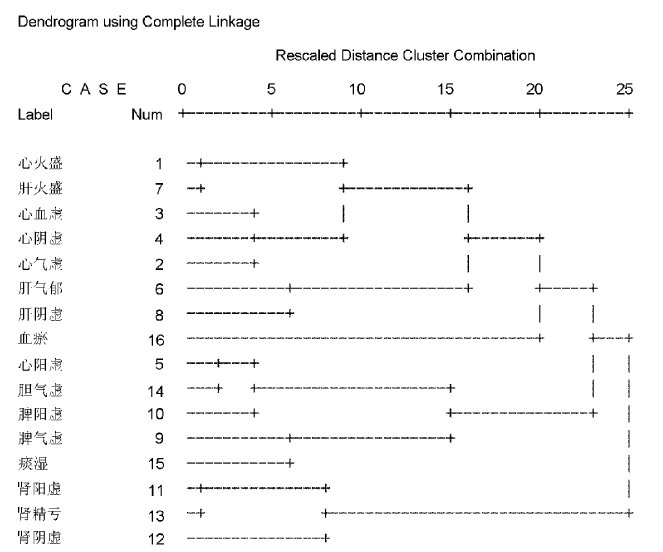

Figure 3

Cluster analysis model between syndrome elements and syndrome targets of generalized anxiety disorder "

Table 2

Procedure of systematic cluster analysis"

Step Cluster combination Correlation
Step cluster first appeared Next step
Cluster 1 Cluster 2 Cluster 1 Cluster 2
1 Heart fire hyperactivity Liver fire hyperactivity 0.959 0 0 10
2 Kidney yang deficiency Kidney essence deficiency 0.951 0 0 9
3 Heart yang deficiency Deficiency of gallbladder qi 0.922 0 0 5
4 Heart blood deficiency Heart yin deficiency 0.898 0 0 6
5 Heart yang deficiency Spleen yang deficiency 0.886 3 0 11
6 Heart qi deficiency Heart blood deficiency 0.882 0 4 10
7 Liver qi depression Liver yin deficiency 0.844 0 0 12
8 Spleen qi deficiency Phlegm 0.843 0 0 11
9 Kidney yang deficiency Kidney yin deficiency 0.801 2 0 15
10 Heart fire hyperactivity Heart qi deficiency 0.797 1 6 12
11 Heart yang deficiency Spleen qi deficiency 0.671 5 8 14
12 Heart fire hyperactivity Liver qi depression 0.655 10 7 13
13 Heart fire hyperactivity Blood stasis 0.563 12 0 14
14 Heart fire hyperactivity Heart yang deficiency 0.503 13 11 15
15 Heart fire hyperactivity Kidney yang deficiency 0.460 14 9 0

Table 3

Combination of syndrome patterns drawn from the cluster analysis model"

Syndrome Combination style
Depressed liver qi transforming into fire Heart fire hyperactivity — liver fire hyperactivity
Kidney essence deficiency Kidney essence deficiency — deficiency of kidney yang
Deficiency of heart qi and gallbladder qi Heart yang deficiency — gallbladder qi deficiency
Heart blood deficiency Heart blood deficiency — heart yin deficiency
Both qi and blood deficiency Heart qi deficiency — heart blood deficiency
Spleen qi deficiency with phlegm Spleen qi deficiency — phlegm
Both yin and yang deficiency Kidney yin deficiency — kidney yang deficiency
Qi depression and blood stasis Liver qi depression — blood stasis
[1] Chinese Society of Psychiatry . CCMD-3 China mental disorders classification and diagnosis standards.3rd ed[M]. Jinan: Shandong Science and Technology Press, 2001, 1-3
中华医学会精神科分会. CCMD-3中国精神障碍分类与诊断标准.第3版[M]. 济南: 山东科学技术出版社, 2001, 1-3
[2] Hamilton M . The assessment of anxiety states by rating[J]. Br J Med Psychol, 1959,32(1):50-55
doi: 10.1111/papt.1959.32.issue-1
[3] State Technical Supervision Bureau. National standards of People’s Republic of China for clinic terminology of TCM diagnosis and treatment — Diseases[M]. Beijing: China Standards Press, 1997, 1-10
国家技术监督局. 中华人民共和国国家标准中医临床诊疗术语——疾病部分[M]. 北京: 中国标准出版社, 1997, 1-10
[4] China National Committee for Terms in Sciences and Technologies. Chinese terms in traditional Chinese medicine and pharmacy[M]. Beijing: Science Press, 2004, 1-12
全国科学技术名词审定委员会. 中医药学名词[M]. 北京: 科学出版社, 2004, 1-12
[5] Zung WW . A rating instrument for anxiety disorders[J]. Psychosomatics, 1971,12(6):371-379
doi: 10.1016/S0033-3182(71)71479-0
[6] Zung WW . A self-rating depression scale[J]. Arch Gen Psychiatry, 1965, 1263-70
[7] Qian XS . Several issues about human body scientific research[J]. Zhongguo Qi Gong Ke Xue, 1994,( 6):4-6
钱学森 . 关于人体科学研究的几个问题[J]. 中国气功科学, 1994,( 6):4-6
[8] Gong YB, Ni Q, Wang YY . Modern methodology of TCM syndrome study(Ⅰ) — data mining technology of TCM syndrome[J]. Beijing Zhong Yi Yao Da Xue Xue Bao, 2006,29(12):797-801
龚燕冰, 倪青, 王永炎 . 中医证候研究的现代方法学述评(一) ——中医证候数据挖掘技术[J]. 北京中医药大学学报, 2006,29(12):797-801
[9] Gong YB, Ni Q, Wang YY . Modern methodology on study of TCM syndrome manifestation(Ⅱ) — quantification and mathematical statistics of TCM syndrome manifestation[J]. Beijing Zhong Yi Yao Da Xue Xue Bao, 2007,30(1):5-8
龚燕冰, 倪青, 王永炎 . 中医证候研究的现代方法学述评(二) —— 中医证候的量化及数理统计方法[J]. 北京中医药大学学报, 2007,30(1):5-8
[10] Wang YY . Emphasizing the inheritance and development of TCM in conceptual age[J]. Zhonghua Zhong Yi Yao Xue Kan, 2008,26(4):677-679
王永炎 . 概念时代应重视中医学原创思维的传承与发展[J]. 中华中医药学刊, 2008,26(4):677-679
[11] Wang XW, Qu HB, Liu XS, Cheng YY . Bayesian network approach to knowledge discovery in TCM[J]. Zhejiang Da Xue Xue Bao Gong Xue Ban, 2005,39(7):948-952
王学伟, 瞿海斌, 刘雪松, 程翼宇 . 贝叶斯网络杂交学习算法及其在中医中的应用[J]. 浙江大学学报(工学版), 2005,39(7):948-952
[12] Liu ZQ . The Research and realization of TCM clinical syndrome diagnosis based on Bayes classification[J]. Ke Ji Zi Xun, 2007,( 22):148
刘湛清 . 基于贝叶斯分类算法在中医临床证型诊断中的研究与实现[J]. 科技资讯, 2007,( 22):148
[13] Sun YN, Ning SY, Lu MY, Lu YC . TCM clinical diangosis for coronary heart disease based on Bayes classification[J]. Ji Suan Ji Ying Yong Yan Jiu, 2006,( 11):164-166
孙亚男, 宁士勇, 鲁明羽, 陆玉昌 . 贝叶斯分类算法在冠心病中医临床证型诊断中的应用[J]. 计算机应用研究, 2006,( 11):164-166
[14] Qu M, Tang QS, Bao ZX, Wang Y, Ma L . Application of Bayesian network in TCM syndrome research[J]. Zhonghua Zhong Yi Yao Xue Kan, 2008,26(7):1497-1498
曲淼, 唐启盛, 包祖晓, 王耘, 马良 . 贝叶斯网络模型在中医证候研究中的应用[J]. 中华中医药学刊, 2008,26(7):1497-1498
[15] Tang QS, Qu M, Bao ZX, Wang Y, Ma L . Bayesian network research on TCM syndrome of depression[J]. Zhong Yi Za Zhi, 2008,49(11):1013-1015
唐启盛, 曲淼, 包祖晓, 王耘, 马良 . 抑郁症中医证候的贝叶斯网络研究[J]. 中医杂志, 2008,49(11):1013-1015
[16] Qu M, Tang QS, Pei QH, Li X . Clustering research on TCM syndrome of depression[J]. Jilin Zhong Yi Yao, 2007,27(11):10-12
曲淼, 唐启盛, 裴清华, 李侠 . 抑郁症中医证候的聚类研究[J]. 吉林中医药, 2007,27(11):10-12
[17] Tang QS, Qu M, Bao ZX, Wang Y, Sun WJ . Laws of TCM syndrome and establishment of diagnostic standard of depression[J]. Beijing Zhong Yi Yao Da Xue Xue Bao, 2011,34(2):77-81
唐启盛, 曲淼, 包祖晓, 王耘, 孙文军 . 抑郁症中医证候规律及诊疗标准制定的研究[J]. 北京中医药大学学报, 2011,34(2):77-81
[18] Tang QS . TCM syndrome diagnostic standard and treatment of depression[J]. Beijing Zhong Yi Yao Da Xue Xue Bao, 2011,34(12):810-811
唐启盛 . 抑郁症中医证候诊断标准及治疗方案[J]. 北京中医药大学学报, 2011,34(12):810-811
