Journal of Integrative Medicine ›› 2014, Vol. 12 ›› Issue (6): 476-482.doi: 10.1016/S2095-4964(14)60058-3

• Research Article • Previous Articles     Next Articles

Constructing protein-protein interaction network of hypertension with blood stasis syndrome via digital gene expression sequencing and database mining

Yong-hong Lian, Mei-xia Fang, Li-guo Chen

  1. Institute of Integrated Chinese and Western Medicine, Medical School of Ji’nan University, Guangzhou 510632, Guangdong Province, China
  • Received:2014-03-03 Accepted:2014-07-17 Online:2014-11-10 Published:2014-11-15


To construct a protein-protein interaction (PPI) network in hypertension patients with blood-stasis syndrome (BSS) by using digital gene expression (DGE) sequencing and database mining techniques.


DGE analysis based on the Solexa Genome Analyzer platform was performed on vascular endothelial cells incubated with serum of hypertension patients with BSS. The differentially expressed genes were filtered by comparing the expression levels between the different experimental groups. Then functional categories and enriched pathways of the unique genes for BSS were analyzed using Database for Annotation, Visualization and Integrated Discovery (DAVID) to select those in the enrichment pathways. Interologous Interaction Database (I2D) was used to construct PPI networks with the selected genes for hypertension patients with BSS. The potential candidate genes related to BSS were identified by comparing the number of relationships among genes. Confirmed by quantitative reverse transcription-polymerase chain reaction (qRT-PCR), gene ontology (GO) analysis was used to infer the functional annotations of the potential candidate genes for BSS.


With gene enrichment analysis using DAVID, a list of 58 genes was chosen from the unique genes. The selected 58 genes were analyzed using I2D, and a PPI network was constructed. Based on the network analysis results, candidate genes for BSS were identified: DDIT3, JUN, HSPA8, NFIL3, HSPA5, HIST2H2BE, H3F3B, CEBPB, SAT1 and GADD45A. Verified through qRT-PCR and analyzed by GO, the functional annotations of the potential candidate genes were explored.


Compared with previous methodologies reported in the literature, the present DGE analysis and data mining method have shown a great improvement in analyzing BSS.

Key words: Blood-stasis syndrome, Hypertension, Digital gene expression, Protein interaction mapping

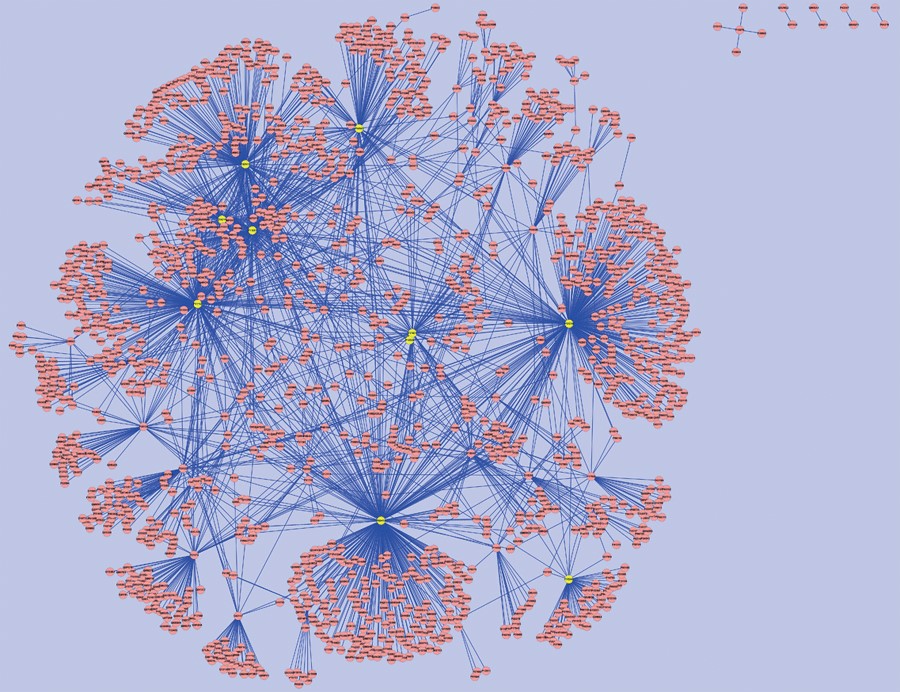

Figure 1

The protein-protein interaction network of the selected 58 genes in the HTBS groups The hubs (the yellow nodes) of the PPI network were: DDIT3, JUN, HSPA8, NFIL3, HSPA5, HIST2H2BE, H3F3B, CEBPB, SAT1 and GADD45A. HTBS: hypertension patients with blood-stasis syndrome."

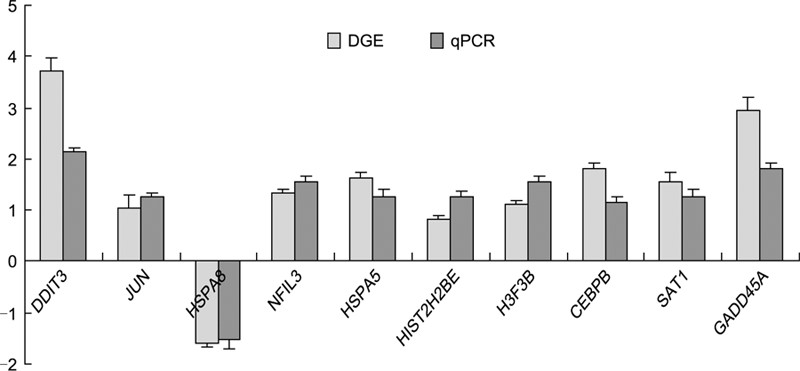

Figure 2

Results of reverse transcription-polymerase chain reaction are consistent with the previous DGE sequencing results The data are presented as mean ± standard deviation and compared by Student’s t-test (P<0.05)."

[1] Lü AP, Jia HW, Xiao C, Lu QP . Theory of traditional Chinese medicine and therapeutic method of diseases[J]. World J Gastroenterol, 2004,10(13):1854-1856
doi: 10.3748/wjg.v10.i13.1854
[2] Ning SY, Jiang BP, Xu L, Fang TH, Wu MH . Effect of Liangxuehuayu Recipe on hemorheology in rats with blood stasis syndrome[J]. Asian Pac J Trop Med, 2012,5(12):935-938
doi: 10.1016/S1995-7645(12)60177-1
[3] Nicolae M , Mndoiu I. Accurate estimation of gene expression levels from DGE sequencing data. In: Chen J, Wang J, Zelikovsky A. Bioinformatics research and applications; 7th International Symposium, ISBRA 2011, Changsha, China, May 27-29, 2011.
[4] Wang J, Xiong XJ . Evidence-based Chinese medicine for hypertension[J]. Evid Based Complement Alternat Med, 2013,2013:e978398
[5] Xiong X, Yang X, Liu Y, Zhang Y, Wang P, Wang J . Chinese herbal formulas for treating hypertension in traditional Chinese medicine: perspective of modern science[J]. Hypertens Res, 2013,36(7):570-579
doi: 10.1038/hr.2013.18
[6] Wang W . Main points on Chinese hypertension guideline[J]. Yi Xue Yu Zhe Xue Lin Chuang Jue Ce Lun Tan Ban, 2006,27(4):9-13
[7] Chen KJ . Blood stasis syndrome and its treatment with activating blood circulation to remove blood stasis therapy[J]. Chin J Integr Med, 2012,18(12):891-896
doi: 10.1007/s11655-012-1291-5
[8] Chen LG, Hu XQ . On establishment of vascular endothelial cell injury model of blood stasis syndrome based on integration of disease identification and syndrome differentiation[J]. Zhongguo Zhong Xi Yi Jie He Za Zhi, 2007,27(3):267-269
[9] Ewing B, Hillier L, Wendl MC, Green P . Base-calling of automated sequencer traces using phred. I. Accuracy assessment[J]. Genome Res, 1998,8(3):175-185
doi: 10.1101/gr.8.3.175
[10] Trapnell C, Pachter L, Salzberg SL . TopHat: discovering splice junctions with RNA-Seq[J]. Bioinformatics, 2009,25(9):1105-1111
doi: 10.1093/bioinformatics/btp120
[11] Dennis G Jr, Sherman BT, Hosack DA, Yang J, Gao W, Lane HC, Lempicki RA . DAVID: database for annotation, visualization, and integrated discovery[J]. Genome Bio, 2003,4(5):P3
doi: 10.1186/gb-2003-4-5-p3
[12] Mills GB, Jurisica I, Yarden Y, Norman JC . Genomic amplicons target vesicle recycling in breast cancer[J]. J Clin Invest, 2009,119(8):2123-2127
[13] Wang J, Yu G . A systems biology approach to characterize biomarkers for blood stasis syndrome of unstable angina patients by integrating microRNA and messenger RNA expression profiling[J]. Evid Based Complement Alternat Med, 2013,2013:510208
[14] Chen SH, Chin CH, Wu HH, Ho CW, Ko MT, Lin CY . Cyto-Hubba: a cytoscape plug-in for hub object analysis in network biology. The 20th International Conference on Genome Informatics, Yokohama, Japan, 2009.
[15] Luo Q, Lian YH, Su JQ, Cheng HH, Hao YK, Zhou FS . Effect of Modified Sijunzi Decoction on 5-HT receptors in intestinal mucosa of IBS-D patients with spleen-deficiency syndrome[J]. Zhongguo Zhong Yi Yao Xin Xi Za Zhi, 2013,20(1):19-21
[16] Benabderrahmane S, Smail-Tabbone M, Poch O, Napoli A, Devignes MD . IntelliGO: a new vector-based semantic similarity measure including annotation origin[J]. BMC Bioinformatics, 2010,11:588
doi: 10.1186/1471-2105-11-588
[17] Li S, Rao XR, Wang SX, Zhang GH, Li XM, Dai XW, Chen KJ . Study on the relationship between blood stasis syndrome and clinical pathology in 227 patients with primary glomerular disease[J]. Chin J Integr Med, 2009,15(3):170-176
doi: 10.1007/s11655-009-0170-4
[18] Zhou YH, Chen LG, Qu Y . Studies on the vascular endothelial cell injury model of blood stasis syndrome from the angle of combination of disease identification and syndrome differentiation[J]. Zhongguo Zhong Xi Yi Jie He Za Zhi, 2011,31(5):696-700
[19] Bahassi el M, Stambrook PJ . Next-generation sequencing technologies: breaking the sound barrier of human genetics[J]. Mutagenesis, 2014,29(5):303-310
doi: 10.1093/mutage/geu031
[20] Lian YH, Li WJ, Chen LG . Potential candidate genes for hypertension with blood stasis syndrome by microarray and databases mining[J]. Int J Biosci Biochem Bioinform, 2014,4(3):150-154
[21] He M, Guo H, Yang X, Zhou L, Zhang X, Cheng L, Zeng H, Hu FB, Tanguay RM, Wu T . Genetic variations in HSPA8 gene associated with coronary heart disease risk in a Chinese population[J]. PLoS One, 2010,5(3):e9684
doi: 10.1371/journal.pone.0009684
[22] Monnier V, Iché-Torres M, Rera M, Contremoulins V, Guichard C, Lalevée N, Tricoire H , Perrin L.dJun and Vri/dNFIL3 are major regulators of cardiac aging in Drosophila[J]. PLoS Genet, 2012,8(11):e1003081
doi: 10.1371/journal.pgen.1003081
[23] Sato Y, Nishio Y, Sekine O, Kodama K, Nagai Y, Nakamura T, Maegawa H, Kashiwagi A . Increased expression of CCAAT/enhancer binding protein-bβ and -δ and monocyte chemoattractant protein-1 genes in aortas from hyperinsulinaemic rats[J]. Diabetologia, 2007,50(2):481-489
doi: 10.1007/s00125-006-0480-4
[24] Xiong Y, Liebermann D , Hholtzman, EJ, Hoffman B, Eifman-Holtzman O.IL-6 induced Gadd45a-p38 stress response pathway regulates sFlt-1 secretion in HUVEC cells. Society for Maternal-Fetal Medicine: 2009 29th Annual Meeting — The Pregnancy Meeting[J]. Amer J Obstet Gynecol, 2008,199(6 Suppl):S228
[25] Vo TK, de Saint-Hubert M, Morrhaye G, Godard P, Geenen V, Martens HJ, Debacq-Chainiaux F, Swine C, Toussaint O . Transcriptomic biomarkers of the response of hospitalized geriatric patients admitted with heart failure. Comparison to hospitalized geriatric patients with infectious diseases or hip fracture[J]. Mech Ageing Dev, 2011,132(3):131-139
doi: 10.1016/j.mad.2011.02.002
