Journal of Chinese Integrative Medicine ›› 2009, Vol. 7 ›› Issue (5): 447-452.doi: 10.3736/jcim20090509

• Original Experimental Research • Previous Articles     Next Articles

Effects of interstitial chemotherapy using thermosensitive gel-coated ricin on hepatoma H22-bearing mice

Zhi-kui Chena,Li-wu Lina,Fa-duan Yangb,Xiu-hua Wengc,CAI Hua-jingd,XUE En-shenga,WANG Yana

  1. a Department of Ultrasonics, Union Hospital, Fujian Medical University, Fuzhou 350001, Fujian Province, China
    b Department of Pathology, Union Hospital, Fujian Medical University, Fuzhou 350001, Fujian Province, China
    c Department of Pharmacy, the First Affiliated Hospital, Fujian Medical University, Fuzhou 350001, Fujian Province, China
    d Department of Pharmacology, School of Pharmacy, Fujian Medical University, Fuzhou 350001, Fujian Province, China
  • Received:2008-11-10 Accepted:2009-02-04 Online:2009-05-20 Published:2018-10-15


To explore the efficacy and feasibility of interstitial chemotherapy using thermosensitive gel-coated ricin in hepatoma H22-bearing mice.

Ricin was purified by chromatography method. The purified ricin was identified by Western blot assay and the purity was determined by high-performance liquid chromatography. BALB/c mice were inoculated subcutaneously in right flank with hepatoma H22 cells. When the tumor size reached about 1.0 cm in diameter, 40 mice were randomly divided into untreated group, thermosensitive gel group, ricin group and thermosensitive gel-coated ricin group. Mice in each group were administered different agents by percutaneous intratumoral injection, including normal saline, thermosensitive hydrogel, ricin and thermosensitive gel-coated ricin. Fifteen days after treatment, the tumors were removed to calculate inhibition rate of tumor growth. The tumor tissues were made into pathological sections to perform histopathological examination. The ultrastructure of tumor tissue was examined by electron microscope examination as well. Blood was collected to detect the hepatic and renal functions. The caspase-3 activity of tumor tissue was determined by using zymologic method with a spectrophotometer.

After intratumoral therapy, tumor weight in the thermosensitive gel-coated ricin group was lower than that in the untreated group, with a tumor growth inhibition rate of 71.31%. No obvious hepatic or renal toxicities were detected after thermosensitive gel-coated ricin treatment. Histopathologic observation of the tumor tissue showed massive necrosis and typical apoptosis phenomena, including chromatin margination and apoptotic body. Meanwhile, thermosensitive gel-coated ricin resulted in a significant increase in the caspase-3 activity as compared with the untreated group and the ricin group (P<0.01, P<0.05).

The above findings indicate that intratumoral therapy with thermosensitive gel-coated ricin has strong antitumor effect and can obviously lessen systemic toxicity, which may provide an effective and feasible method for hepatocellular carcinoma treatment.

Key words: Ricin, Liver neoplasms, Drug therapy, Administration, Topical, Delayed-action preparations, Mice

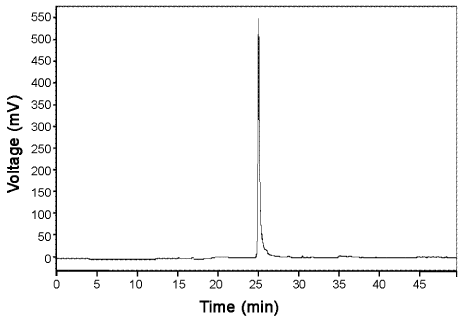

Figure 1

Determination of ricin purity by high performance liquid chromatography"

Figure 2

Identification of ricin by Western blot assay"

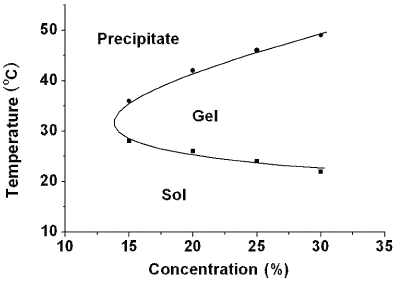

Figure 3

Phase diagram of PLGA-PEG-PLGA copolymer aqueous solutions With increasing of the copolymer concentration from 15% to 30% (weight fraction), the gelation temperature decreases from 28.5 ℃ to 22.5 ℃."

Table 1

Effects of interstitial chemotherapy on tumor growth in different groups"

Group n Tumor weight (x±s, g) Inhibition rate (%)
Untreated 10 2.13±0.41
Thermosensitive gel 10 2.04±0.43 4.25
Ricin 10 1.42±0.28* 33.33
Thermosensitive gel-coated ricin 10 0.61±0.19** 71.31

Table 2

Effects of interstitial chemotherapy on hepatic and renal functions in different groups(x±s)"

Group n ALT (U/L) AST (U/L) Bun (mmol/L) Cr (μmol/L)
Untreated 10 35.12±6.85 112.36±21.01 11.62±1.69 67.25±9.26
Thermosensitive gel 10 39.45±7.23 106.85±23.52 13.02±1.95 70.52±10.52
Ricin 10 52.59±8.16* 168.54±29.74* 12.89±1.94 71.54±10.96
Thermosensitive gel-coated ricin 10 39.25±6.98 128.68±29.74 10.22±1.39 69.75±9.56

Figure 4

Histopathologic changes of tumor tissues observed by light microscope (HE staining, ×200) A: Untreated group; B: Thermosensitive gel group; C: Ricin group; D: Thermosensitive gel-coated ricin group."

Figure 5

Ultrastructure changes of tumor tissues (Transmission electron microscopy, ×5 000) A: Untreated group; B: Thermosensitive gel group; C: Ricin group; D: Thermosensitive gel-coated ricin group."

[1] Cha C, DeMatteo RP, Blumgart LH .Surgery and ablative therapy for hepatocellular carcinoma[J]. J Clin Gastroenterol, 2002,35(5 Suppl 2):S130-S137
doi: 10.1097/00004836-200211002-00009
[2] Ruel-Gariépy E, Shive M, Bichara A, Berrada M, Le Garrec D, Chenite A, Leroux JC . A thermosensitive chitosan-based hydrogel for the local delivery of paclitaxel[J]. Eur J Pharm Biopharm, 2004,57(1):53-63
doi: 10.1016/S0939-6411(03)00095-X
[3] Mok TS, Leung TW, Brown G, Moyses C, Chan AT, Yeo W, Wong H, Chak K, Johnson P . Pharma-cokinetic study of intralesional cisplatin for the treatment of hepatocellular carcinoma[J]. Cancer, 2001,91(12):2369-2377
doi: 10.1002/(ISSN)1097-0142
[4] Sandvig K, Grimmer S, Iversen TG, Rodal K, Torgersen ML, Nicoziani P, van Deurs B .Ricin transport into cells: studies of endocytosis and intracellular transport[J]. Int J Med Microbiol, 2000,290(4-5):415-420
doi: 10.1016/S1438-4221(00)80055-7
[5] Sandvig K, van Deurs B . Entry of ricin and Shiga toxin into cells: molecular mechanisms and medical perspectives[J]. EMBO J, 2000,19(22):5943-5950
doi: 10.1093/emboj/19.22.5943
[6] Nicolson GL, Blaustein J . The interaction of Ricinus communis agglutinin with normal and tumor cell surfaces[J]. Biochim Biophys Acta, 1972,255(2):543-547
[7] Zentner GM, Rathi R, Shih C, McRea JC, Seo MH, Oh H, Rhee BG, Mestecky J, Moldoveanu Z, Morgan M, Weitman S .Biodegradable block copolymers for delivery of proteins and water-insoluble drugs[J]. J Control Release, 2001,72(1-3):203-215
doi: 10.1016/S0168-3659(01)00276-0
[8] Jeong B, Bae YH, Kim SW . Drug release from biodegradable injectable thermosensitive hydrogel of PEG-PLGA-PEG triblock copolymers[J]. J Control Release, 2000,63(1-2):155-163
doi: 10.1016/S0168-3659(99)00194-7
[9] Ghahremankhani AA, Dorkoosh F, Dinarvand R . PLGA-PEG-PLGA Tri-Block Copolymers as in situ gel-forming peptide delivery system: effect of formulation properties on peptide release[J]. Pharm Dev Technol, 2008,13(1):49-55
doi: 10.1080/10837450701702842
[10] Duvvuri S, Janoria KG, Pal D, Mitra AK . Controlled delivery of ganciclovir to the retina with drug-loaded Poly(d, L-lactide-co-glycolide)(PLGA) microspheres dispersed in PLGA-PEG-PLGA Gel: a novel intravitreal delivery system for the treatment of cytomegalovirus retinitis[J]. J Ocul Pharmacol Ther, 2007,23(3):264-274
doi: 10.1089/jop.2006.132
[11] Licastro F, Morini MC, Bolognesi A, Stirpe F . Ricin induced the production of tumor necrosis factor-alpha and interleukin-1 beta by human peripheral-blood mononuclear cells[J]. Biochem J, 1993,294(Pt 2):517-520
doi: 10.1042/bj2940517
[12] Pétillot P, Lahorte C, Bonanno E, Signore A, Lancel S, Marchetti P, Vallet B, Slegers G, Neviere R . Annexin V detection of lipopolysaccharide-induced cardiac apoptosis[J]. Shock, 2007,27(1):69-74
doi: 10.1097/01.shk.0000235085.56100.38
[13] Hanshaw RG, Smith BD . New reagents for phospha-tidylserine recognition and detection of apoptosis[J]. Bioorg Med Chem, 2005,13(17):5035-5042
doi: 10.1016/j.bmc.2005.04.071
[14] Gu W, Han KQ, Su YH, Huang XQ, Ling CQ . Inhibition action of bufalin on human transplanted hepatocellular tumor and its effects on expressions of Bcl-2 and Bax proteins in nude mice[J]. J Chin Integr Med, 2007,5(2):155-159
顾伟, 韩克起, 苏永华, 黄雪强, 凌昌全 . 蟾毒灵对裸鼠人肝癌移植瘤的抑制作用及对Bcl-2和Bax蛋白表达的影响[J]. 中西医结合学报, 2007,5(2):155-159
[15] Wang JY, Xu ZY . Effects of NK-104 on apoptosis and caspase-3 activity in hepatocellular carcinoma cells[J]. J Chin Integr Med, 2007,5(3):298-301
王菊勇, 徐振晔 . NK-104对人肝癌细胞凋亡及半胱氨酸蛋白酶3活性的影响[J]. 中西医结合学报, 2007,5(3):298-301
[16] Wang J, Lenardo MJ . Roles of caspases in apoptosis, development, and cytokine maturation revealed by homozygous gene deficiencies[J]. J Cell Sci, 2000,113(Pt 5):753-757
[17] Shi Y . Caspase activation, inhibition, and reactivation: a mechanistic view[J]. Protein Sci, 2004,13(8):1979-1987
doi: 10.1110/(ISSN)1469-896X
