Journal of Chinese Integrative Medicine ›› 2010, Vol. 8 ›› Issue (4): 368-372.doi: 10.3736/jcim20100412

• Original Experimental Research • Previous Articles     Next Articles

Effects of Radix Ginseng and Radix Notoginseng formula on secretion of vascular endothelial growth factor and expression of vascular endothelial growth factor receptor-2 in human umbilical vein endothelial cells

Yan Leia, Wei Tiana, Lin-qun Zhub, Jing Yanga, Ke-ji Chena

  1. a Department of Cardiovascular Diseases, Xiyuan Hospital, China Academy of Chinese Medical Sciences, Beijing 100091, China
    b The Key Laboratory of Chinese Internal Medicine of Ministry of Education, Dongzhimen Hospital, Beijing University of Chinese Medicine, Beijing 100700, China
  • Received:2010-01-08 Accepted:2010-03-01 Online:2010-04-20 Published:2010-04-15
  • Contact: Yan Lei


To investigate the effects of Radix Ginseng and Radix Notoginseng formula on secretion of vascular endothelial growth factor (VEGF) and expression of vascular endothelial growth factor receptor-2 (VEGFR-2) in human umbilical vein endothelial cells (HUVECs) in vitro.

HUVECs were cultured in vitro. Bovine basic fibroblast growth factor (bFGF) at concentration of 320 U/mL and Radix Ginseng and Radix Notoginseng formula at concentrations of 0.1, 0.2 and 0.4 mg/mL were used to culture with HUVECs. And HUVECs in blank control group were cultured with culture solution only. After 24-hour culture, the content of VEGF in supernatant was detected by enzyme-linked immunosorbent assay and the expression of VEGFR-2 was detected by immunocytochemical staining and Western-blotting.

Radix Ginseng and Radix Notoginseng formula at 0.4 mg/mL, the same as bFGF, increased VEGF content in the HUVEC supernatant and the number of VEGFR-2-positive HUVECs. Expression of VEGFR-2 protein in high-dose Radix Ginseng and Radix Notoginseng formula group was up-regulated as compared with the blank control group.

Radix Ginseng and Radix Notoginseng formula can promote HUVEC proliferation and secretion of VEGF, as well as the expression of VEGFR-2 protein, which may be one of the mechanisms of Radix Ginseng and Radix Notoginseng formula in promoting angiogenesis.

Key words: Drugs, Chinese herbal, Vascular endothelial growth factor, Vascular endothelial growth factor receptor-2, Endothelial cell

Table 1

Content of VEGF, number of VEGFR-2-positive HUVECs and expression of VEGFR-2 protein in different groups ($\bar{x}$±s)"

Group VEGF (ng/L,n=8) Number of
HUVECs (n=6)
OD value of
HUVECs (n=6)
Blank control 67.61±8.54 13.18±5.79 0.149±0.002 1.583 9±0.102 8
bFGF 93.68±11.35* 18.08±6.06** 0.183±0.002* 2.113 9±0.211 5*
High-dose formula 89.24±12.16* 18.29±4.98** 0.171±0.003* 2.074 5±0.189 8*
Medium-dose formula 74.57±8.90 13.81±4.31△△□□ 0.168±0.003* 1.482 2±0.173 0
Low-dose formula 72.81±9.26 12.79±4.10△△□□ 0.147±0.003△▲□ 1.388 8±0.262 0

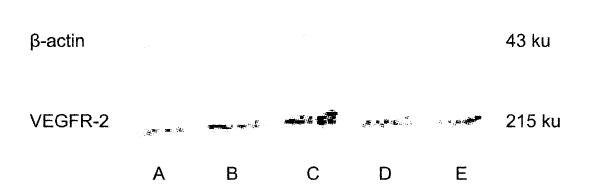

Figure 1

Expression of VEGFR-2 protein in HUVECs observed by Western blotting A: Blank control group; B: bFGF group; C: High-dose formula group; D: Medium-dose formula group; E: Low-dose formula group."

Figure 2

Expression of VEGFR-2 protein in HUVECs observed by immunocytochemical method (Light microscopy, ×200) A: Blank control group; B: bFGF group; C: High-dose formula group; D: Medium-dose formula group; E: Low-dose formula group."

[1] Lazarous DF, Shou M, Stiber JA, Hodge E, Thirumurti V , Gonçalves L, Unger EF . Adenoviral-mediated gene transfer induces sustained pericardial VEGF expression in dogs: effect on myocardial angiogenesis[J]. Cardiovasc Res, 1999,44(2):294-302
doi: 10.1016/S0008-6363(99)00203-5
[2] Lei Y, Gao Q, Chen KJ . Effects of extracts from Panax Notoginseng and Panax Ginseng fruit on vascular endothelial cell proliferation and migration in vitro[J]. Chin J Integr Med, 2008,14(1):37-41
doi: 10.1007/s11655-008-0037-0
[3] Tian W, Lei Y . Research progress of traditional Chinese medicine in therapeutic angiogenesis[J]. Zhongguo Zhong Yi Ji Chu Yi Xue Za Zhi, 2008,14(4):319-321
田伟, 雷燕 . 中医药在治疗性血管生成中的研究进展[J]. 中国中医基础医学杂志, 2008,14(4):319-321
[4] Lei Y, Wang PL, Lin YL, Chen KJ . Danggui Buxue Decoction promotes angiogenesis in ischemic myocardium of aging rats with myocardial infarction[J]. Zhongguo Zhong Yi Ji Chu Yi Xue Za Zhi, 2005,11(12):892-894
雷燕, 王培利, 林燕林, 陈可冀 . 当归补血汤煎剂对实验性心肌梗死衰老大鼠缺血心肌的促血管生成作用[J]. 中国中医基础医学杂志, 2005,11(12):892-894
[5] Liu Y, Liu LX . Recognition of the effects of ginseng[J]. Shi Zhen Guo Yi Guo Yao, 2006,17(2):289
刘郁, 刘连新 . 人参功效再认识[J]. 时珍国医国药, 2006,17(2):289
[6] Zhang XP, Qi LL, Liu DR . Research status of the pharmacological effects of Radix Notoginseng and its effective components[J]. Yi Xue Yan Jiu Za Zhi, 2007,36(4):96-98
张喜平, 齐丽丽, 刘达人 . 三七及其有效成分的药理作用研究现状[J]. 医学研究杂志, 2007,36(4):96-98
[7] Ferrara N, Gerber HP , LeCouter J . The biology of VEGF and its receptors[J]. Nat Med, 2003,9(6):669-676
doi: 10.1038/nm0603-669
[8] La DS, Belzile J, Bready JV, Coxon A , DeMelfi T, Doerr N, Estrada J, Flynn JC, Flynn SR, Graceffa RF . Novel 2,3-dihydro-1,4-benzoxazines as potent and orally bioavailable inhibitors of tumor-driven angiogenesis[J]. J Med Chem, 2008,51(6):1695-1705
doi: 10.1021/jm701129j
[9] Weiss MM, Harmange JC, Polverino AJ, Bauer D, Berry L, Berry V, Borg G, Bready J, Chen D, Choquette D . Evaluation of a series of naphthamides as potent, orally active vascular endothelial growth factor receptor-2 tyrosine kinase inhibitor[J]. J Med Chem, 2008,51(6):1668-1680
doi: 10.1021/jm701098w
[10] Brekken RA, Overholser JP, Stastny VA, Waltenberger J, Minna JD, Thorpe PE . Selective inhibition of vascular endothelial growth factor(VEGF) receptor 2(KDR/Flk 1) activity by a monoclonal anti-VEGF antibody blocks tumor growth in mice[J]. Cancer Research, 2000,60(18):5117-5124
[11] Marioni G, Giacomelli L , D’Alessandro E, Staffiere C Guzzardo V, Staffieri A, Blamdamura S . Laryngeal carcinoma recurrence rate and disease-free interval are related to CD105 expression but not to vascular endothelial growth factor 2(Flk-1/Kdr) expression[J]. Anticancer Res, 2008,28(1B):551-557
