Journal of Chinese Integrative Medicine ›› 2011, Vol. 9 ›› Issue (1): 77-83.doi: 10.3736/jcim20110113

• Original Experimental Research • Previous Articles     Next Articles

Effects of Chinese herbal medicine Huanglian Jiedu Decoction on urine metabonomics of healthy people

Shu-min Liu(), Jun-hang Li, Chang-feng Liu, Min Cao, Na Wang

  1. Institute of Traditional Chinese Medicine,Heilongjiang University of Chinese Medicine, Harbin 150040, Heilongjiang Province, China
  • Received:2010-10-07 Accepted:2010-10-28 Online:2011-01-20 Published:2011-01-15
  • Contact: Liu Shu-min

Objective: To study biomarkers and their diversification in healthy people’s urine before and after oral administration of Huanglian Jiedu Decoction, a compound Chinese herbal medicine, and to investigate the influence of Huanglian Jiedu Decoction on urine metabonomics of healthy people.
Methods: Ten healthy volunteers joined in this experiment and signed informed consent. They were given oral administration of Huanglian Jiedu Decoction for 3 days, and their urine was collected every morning. The samples were centrifuged at 13 000 ×g for 10 min at 4 ℃, and the supernatant was stored at –75 ℃. The samples were examined by a core technology called ultra-performance liquid chromatography quadruple time of flight/mass spectrometry and then the data were analyzed by principal components analysis and partial least square-discriminant analysis to investigate trajectory diversification and corresponding relations of the time and amount of urine metabonomics before and after oral administration of Huanglian Jiedu Decoction.
Results: Evident variance of urine metabonomics took place after oral administration of Huanglian Jiedu Decoction, which showed that the metabolism of healthy people had been visibly affected. Seven potential biomarkers which play a role in healthy people on behalf of Huanglian Jiedu Decoction were preliminarily found, and one biomarker which had biological significance was identified as 2-(formylamino)-benzoic acid.
Conclusion: The effects of Huanglian Jiedu Decoction on urine metabonomics in healthy people investigated at the level of metabolism can provide theoretical and technical support for the study of Huanglian Jiedu Decoction’s influence on heat syndrome.

Key words: drugs, Chinese herbal, Huanglian Jiedu Decoction, healthy people, urine, metabonomics, biomarkers, pharmacological

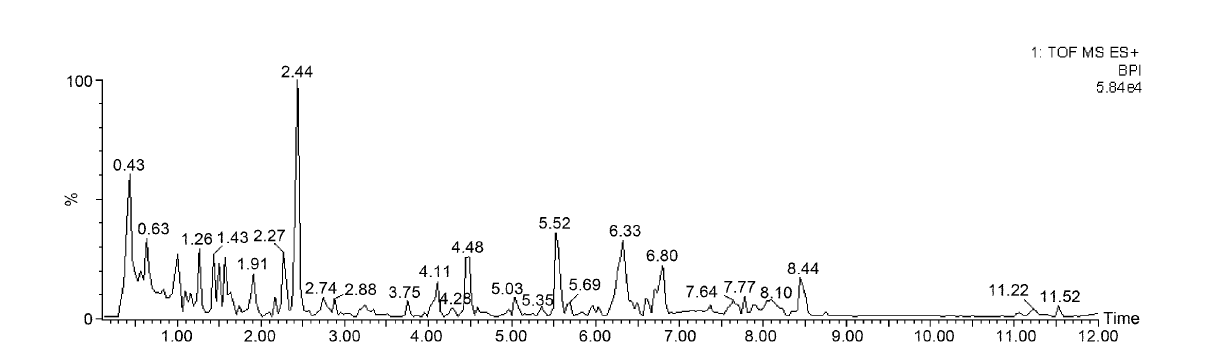

Figure 1

Typical UPLC-Q-TOF/MS map of healthy people’s urine"

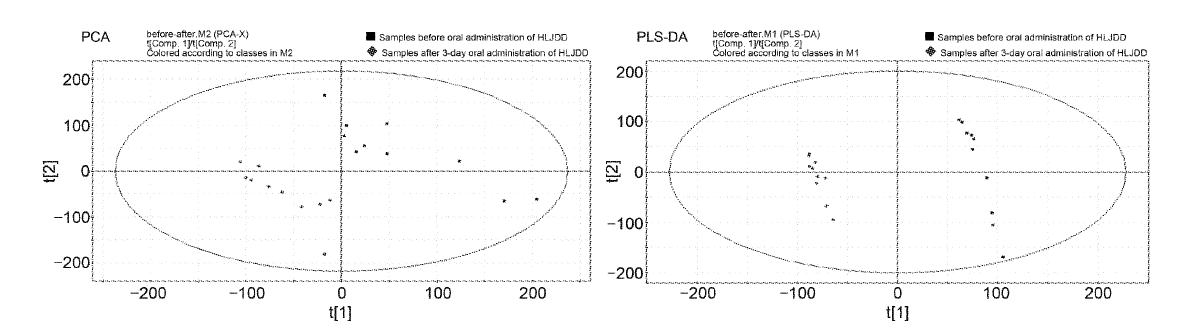

Figure 2

Score plot of healthy people’s urine before and after oral administration of Huanglian Jiedu DecoctionPCA: principal component analysis; PLS-DA: partial least square-discriminant analysis."

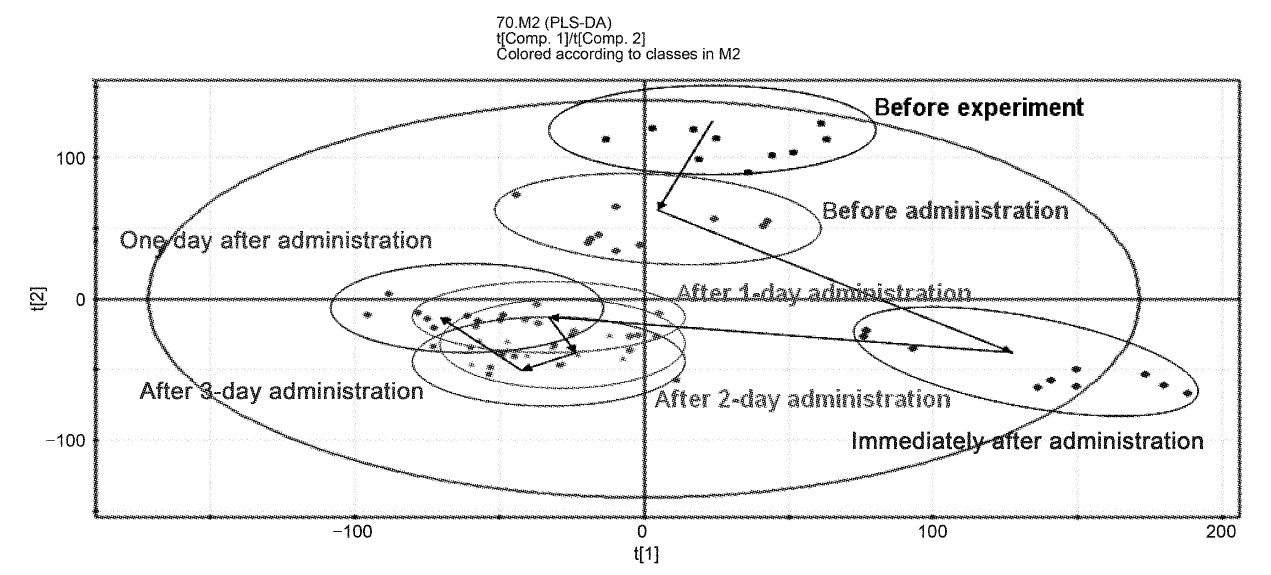

Figure 3

Score plot of healthy people’s urine at the process of experiment"

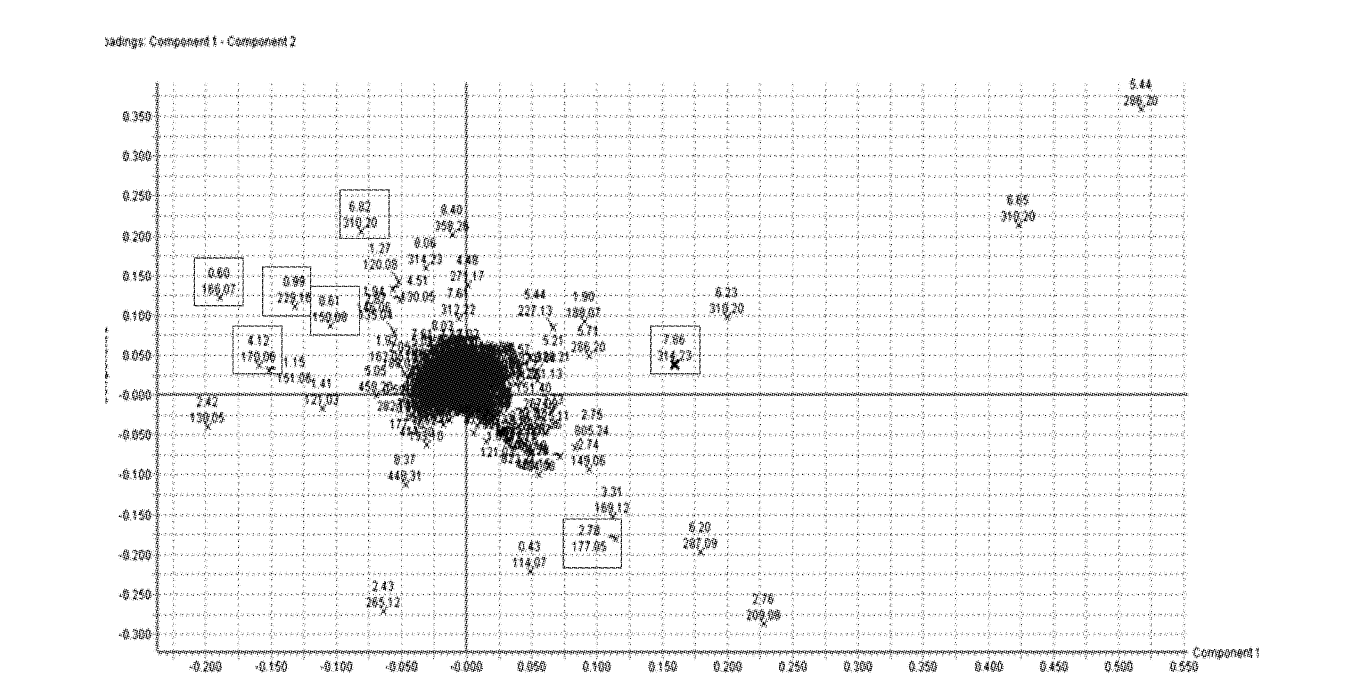

Figure 4

Loading plot of healthy people’s urine before and after 3-day oral administration of HLJDD"

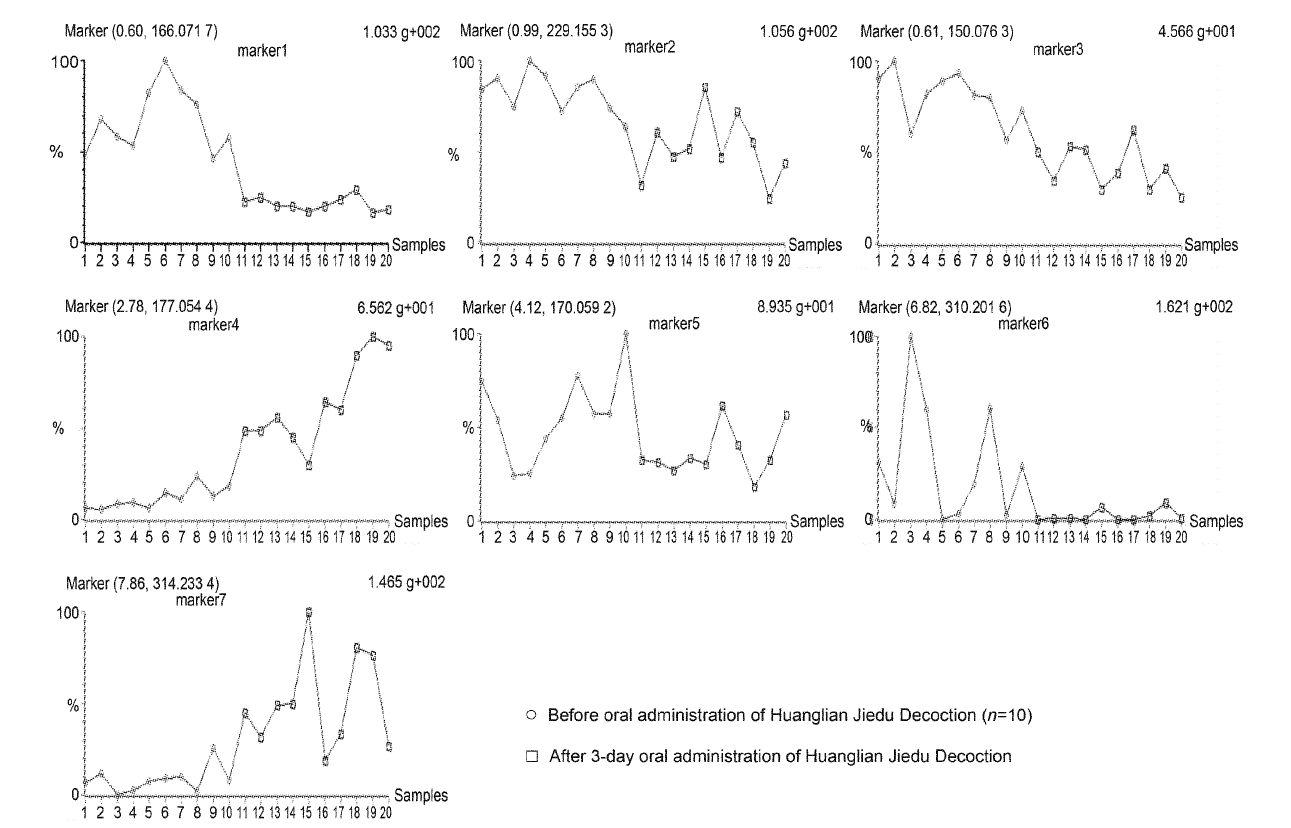

Figure 5

Trending plots of seven biomarkers in different group of healthy people’s urine"

Figure 6

Mass spectrometry information of determined biomarker of Rt_m/z: 0.60_166.071 7 and structural decomposition analysis"

[1] Watanabe-Fukuda Y, Yamamoto M, Miura N, Fukutake M, Ishige A, Yamaguchi R, Nagasaki M, Saito A, Imoto S, Miyano S, Takeda J, Watanabe K . Orengedokuto and berberine improve indomethacin-induced small intestinal injury via adenosine[J]. J Gastroenterol, 2009,44(5):380-389
doi: 10.1007/s00535-009-0005-2
[2] Hwang YS, Shin CY, Huh Y, Ryu JH . Hwangryun-Hae-Dok-tang(Huanglian-Jie-Du-Tang) extract and its constituents reduce ischemia-reperfusion brain injury and neutrophil infiltration in rats[J]. Life Sci, 2002,71(18):2105-2117
doi: 10.1016/S0024-3205(02)01920-3
[3] Huang L, Lu FE, Yang XY, Lu XH, Chen G, Yan ZQ, Wang ZQ . Effects of huanglian jiedu decoction on the oxidative stress of liver mitochondria in insulin resistant rats[J]. Zhongguo Zhong Xi Yi Jie He Za Zhi, 2008,28(8):725-728
黄琳, 陆付耳, 杨小玉, 陆小红, 陈广, 闫忠卿, 汪智全 . 黄连解毒汤对胰岛素抵抗大鼠肝脏线粒体氧化应激的影响[J]. 中国中西医结合杂志, 2008,28(8):725-728
[4] Zhang BG, Cheng TF, Liu QF . The new usage of Huanglian Jiedu Decoction in clinic[J]. Zhong Cheng Yao, 2010,32(2):283-287
张保国, 程铁峰, 刘庆芳 . 黄连解毒汤现代临床新用[J]. 中成药, 2010,32(2):283-287
[5] Nicholson JK, Lindon JC, Holmes E . ‘Metabonomics’: understanding the metabolic responses of living systems to pathophysiological stimuli via multivariate statistical analysis of biological NMR spectroscopic data[J]. Xenobiotica, 1999,29(2):1181-1189
doi: 10.1080/004982599238047
[6] Nicholson JK, Connelly J, Lindon JC, Holmes E . Metabonomics: a platform for studying drug toxicity and gene function[J]. Nat Rev Drug Discov, 2002,1(2):153-161
doi: 10.1038/nrd728
[7] Wagner S, Scholz K, Sieber M, Kellert M, Voelkel W . Tools in metabonomics: an integrated validation approach for LC-MS metabolic profiling of mercapturic acids in human urine[J]. Anal Chem, 2007,79(7):2918-2926
doi: 10.1021/ac062153w
[8] Lutz U, Lutz RW, Lutz WK . Metabolic profiling of glucuronides in human urine by LC-MS/MS and partial least-squares discriminant analysis for classification and prediction of gender[J]. Anal Chem, 2006,78(13):4564-4571
doi: 10.1021/ac0522299
[9] Liu YH, Li J, Xie W, Ding X, Chen XQ . Anti-endotoxic effects of o-aminobenzoic acid from Radix Isatidis[J]. Zhong Nan Yao Xue, 2005,3(3):138-141
刘云海, 李敬, 谢委, 丁玺, 陈雪琴 . 板蓝根中邻氨基苯甲酸的抗内毒素作用[J]. 中南药学, 2005,3(3):138-141
