Colorimetric investigation of normal tongue and lip colors from 516 healthy adults by visible reflection spectrum

Chang-chun Zeng1(), Li Yang2, Ying Xu1, Pei-pei Liu1, Shi-jun Guo1, Song-hao Liu1,3

  1. 1. Laboratory of Photonic Chinese Medicine, South China Normal University, Guangzhou 510631, Guangdong Province, China
    2. Department of Internal Medicine, Guangdong Provincial Hospital of Traditional Chinese Medicine, Guangzhou 510120, Guangdong Province, China
    3. School for Information and Optoelectronic Science and Engineering, South China Normal University, Guangzhou 510631, Guangdong Province, China
  • Received:2011-05-24 Accepted:2011-06-22 Online:2011-09-20 Published:2011-09-15
  • Contact: Zeng Chang-chun

Objective:Using the data from normal tongue and lip colors of normal people which were collected by the visible reflection spectrum, we analyzed the colorimetric parameters of tongue and lip colors.

Methods:In this study, 516 healthy students aging from 19 to 26 from the colleges and universities of Guangdong Province of China were taken as research subjects. After collecting the data of tongue and lip colors of the 516 subjects using visible reflectance spectroscopy, CIE XYZ tristimulus values as defined by the International Commission on Illumination in 1964 were calculated, and the colorimetric parameters of the normal tongue and lip colors were obtained, such as the CIE 1964 chromaticity coordinate, brightness, dominant wavelength and excitation purity.

Results:The results of CIE 1964 chromaticity diagram calculated on the visible reflection spectrum showed that the normal tongue color chromaticity coordinate x10 was 0.3413±0.0085 and y10 was 0.3326±0.0051, and the normal lip color chromaticity coordinate x10 was 0.3577±0.0092 and y10 was 0.338 3±0.005 7; the brightness Y values of the normal tongue color and lip colors were 17.96±3.78 and 19.78±3.72, the dominant wavelength values of the normal tongue color and lip color were (626.3±51.6) nm and (600.4±18.2) nm, and the excitation purity values of the normal tongue color and lip color were 0.083±0.031 and 0.144±0.036, respectively.

Conclusion:Application of the visible reflection spectrum is a standard way to collect colorimetric data for inspection of the complexion. The investigation of chromaticity coordinates, brightness, dominant wavelength and excitation purity of the normal tongue and lip colors may offer the basic reference for diagnosing morbid complexion on the tongue and lip colors in traditional Chinese medicine.

Key words: inspection, tongue inspection, objectifying tongue inspection, lip, light, XYZ tristimulus values, brightness, dominant wavelength, chromaticity coordinates, excitation purity

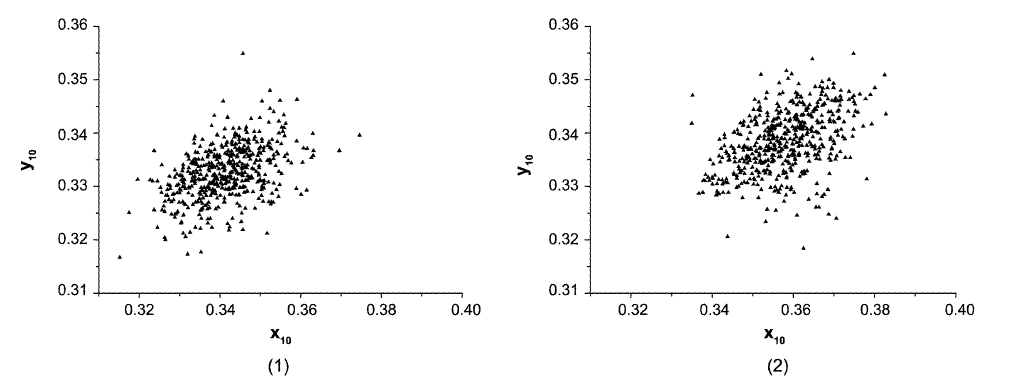

Figure 1

Distribution of normal tongue color (1) and lip color (2) of normal people in CIE 1964 chromaticity coordinates"

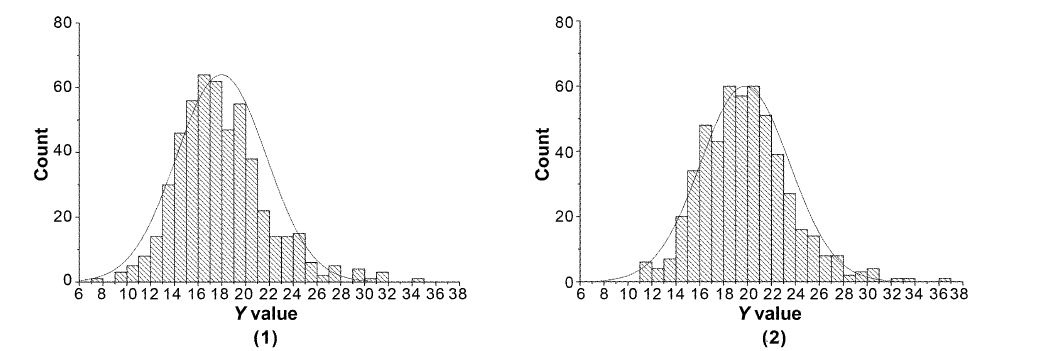

Figure 2

Distribution of normal tongue color (1) and lip color (2) of normal people in brightness Y value"

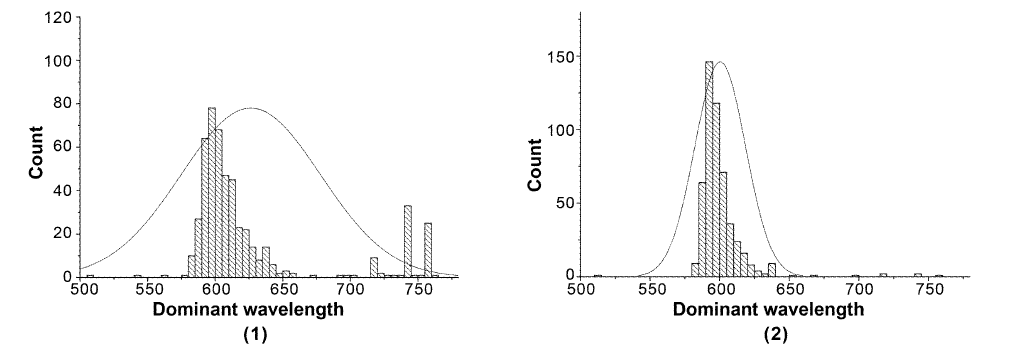

Figure 3

Distribution of normal tongue color (1) and lip color (2) of normal people in dominant wavelength"

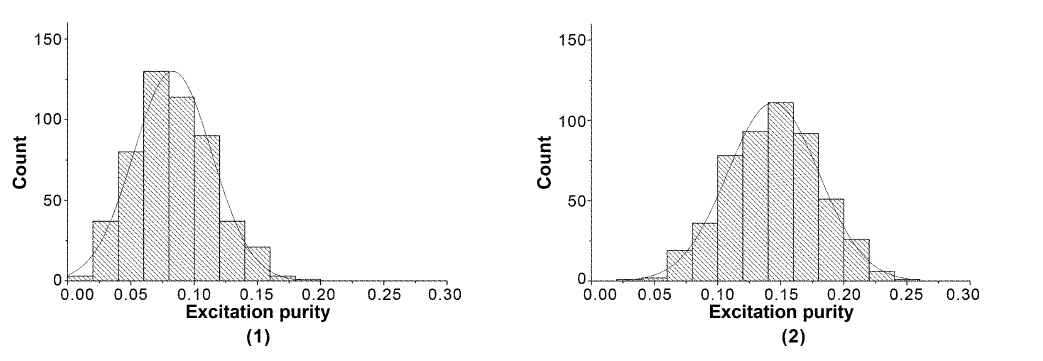

Figure 4

Distribution of normal tongue color (1) and lip color (2) of normal people in excitation purity"

[1] Liu SH, Deng TT . Photonic traditional Chinese medicine[J]. Zhongguo Zhong Yi Ji Chu Yi Xue Za Zhi, 2001,7(4):1-3
刘颂豪, 邓铁涛 . 光子中医学[J]. 中国中医基础医学杂志, 2001,7(4):1-3
[2] Deng TT, Guo ZQ. Diagnostics of traditional Chinese medicine[M]. Beijing: People’s Medical Publishing House, 1985, 119-156
邓铁涛, 郭振球 . 中医诊断学[M]. 北京: 人民卫生出版社, 1985, 119-156
[3] Kong M, Zeng CC, Liu YZ, Liu SH. Quantitative analysis and classification of tongue inspection based on the visible reflection spectrum[J].J Chin Integr Med, 2011,9(1):28-35
孔猛, 曾常春, 刘友章, 刘颂豪 .基于可见反射光谱法的中医舌诊定量与归类分析研究[J].中西医结合学报, 2011,9(1):28-35 Teng XJ, Qiu JY, Zeng XD. Color measurement[M]. Beijing: China Metrology Publishing House, 2007, 28-34
[4] 滕秀金, 邱迦易, 曾晓栋 . 颜色测量技术[M]. 北京: 中国计量出版社, 2007, 28-34
[5] Hu WJ, Tang SQ, Zhu ZF. Modern color science and application[M]. Beijing: Beijing Institute of Technology Press, 2007, 1-101
胡威捷, 汤顺青, 朱正芳 . 现代颜色技术原理及应用[M]. 北京: 北京理工大学出版社, 2007, 1-101
[6] Wikipedia. Standard illuminant (2011-5-2)[ 2011-5-26].
[7] Zeng CC, Wang XJ, Li ZR, Liu SH . Study of colour inspection of TCM and application of photonics on colour inspection[J]. Zhongguo Zhong Yi Ji Chu Yi Xue Za Zhi, 2004,10(9):74-76
曾常春, 王先菊, 李子孺, 刘颂豪 . 中医色诊研究及光子技术在色诊中的应用[J]. 中国中医基础医学杂志, 2004,10(9):74-76
[8] Qiao YY, Yang L, Wu X, Zhang MT . Study on tongue image recognition[J]. Ji Suan Ji Xue Yu Ying Yong Hua Xue, 2008,25(6):721-723
乔园园, 杨玲, 吴夏, 张明涛 . 舌色的模式识别研究[J]. 计算机学与应用化学, 2008,25(6):721-723
[9] China Association of Chinese Medicine. ZYYXH/T157-2009 Classification and determination of constitution in TCM[M]. Beijing: China Press of Traditional Chinese Medicine, 2009
中华中医药学会. ZYYXH/T157-2009中医体质分类与判定[M]. 北京: 中国中医药出版社, 2009
