Green synthesis, characterization and anticancer potential of platinum nanoparticles Bioplatin

 Yogesh Bendale(), Vineeta Bendale, Saili Paul, Soumya Sundar Bhattacharyya()

  1. Research and Development Section, Cell and Molecular Biology Department, Rasayani Biologics Private Limited, Pune 411030, IndiaResearch and Development Section, Cell and Molecular Biology Department, Rasayani Biologics Private Limited, Pune 411030, India
  • Received:2012-01-05 Accepted:2012-02-12 Online:2012-06-20 Published:2018-06-15
  • Contact: Bendale Yogesh,Sundar Bhattacharyya Soumya;

Objective: In the present study, the anticancer potential of platinum nanoparticles Bioplatin is explored and the mode of interactions of Bioplatin with calf thymus DNA and honey was analyzed.
Methods: Bioplatin was synthesized with the help of green nanotechnology and characterized by particle size, zeta potential and surface morphology. The interaction of Bioplatin with DNA and honey was also checked with the help of circular dichroism spectroscopy and Fourier-transform infrared spectroscopy, respectively. The anticancer potential of Bioplatin was evaluated on peripheral blood mononuclear cells and A375 cells in vitro by analyzing results of MTT (3-(4,5)-dimethylthiahiazo-(-z-y1)-3,5-di-phenytetrazoliumromide), fluorescence microscopic studies and DNA fragmentation assay.
Results: Bioplatin exhibited a small particle size of 137.5 nm and a surface charge of –35.8 mV. Bioplatin interacted with DNA and brought in effective changes in structure and conformation of DNA, and formed a new complex that increased its stability of DNA intercalated with the base pair of DNA. In vitro studies demonstrated that Bioplatin arrested cell proliferation, and induced chromatin condensation and internucleosomal DNA fragmentation.
Conclusion: Bioplatin induces apoptosis in cancer cells and may have some beneficial effect against human carcinoma. It interacts with DNA, brings stabilization to DNA, and thus prevents the replication of DNA.

Key words: metal nanoparticles, antineoplastic agents, apoptosis, biosynthetic pathways

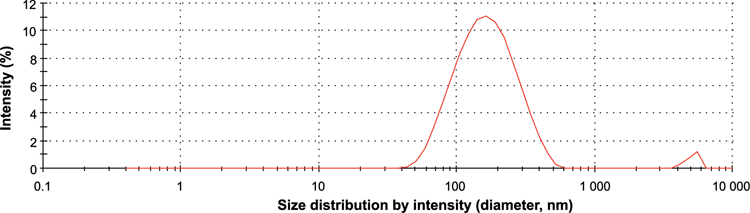

Figure 1

Average particle size obtained from dynamic light scattering data for Bioplatin"

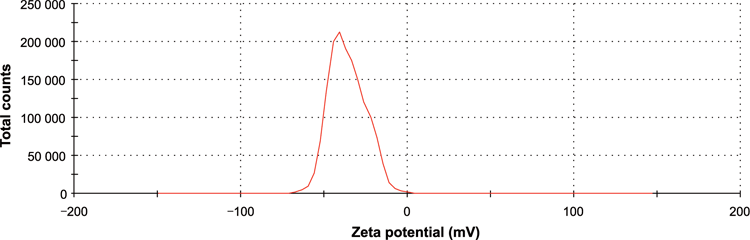

Figure 2

Zeta potential of Bioplatin"

Figure 3

Surface morphology of Bioplatin observed by scanning electron microscopy (30.0 kV, ×100 000)"

Figure 4

Surface morphology observed by atomic force microscopy in two different scanning modes"

Figure 5

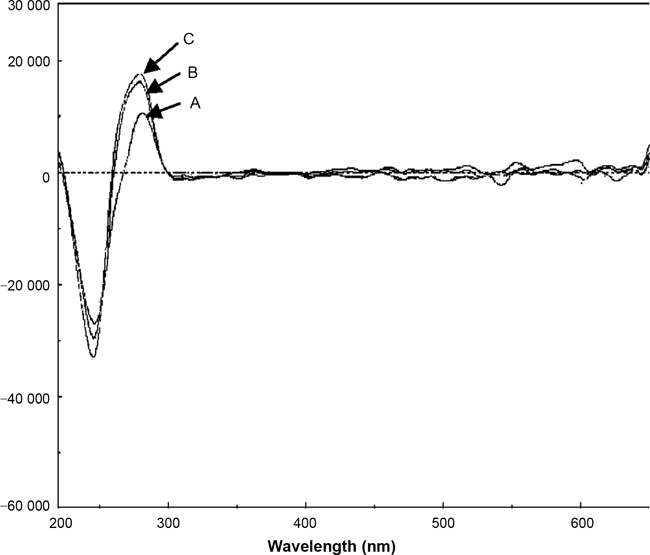

Circular dichroism spectra of calf thymus DNA incubated with Bioplatin A: Calf thymus DNA; B: Calf thymus DNA plus 20 μmol/L Bioplatin; C: Calf thymus DNA plus 40 μmol/L Bioplatin."

Figure 6

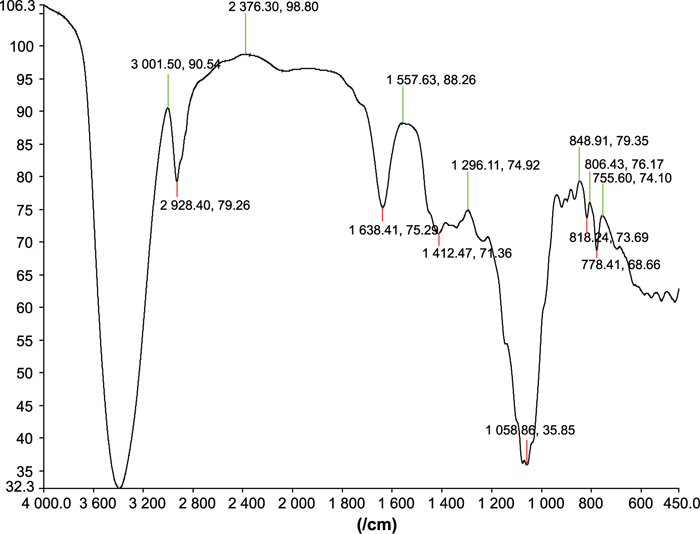

Fourier-transform infrared spectra of Bioplatin mixed with honey"

Figure 7

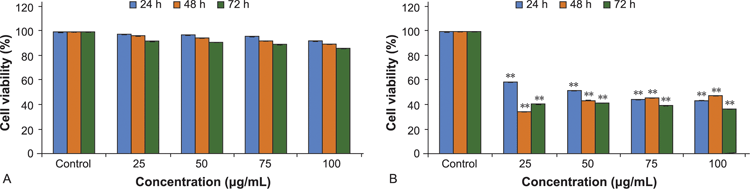

Cell viability of Bioplatin with different concentrations against PBMCs (A) and A375 cells (B) tested by MTT assay All results were expressed with vehicle control as 100%. Data are represented as mean ± standard deviation, n=3; *P<0.05, **P<0.01, vs control group. PBMC: peripheral blood mononuclear cell; MTT: 3-(4,5)-dimethylthiahiazo-(-z-y1)-3,5-di-phenytetrazoliumromide."

Figure 8

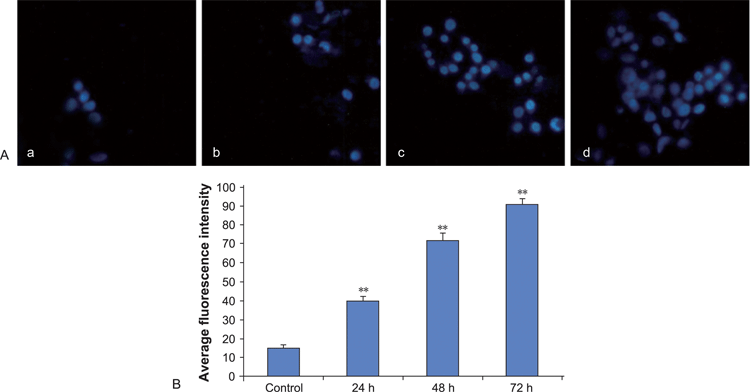

Fluorescence photomicrographs of A375 cells stained with DAPI A: Cells were stained with DAPI (a: Control; b to d: 24, 48, and 72 h after 100 μg/mL Bioplatin treatment). The cells were harvested at different time intervals and the blue fluorescence was monitored by fluorescence microscopy (×10). B: Histogram represents average fluorescence intensity of cells after DAPI staining. Data are represented as mean ± standard error, n=3; **P<0.01, vs control group. DAPI: 4′,6-diamidino-2-phenylindole."

Figure 9

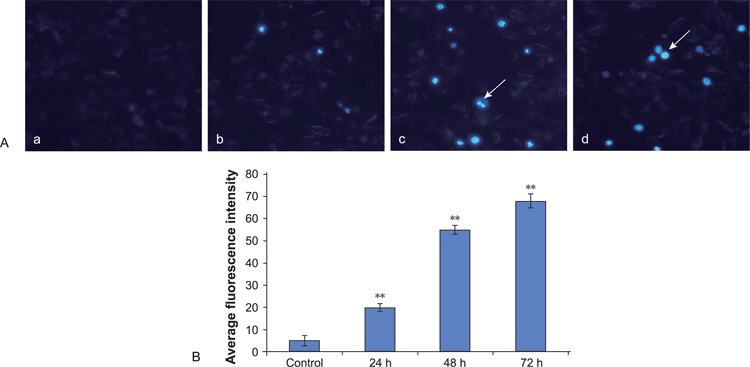

Fluorescence photomicrographs of A375 cells stained with Hoechst 33258 A: Cells were stained with Hoechst 33258 (a: Control; b to d: 24, 48, and 72 h after 100 μg/mL Bioplatin treatment). The cells were harvested at different time intervals and the blue fluorescence was monitored by fluorescence microscopy (×10). B: Histogram represents average fluorescence intensity of cells after Hoechst 33258 staining. Data are represented as mean ± standard error, n=3; **P<0.01, vs control group."

Figure 10

DNA fragmentation after treatment of cells with Bioplatin in different time intervals A375 cells were treated with 100 μg/mL Bioplatin for 24, 48 and 72 h and Genomic DNA was extracted and DNA was separated on 1% agarose gels and stained with ethidium bromide. L1: Control DNA; L2: DNA from treated cells (24 h); L3: DNA from treated cells (48 h); L4: DNA from treated cells (72 h); L5: A standard DNA ladder."

[1] Brannon-Peppas L, Blanchette JO . Nanoparticle and targeted systems for cancer therapy[J]. Adv Drug Deliv Rev, 2004,56(11):1649-1659
doi: 10.1016/j.addr.2004.02.014
[2] Kawasaki ES, Player A . Nanotechnology, nanomedicine, and the development of new, effective therapies for cancer[J]. Nanomedicine, 2005,1(2):101-109
doi: 10.1016/j.nano.2005.03.002 pmid: 17292064
[3] Zhang L, Gu FX, Chan JM, Wang AZ, Langer RS, Farokhzad OC . Nanoparticles in medicine: therapeutic applications and developments[J]. Clin Pharmacol Ther, 2008,83(5):761-769
doi: 10.1038/sj.clpt.6100400 pmid: 17957183
[4] Karakoti AS, Hench LL, Seal S . The potential toxicity of nanomaterials — the role of surfaces[J]. JOM, 2006,58(7):77-82
doi: 10.1007/s11837-006-0147-0
[5] Bhattacharya R, Mukherjee P . Biological properties of “naked” metal nanoparticles[J]. Adv Drug Deliv Rev, 2008,60(11):1289-1306
doi: 10.1016/j.addr.2008.03.013 pmid: 18501989
[6] Pelka J, Gehrke H, Esselen M, Türk M, Crone M , Brase S, Muller T, Blank H, Send W, Zibat V, Brenner P, Schneider R, Gerthsen D, Marko D . Cellular uptake of platinum nanoparticles in human colon carcinoma cells and their impact on cellular redox systems and DNA integrity[J]. Chem Res Toxicol, 2009,22(4):649-659
doi: 10.1021/tx800354g
[7] Porcel E, Liehn S, Remita H, Usami N, Kobayashi K, Furusawa Y, Le Sech C, Lacombe S . Platinum nanoparticles: a promising material for future cancer therapy? Nanotechnology. 2010; 21(8):85103.
doi: 10.1088/0957-4484/21/8/085103 pmid: 20101074
[8] Vaidyanathan R, Kalishwaralal K, Gopalram S, Gurunathan S . Nanosilver — the burgeoning therapeutic molecule and its green synjournal[J]. Biotechnol Adv, 2009,27(6):924-937
doi: 10.1016/j.biotechadv.2009.08.001 pmid: 19686832
[9] Bendale YN, Bendale VY . Novel bioplatinum, process for preparation, method of administration for anti-tumour treatment: India, 2007; WO/031888.
[10] Bhattacharyya SS, Paul S, De A, Das D, Samadder A, Boujedaini N, Khuda-Bukhsh AR . Poly(lactide-co-glycolide) acid nanoencapsulation of a synthetic coumarin: cytotoxicity and bio-distribution in mice, in cancer cell line and interaction with calf thymus DNA as target[J]. Toxicol Appl Pharmacol, 2011,253(3):270-281
doi: 10.1016/j.taap.2011.04.010
[11] Mosmann T . Rapid colorimetric assay for cellular growth and survival: application to proliferation and cytotoxicity assays[J]. J Immunol Methods, 1983,65(1-2):55-63
doi: 10.1016/0022-1759(83)90303-4
[12] Dong Y, Feng SS . Methoxy poly(ethylene glycol)-poly(lactide)(MPEG-PLA) nanoparticles for controlled delivery of anticancer drugs[J]. Biomaterials, 2004,25(14):2843-2849
doi: 10.1016/j.biomaterials.2003.09.055
[13] Savic R, Luo L, Eisenberg A, Maysinger D . Micellar nanocontainers distribute to defined cytoplasmic organelles[J]. Science, 2003,300(5619):615-618
doi: 10.1126/science.1078192
[14] Gaucher G, Dufresne MH, Sant VP, Kang N, Maysinger D, Leroux JC . Block copolymer micelles: preparation, characterization and application in drug delivery[J]. J Control Release, 2005,109(1-3):169-188
doi: 10.1016/j.jconrel.2005.09.034 pmid: 16289422
[15] Khuda-Bukhsh AR, Bhattacharyya SS, Paul S, Boujedaini N . Polymeric nanoparticle encapsulation of a naturally occurring plant scopoletin and its effects on human melanoma cell A375[J]. J Chin Integr Med, 2010,8(9):853-862
Khuda-Bukhsh AR, Bhattacharyya SS, Paul S, Boujedaini N. 天然植物化学成分东莨菪亭聚合物纳米胶囊的制备及其对人黑色素瘤A375细胞的作用[J]. 中西医结合学报, 2010,8(9):853-862
[16] Psomas G, Tarushi A, Efthimiadou EK . Synjournal, characterization and DNA-binding of the mononuclear dioxouranium(Ⅵ) complex with ciprofloxacin[J]. Polyhedron, 2008,27(1):133-138
doi: 10.1016/j.poly.2007.08.043
[17] Kong DM, Wang J, Zhu LN, Jin YW, Li XZ, Shen HX, Mi HF . Oxidative DNA cleavage by Schiff base tetraazamacrocyclic oxamido nickel(Ⅱ) complexes[J]. J Inorg Biochem, 2008,102(4):824-832
doi: 10.1016/j.jinorgbio.2007.12.002 pmid: 18226836
[18] Philip D . Honey mediated green synjournal of silver nanoparticles[J]. Spectrochim Acta A Mol Biomol Spectrosc, 2010,75(3):1078-1081
doi: 10.1016/j.saa.2009.12.058 pmid: 20060777
