Journal of Chinese Integrative Medicine ›› 2013, Vol. 11 ›› Issue (5): 320-326.doi: 10.3736/jintegrmed2013043

• Research Article • Previous Articles     Next Articles

Effects of cosmetics containing purified honeybee (Apis mellifera L.) venom on acne vulgaris

Sang Mi Hana(), Kwang Gill Leea, Sok Cheon Pakb

  1. a. Department of Agricultural Biology, National Academy of Agricultural Science, Suwon 441-100, Korea
    b. School of Biomedical Sciences, Charles Sturt University, Bathurst, New South Wales 2795, Australia
  • Received:2012-11-26 Accepted:2013-03-06 Online:2013-09-10 Published:2013-09-15


Acne vulgaris is a chronic dermatologic problem with multiple factors involved in its pathogenesis. Alternative solutions to acne treatment were instigated by antibiotic resistance despite of its extensive use. Purified bee venom (PBV) has been proposed as a promising candidate for that purpose. The present study was designed to confirm the antibacterial effect of PBV and access the efficacy of cosmetics containing PBV in subjects with acne vulgaris.


The skin bacterium Propionibacterium acnes was incubated with PBV at various concentrations and bacterial growth was evaluated using the colony forming unit (CFU) assay. The mechanism of PBV employed in killing P. acnes was examined by scanning electron microscopy (SEM) and transmission electron microscopy (TEM). In addition, a total of 12 subjects were randomized in a double-blind, controlled trial to receive either cosmetics containing PBV or cosmetics without PBV for two weeks. Evaluations included lesion counts and skin microorganism.


PBV exhibited antimicrobial activity in a concentration-dependent manner, reducing the number of P. acnes CFU by approximately 6 logs at a concentration of 0.5 mg. When PBV concentration was higher than 1.0 mg, no P. acnes colonies were spotted on an agar. TEM and SEM of untreated P. acnes illustrated the normal pleomorphic structure, whereas the PBV-treated bacterium lost the integrity of surface architecture. Significant difference (P=0.027) in the grading levels based on numbers of lesion counts for inflammatory and noninflammatory was observed in favour of the PBV group compared with the control group. In terms of average decrement of skin microorganism, subjects receiving cosmetics containing PBV experienced a significant 57.5% decrease of adenosine triphosphate levels, whereas participants receiving cosmetics without PBV experienced a nonsignificant decrease of 4.7%.


These results show that the in vitro actions of antimicrobial activity of PBV were translated in vivo. Cosmetics containing PBV provided a certain degree of efficacy in terms of lesion counts and skin microorganism concentration compared with cosmetics without PBV in subjects with acne vulgaris. PBV may be a good candidate compound for developing therapeutic drug for the treatment of acne vulgaris.

Key words: Bee venoms, Acne vulgaris, Propionibacterium acnes, Skin, Cosmetics

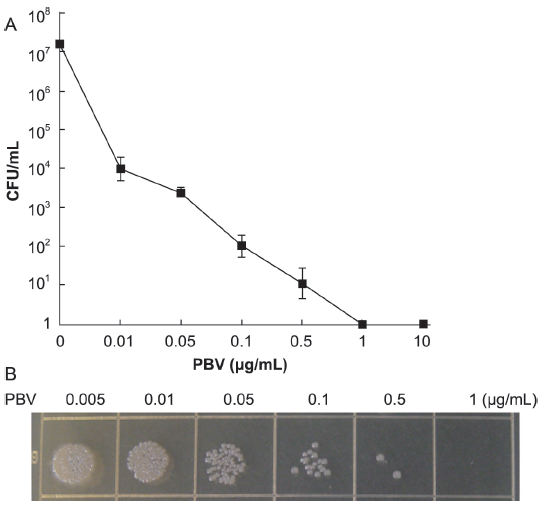

Figure 1

PBV has antimicrobial activity against P. acnesA: Various concentrations of PBV were incubated with P. acnes for 4 h at 37 °C and tested for antimicrobial activity using the CFU assay. B: The antimicrobial activity of PBV in a qualitative CFU assay which involved plating PBV with P. acnes on solid media and counting individual colonies to determine the CFU. Experiments in A and B are representative of three experiments. PBV: purified bee venom; CFU: colony forming unit."

Figure 2

PBV caused architectural changes of cell wall of P. acnes demonstrated by electron micrographsA: Scanning electron microscopy analysis demonstrated the effect of PBV on the surface of P. acnes as compared to the surfaces of untreated control bacteria (× 20 000). B: Transmission electron microscopy revealed that PBV treatment disrupted the sharply layered surface architecture of P. acnes, making the cell wall less distinct and more permeable to fluid influx (× 1 000, pictures in the square are × 3 150). PBV: purified bee venom."

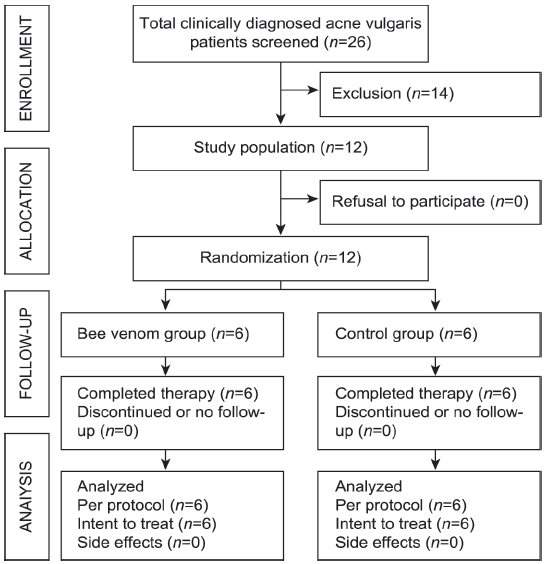

Figure 3

Flow diagram of the number of patients included in this trial"

Figure 4

Photographs of subjects at baseline and week 2 of treatment for (A) control group and (B) purified bee venom group"



[1] Kaplan SL . Implications of methicillin-resistant Staphylocccus aureus as a community-acquired pathogen in pediatric patients[J]. Infect Dis Clin North Am, 2005,19(3):747-757
doi: 10.1016/j.idc.2005.05.011
[2] Lee DS, Kang MS, Hwang HJ, Eom SH, Yang JY, Lee MS, Lee WJ, Choi JS, Kim YM . Synergistic effect between dieckol from Ecklonia stolonifera and β-lactams against methicillin-resistant Staphylococcus aureus[J]. Biotechnol Bioprocess Eng, 2008,13(6):758-764
doi: 10.1007/s12257-008-0162-9
[3] Bramley AJ, Patel AH , O'Reilly M, Foster R, Foster TJ.Roles of α-toxin and β-toxin in virulence of Staphylocccus aureus for the mouse mammary gland[J]. Infect Immun, 1989,57(8):2489-2494
[4] Hiramatsu K, Hanaki H, Ino T, Yabuta K, Oguri T, Tenover FC . Methicillin-resistant Staphylocccus aureus clinical strain with reduced vancomycin susceptibility[J]. J Antimicrob Chemother, 1997,40(1):135-136
doi: 10.1093/jac/40.1.135
[5] Piek T. Venom of the Hymenoptera. New York: Academy Press. 1986.
[6] Collier CN, Harper JC, Cafardi JA, Cantrell WC, Wang W, Foster KW, Elewski BE . The prevalence of acne in adults 20 years and older[J]. J Am Acad Dermatol, 2008,58(1):56-59
doi: 10.1016/j.jaad.2007.06.045
[7] Webster GF . Evidence-based review: fixed-combination therapy and topical retinoids in the treatment of acne[J]. J Drugs Dermatol, 2011,10(6):636-644
[8] Gollnick H . Current concepts of the pathogenesis of acne: implications for drug treatment[J]. Drugs, 2003,63(15):1579-1596
doi: 10.2165/00003495-200363150-00005
[9] Han SM, Lee KG, Yeo JH, Baek HJ, Park KK . Antibacterial and anti-inflammatory effects of honeybee(Apis mellifera) venom against acne-inducing bacteria[J]. J Med Plants Res, 2010,4(6):459-464
[10] Ernst WA, Thoma-Uszynski S, Teitelbaum R, Ko C, Hanson DA, Clayberger C, Krensky AM, Leippe M, Bloom BR, Ganz T, Modlin RL . Granulysin, a T cell product, kills bacteria by altering membrane permeability[J]. J Immunol, 2000,165(12):7102-7108
doi: 10.4049/jimmunol.165.12.7102
[11] Sung KJ, Rho YS, Choi EH, Oh JJ, Lee JH, Kim S, Kim NI . Korean acne grading system[J]. Korean J Dermatol, 2004,42(10):1241-1247
[12] Kinney MA, Yentzer BA, Fleischer AB Jr, Feldman SR . Trends in the treatment of acne vulgaris: are measures being taken to avoid antimicrobial resistance?[J] Drugs Dermatol. 2010; 9(5):519-524.
[13] Son DJ, Lee JW, Lee YH, Song HS, Lee CK, Hong JT . Therapeutic application of anti-arthritis, pain-releasing, and anti-cancer effects of bee venom and its constituent compounds[J]. Pharmacol Ther, 2007,115(2):246-270
doi: 10.1016/j.pharmthera.2007.04.004
[14] Kang SY, Roh DH, Yoon SY, Moon JY, Kim HW, Lee HJ, Beitz AJ, Lee JH . Repetitive treatment with diluted bee venom reduces neuropathic pain via potentiation of locus coeruleus noradrenergic neuronal activity and modulation of spinal NR1 phosphorylation in rats[J]. J Pain, 2012,13(2):155-166
doi: 10.1016/j.jpain.2011.10.012
[15] Jang MH, Shin MC, Lim S, Han SM, Park HJ, Shin I, Lee JS, Kim KA, Kim EH, Kim CJ . Bee venom induces apoptosis and inhibits expression of cyclooxygenase-2 mRNA in human lung cancer cell line NCI-H1299[J]. J Pharm Sci, 2003,91(2):95-104
doi: 10.1254/jphs.91.95
[16] Ip SW, Liao SS, Lin SY, Lin JP, Yang JS, Lin ML, Chen GW, Lu HF, Lin MW, Han SM, Chung JG . The role of mitochondria in bee venom-induced apoptosis in human breast cancer MCF7 cells[J]. In Vivo, 2008,22(2):237-245
[17] Wang C, Chen T, Zhang N, Yang M, Li B, Lü X, Cao X, Ling C . Melittin, a major component of bee venom, sensitizes human hepatocellular carcinoma cells to tumor necrosis factor-related apoptosis-inducing ligand(TRAIL)-induced apoptosis by activating CaMKII-TAK1-JNK/p38 and inhibiting IκBα kinase-NFκB[J]. J Biol Chem, 2009,284(6):3804-3813
doi: 10.1074/jbc.M807191200
[18] Park MH, Choi MS, Kwak DH, Oh KW , Yoon do Y, Han SB, Song HS, Song MJ, Hong JT.Anti-cancer effect of bee venom in prostate cancer cells through activation of caspase pathway via inactivation of NF-κB[J]. Prostate, 2011,71(8):801-812
doi: 10.1002/pros.21296
[19] Kim SJ, Park JH, Kim KH, Lee WR, Chang YC, Park KK, Lee KG, Han SM, Yeo JH, Pak SC . Bee venom inhibits hepatic fibrosis through suppression of pro-fibrogenic cytokine expression[J]. Am J Chin Med, 2010,38(5):921-935
doi: 10.1142/S0192415X10008354
[20] Lee WR, Kim SJ, Park JH, Kim KH, Chang YC, Park YY, Lee KG, Han SM, Yeo JH, Pak SC, Park KK . Bee venom reduces atherosclerotic lesion formation via anti-inflammatory mechanism[J]. Am J Chin Med, 2010,38(6):1077-1092
doi: 10.1142/S0192415X10008482
[21] Kim SJ, Park JH, Kim KH, Lee WR, Pak SC, Han SM, Park KK . The protective effect of apamin on LPS/Fat-induced atherosclerotic mice[J]. Evid Based Complement Alternat Med, 2012,2012:305454
[22] Han SM, Lee KG, Yeo JH, Kweon HY, Woo SO, Baek HJ, Park KK . Inhibitory effect of bee venom against ultraviolet B induced MMP-1 and MMP-3 in human dermal fibroblasts[J]. J Apic Res, 2007,46(2):94-98
doi: 10.1080/00218839.2007.11101374
[23] Han S, Lee K, Yeo J, Kim W, Park K . Biological effects of treatment of an animal skin wound with honeybee(Apis mellifera. L) venom[J]. J Plast Reconstr Aesthet Surg, 2011,64(3):e67-e72
doi: 10.1016/j.bjps.2010.08.022
[24] Padol AR, Jayakumar K, Shridhar NB, Narayana Swamy HD, Narayana Swamy M, Mohan K . Safety evaluation of silk protein film(a novel wound healing agent) in terms of acute dermal toxicity, acute dermal irritation and skin sensitization[J]. Toxicol Int, 2011,18(1):17-21
doi: 10.4103/0971-6580.75847
[25] Han SM, Lee KG, Yeo JH, Pak SC . Dermal and ocular irritation studies of honeybee(Apis mellifera L.) venom[J]. Am J Chin Med, 2012,40(4):795-800
doi: 10.1142/S0192415X12500590
[26] Han SM, Lee KG, Park KK, Pak SC . Skin sensitization study of bee venom(Apis mellifera L.) in guinea pigs and rats[J]. Cutan Ocul Toxicol, 2013,32(1):27-30
doi: 10.3109/15569527.2012.698402
