Radiosensitization of β-elemene on VX2 carcinoma transplanted on kidney in rabbits in vivo

Jun-jun She1,2, Zi-ming Wang1, Xiang-ming Che2, Cheng-en Pan2

  1. 1. Department of Urology, Second Hospital, School of Medicine, Xi’an Jiaotong University,Xi’an, Shaanxi Province 710004, China;
    2. Department of General Surgery, First Hospital, School of Medicine, Xi’an Jiaotong University, Xi’an, Shaanxi Province 710061, China;
  • Online:2006-07-31 Published:2006-07-15


To investigate the radiosensitization of β-elemene on VX2 carcinoma transplanted on kidney in rabbits in vivo.


The rabbits were all transplanted with VX2 carcinoma on kidney. The appropriate dose of β-elemene infusion via renal artery for further study on radiosensitization was determined. Then fifty-five rabbits were divided into three groups: untreated group, radiation group and radiation plus β-elemene-treated group. After corresponding intervention for each group, the tumor volume was measured by ultrasonography and spiral computed tomography. The sensitization enhancement ratio (SER) of β-elemene was calculated. The pathological change of tumor tissue in kidey was observed by light microscopy and electron transmission microscopy. The apoptotic index was also examined by TdT-mediated dUTP-biotin nick end labeling method.


The most significant radiosensitivity was observed in the radiation plus β-elemene-treated group with 6 Mev X-ray radiation dose of 3 Gy·Fx –1·d –1×5 d and β-elemene dose of 10 mg·kg –1·d –1. The average time delayed for tumor growth was obviously longer in the radiation plus β-elemene-treated group than those in the untreated group and radiation group. The SER of β-elemene was 1.89. The apoptotic index of tumor cells in the radiation plus β-elemene-treated group was also significantly higher than those in the untreated group and radiation group.


The β-elemene can enhance the effects of irradiation on VX2 carcinoma transplanted to kidney in rabbits in vivo by inducing apoptosis of tumor cells.

Key words: β-elemene, VX2 carcinoma transplanted in rabbits, Radiosensitization, Apoptosis

CLC Number:

  • R737.11

Table 1

Effects of infusion of β-elemene with different doses via renal artery on growth of VX2 carcinoma transplanted in rabbits(ヌ±S, d)"

Group n Average time for enlargement of tumor Average time delayed
volume (from 3 cm3 to 10 cm3) for tumor growth
Untreated 5 18.8±1.00
5 mg·kg–1·d–1 5 19.5±1.05 0.7±0.05
10 mg·kg–1·d–1 5 19.7±1.20 0.9±0.20
15 mg·kg–1·d–1 5 20.5±1.10* 1.7±0.10*
20 mg·kg–1·d–1 5 21.3±1.35** 2.5±0.35**

Table 2

Effects of radiation therapy (6 Mev X-ray) with different doses and infusion of β-elemene with different doses via renal artery on growth of VX2 carcinoma transplanted in rabbits(ヌ±S, d)"

Group n Average time for enlargement of tumor Average time delayed
volume (from 3 cm3 to 10 cm3) for tumor growth
Untreated 5 18.8±1.00
1 Gy·Fx–1·d–1×5 d 5 19.2±1.00 0.4±0.00
2 Gy·Fx–1·d–1×5 d 5 20.0±1.10 1.2±0.10
3 Gy·Fx–1·d–1×5 d 5 20.9±1.30* 2.1±0.30*
4 Gy·Fx–1·d–1×5 d 5 21.4±1.89* 2.6±0.89*
5 Gy·Fx–1·d–1×5 d 5 23.6±1.78** 4.8±0.78**
Radiation plus β-elemene-treated (10 mg·kg–1·d–1)
1 Gy·Fx–1·d–1×5 d 5 19.4±1.00 0.6±0.00
2 Gy·Fx–1·d–1×5 d 5 20.7±1.15* 1.9±0.15*
3 Gy·Fx–1·d–1×5 d 5 23.0±2.13** 4.2±1.13**
4 Gy·Fx–1·d–1×5 d 5 23.9±2.20** 5.1±1.20**
5 Gy·Fx–1·d–1×5 d 5 24.5±2.01** 5.7±1.01**

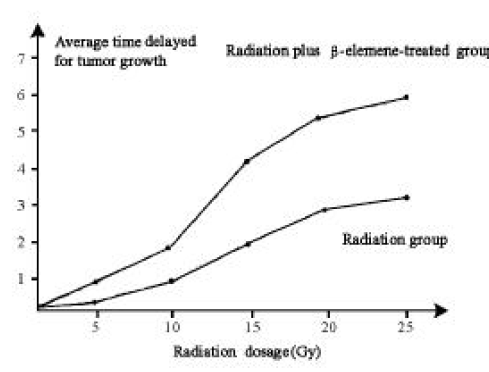

Figure 1

Dose-effect curve of radiation therapy combined with β-elemene infusion via renal artery"

Figure 2

Ultrastructure of VX2 carcinoma transplanted in rabbits in different groups(×5 000)A: Untreated group; B: Radiation group; C: Radiation plus β-elemene-treated group."

[1] 程伟, 乔哲, 石涛 , 等. β-榄香烯对肾癌细胞的体外放射增敏作用[J]. 西安交通大学学报(医学版), 2004,25(2):182-185
doi: 10.3969/j.issn.1671-8259.2004.02.027
[2] Okada M, Kudo S, Miyazak O , et al. Antitumoral efficacy and pharmacokinetic properties of pirarubicin upon hepatic intra-arterial injection in the rabbit Vx2 tumor model[J]. Br J Cancer, 1995,71(3):518-524
[3] 沈瑜 . 肿瘤放射生物学(第1版)[M]. 北京: 中国医药科技出版社,2002,(第1版): 257, 420
[4] 赵健雄, 李雪峰 . 扶正抑瘤颗粒对放疗食管癌患者癌组织中CD44v6与nm23-H1表达的影响[J]. 中西医结合学报, 2004,2(4):262-264
[5] 金乐红, 刘传飞, 曾宇 . 葛根素对实验性大鼠电离辐射损伤的保护效应[J]. 中西医结合学报, 2005,3(1):43-45
[6] 周洪语, 郭建忠, 沈健康 . 榄香烯乳剂抗肿瘤作用基础研究进展[J]. 中国肿瘤临床, 2003,30(10):752-754
doi: 10.3969/j.issn.1000-8179.2003.10.023
[7] 邹丽娟, 孙秀华, 徐晓颖 , 等. 榄香烯乳剂对小鼠移植瘤U14放疗增敏的实验研究[J]. 中华放射医学与防护杂志, 2004,24(3):254-255
doi: 10.3760/cma.j.issn.0254-5098.2004.03.023
[8] 李文秀, 周梁, 金晓杰 . 榄香烯乳剂诱导喉癌细胞凋亡的实验观察[J]. 上海第二医科大学学报, 2002,22(4):306-308
doi: 10.3969/j.issn.1674-8115.2002.04.006
