Journal of Chinese Integrative Medicine ›› 2009, Vol. 7 ›› Issue (10): 947-951.doi: 10.3736/jcim20091007

• Original Experimental Research • Previous Articles     Next Articles

Effects of extract of Bulbus Allii Caespitosi on cardiocyte viability of swines with myocardial reperfusion injury evaluated by 18F-fluorodeoxyglucose positron emission tomography/computed tomography

Jie-mei Zhanga,Yu-he Kea,Jian-jun Haoa, Hao Xiab,Zhi-jian Wuc,Xin Tud,Teng Wange,Bin Wuf,Xu Zhua,ZHU Haoa

  1. a Key Research Institute of the State Administration of Traditional Chinese Medicine, Wuhan Integrated TCM and Western Medicine Hospital, Wuhan 430022, Hubei Province, China
    b Department of Cardiology,People’s Hospital,Wuhan University,Wuhan 430060,Hubei Province, China;
    c PET Center, Union Hospital, Tongji Medical College, Huazhong University of Science and Technology, Wuhan 430003, Hubei Province, China
    d College of Life Science and Technology, Huazhong University of Science and Technology, Wuhan 430074, Hubei province, China
    e Experimental Center, Peopled Hospital, Wuhan University, Wuhan 430060, Hubei Province, China
    f Department of Cardiology, Hubei Provincial Hospital of Traditional Chinese Medicine, Wuhan 430061, Hubei Province, China
  • Received:2009-05-31 Accepted:2009-08-18 Online:2009-10-20 Published:2009-10-15
  • Contact: Jian-jun Hao


To investigate the effects of extract of Bulbus Allii Caespitosi on cardiocyte viability of swines with myocardial reperfusion injury by analyzing the 18F-fluorodeoxyglucose (18F-FDG) position emission tomography (PET) imaging.

Twenty-four swines were randomly divided into sham-operated group, untreated group, trimethazine group and extract of Bulbus Allii Caespitosi group. Myocardial reperfusion injury was induced by plugging the anterior descending coronary artery of swine with sacculus. Bulbus Allii Caespitosi or trimetazidine was given twice daily for 28 days. Then myocardial perfusion was detected with 18F-FDG PET/CT and the radioactivity distribution was evaluated.

Compared with the untreated group, Bulbus Allii Caespitosi and trimetazidine could improve the activity of myocardial cells after myocardial infarction (P<0.01), and there were no significant differences between Bulbus Allii Caespitosi and trimetazidine (P>0.05). Conclusion: Bulbus Allii Caespitosi can improve myocardial metabolism after ischemia and reperfusion in swines.

Key words: Myocardial reperfusion injury, Myocytes, Cardiac, Positron emission tomography, Bulbus Allii Caespitosi, Trimetazidine, Swines

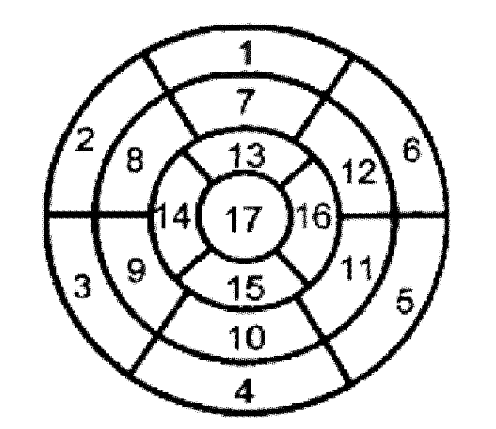

Figure 1

Simulation graph of segments of left ventricle"

Table 1

Number of no vitality myocardial segments and radioactivity distribution ($\bar{x}$±s)"

Group n Number of
myocardial segments
Number of no vitality
myocardial segments
Radioactivity score
Sham-operated 6 102 0 2.67±0.52
Untreated 6 102 55.50±3.62** 0.67±0.51**
Trimetazidine 6 102 27.33±2.50△△ 2.04±0.55△△
Extract of Bulbus Allii Caespitosi 6 102 27.50±3.86△△ 2.33±0.52△△

Figure 2

Imaging of myocardial metabolism in myocardial segments observed by 18F-FDG PET/CT after reperfusion A: Sham-operated group; B: Untreated group; C: Trimetazidine group; D: Extract of Bulbus Allii Caespitosi group."

[1] Lu XZ, Wang LS, Huang J, Zhang XW, Xu SL, Zhu PJ, Yang ZJ, Ma GS, Cao KJ . Establishment of swine model of acute myocardial infarction by coronary occlusion[J]. Zhongguo Dong Mai Ying Hua Za Zhi, 2004,12(2):218-220
doi: 10.3969/j.issn.1007-3949.2004.02.025
卢新政, 王连生, 黄峻, 张晓文, 徐顺霖, 朱品军, 杨志健, 马根山, 曹克将 . 冠状动脉堵闭法建立猪心肌梗死模型[J]. 中国动脉硬化杂志, 2004,12(2):218-220
doi: 10.3969/j.issn.1007-3949.2004.02.025
[2] Bonow RO, Dilsizian V, Cuocolo A, Bacharach SL . Identification of viable myocardium in patients with chronic coronary disease and left ventricular dysfunction. Comparison of thallium scintigraphy with reinjection and PET imaging with 18F-fluorodeoxyglucose[J]. Circulation, 1991,83(1):26-37
doi: 10.1161/01.CIR.83.1.26
[3] Maes A, Nuyts J . Hibernating myocardium and the 'no reflow' phenomenon: a study of absolute regional myocardial perfusion and glucose metabolism using positron emisson tomography in chronic and acute heart disorders[J]. Verh K Acad Belg, 1997,59(3):133-160
[4] Segall G . Assessment of myocardial viability by positron emission tomography[J]. Nucl Med Commun, 2002,23(4):323-330
doi: 10.1097/00006231-200204000-00005 pmid: 11930185
[5] Zhang JM, Leng YQ, Shi ZH, Hao JJ, Bing FH . The experimental research on Bo Xin Tong's effect on acute myocardial ischemical electrocardiogram of the rabbits[J]. Zhongguo Zhong Yi Ji Chu Yi Xue Za Zhi, 2007,13(9):675-678
doi: 10.3969/j.issn.1006-3250.2007.09.018
张介眉, 冷永群, 时昭红, 郝建军, 邴飞虹 . 华夏小葱提取物对兔急性心肌缺血心电图影响的实验研究[J]. 中国中医基础医学杂志, 2007,13(9):675-678
doi: 10.3969/j.issn.1006-3250.2007.09.018
[6] Hu YP, Ma GS, Qi CM, Shen CX, Chen Z, Zhang XL, Liu XJ, Su YM, Li X, Jin QD . Establishment and evaluation of swine model of acute myocardial infarction by interventional technique[J]. Xian Dai Sheng Wu Yi Xue Jin Zhan, 2007,7(5):667-669
doi: 10.3969/j.issn.1673-6273.2007.05.009
胡耀鹏, 马根山, 祁春梅, 沈成兴, 陈忠, 张晓黎, 刘孝钧, 苏亚民, 李璇, 金琴娣 . 介入法建立猪急性心肌梗死再灌注模型及其效果评价[J]. 现代生物医学进展, 2007,7(5):667-669
doi: 10.3969/j.issn.1673-6273.2007.05.009
[7] Baks T, Cademartiri F, Moelker AD , Weustink AC, van Geuns RJ, Mollet NR, Krestin GP, Duncker DJ, de Feyter PJ. Multislice computed tomography and magnetic resonance imaging for the assessment of reperfused acute myocardial infarction[J]. J Am Coll Cardiol, 2006,48(1):144-152
doi: 10.1016/j.jacc.2006.02.059
[8] Han W, Li ZJ, Gai LY, Wang LJ, Du LS . Clinical application of frame counting in reperfusion therapy of acute myocardial infarction[J]. Zhongguo Xun Hua Za Zhi, 2003,189(1):10-12
韩纬, 李志坚, 盖鲁粤, 王立军, 杜洛山 . 计帧法在急性心肌梗死再灌注治疗中的应用[J]. 中国循环杂志, 2003,189(1):10-12
[9] Guan JF, Zhang JM, Hao JJ, Ke YH . Effect of Huaxia Onion-containing serum on apoptosis of rat cardiomyocytes with deficient glucose and hypoxia[J]. Nei Ke Ji Wei Zhong Zheng Za Zhi, 2007,13(4):139-140
doi: 10.3969/j.issn.1007-1024.2007.04.012
关江锋, 张介眉, 郝建军, 柯于鹤 . 华夏小葱含药血清对缺糖缺氧心肌细胞凋亡的影响[J]. 内科急危重症杂志, 2007,13(4):139-140
doi: 10.3969/j.issn.1007-1024.2007.04.012
