Journal of Chinese Integrative Medicine ›› 2012, Vol. 10 ›› Issue (8): 901-910.doi: 10.3736/jcim20120811

Previous Articles     Next Articles

Effects of medicated serum prepared with Chinese herbal medicine Changweiqing on pharmacokinetics of oxaliplatin in colon cancer cells

Yong Zhang, Xiao-wen Sun, Jian-hua Xu(), Hai Lu, Zhong-ze Fan, Jue Sun, Xiao-xiao Zhang#br#

  1. Department of Traditional Chinese Medicine Oncology, Putuo Hospital, Shanghai University of Traditional Chinese Medicine, Shanghai 200062, China
  • Received:2012-01-02 Accepted:2012-01-18 Online:2012-08-20 Published:2018-08-15
  • Contact: Xu Jian-hua

Objective: To investigate the effects of Changweiqing-medicated serum, which was prepared with a compound traditional Chinese herbal medicine, on the reversal of oxaliplatin (L-OHP) resistance and the relationship between the reversal and cellular accumulation of platinum and proteins associated with copper transporter in HCT116/L-OHP cells.

Methods: For clarifying the reversal effect of Changweiqing, methyl thiazolyl tetrazolium was applied to determine the L-OHP resistance of HCT116/L-OHP cell line. The relationship between the cellular accumulation of platinum and the L-OHP resistance in HCT116/L-OHP cells, and the effects of drug-medicated serum on intracellular contents of platinum were detected by atomic absorption spectrophotometry. Western blot method was used to determine the expressions of human copper transporter 1 (hCTR1), ATPase Cu 2+ transporting alpha polypeptide (ATP7A), copper-transporting P-type adenosine triphosphatase (ATP7B), glutathione S-transferase-π (GST-π) and multidrug resistance-associated protein 2 (MRP2).

Results: The inhibitory concentration 50% values of different pairs of L-OHP-sensitive and -resistant cells were 7.2 and 89.00. The resistance index of HCT116/L-OHP cells was 12.36. The reverse index of drug serum on HCT116/L-OHP cells was 2.74. The platinum content in HCT116/L-OHP cells was decreased compared with HCT116 cells in condition of 7.2 μg/mL L-OHP. After treating by 7.5% Changweiqing-medicated serum, the intracellular platinum contents in L-OHP-sensitive and -resistant cells were increased. It was dose-dependent that drug-medicated serum promoted the uptake of L-OHP by HCT116 or HCT116/L-OHP cells and inhibited the discharge. The 7.5% Changweiqing-medicated serum increased the expression of hCTR1 and decreased the expressions of ATP7A and ATP7B in HCT116/L-OHP cells, but had no effects on GST-π and MRP2 protein expressions.

Conclusion: Changweiqing can reverse the L-OHP resistance of HCT116/L-OHP by increasing the cellular platinum-DNA accumulation. Down-regulation of expression of ATP7B and ATP7A, and up-regulation of hCTR1 may cause the increase of intracellular platinum content in HCT116/L-OHP cells.

Key words: colonic neoplasms, drug resistance, neoplasm, compounds (TCD), platinum compounds, carrier proteins, HCT116 cells

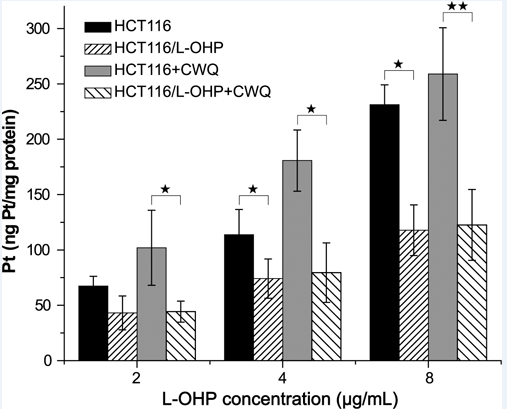

Figure 1

Effects of different treatments on content of Pt in HCT116 and HCT116/L-OHP cellsData are represented as $\bar{x}$±s, n=5. ★P<0.05, ★★P<0.01. CWQ: Changweiqing; L-OHP: oxaliplatin; Pt: platinum."

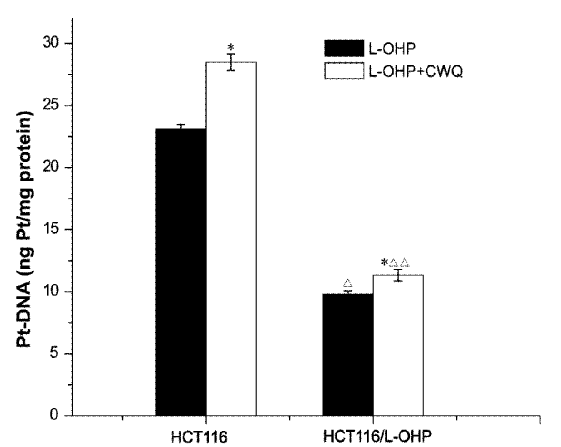

Figure 2

Effects of Changweiqing-medicated serum on Pt-DNA content in HCT116 and HCT116/L-OHP cellsData are represented as $\bar{x}$±s, n=5. *P<0.05, vs single-used oxaliplatin; △P<0.05, △△P<0.01, vs HCT116 under the same treatment. CWQ: Changweiqing; L-OHP: oxaliplatin; Pt: platinum."

Table 1

Effects of Changweiqing-medicated serum on uptake of L-OHP after 60 and 120 min ($\bar{x}$±s)"

Group n Uptake of L-OHP (ng Pt/mg prot)
60 min 120 min
HCT116 cells
L-OHP 5 1 742.20±37.32 2 463.87±66.62□■■
1.875% CWQ plus L-OHP 5 2 048.69±29.06**□ 2 681.46±64.85*□■■
3.75% CWQ plus L-OHP 5 2 361.88±92.18**△□ 2 799.18±93.25**□■■
7.5% CWQ plus L-OHP 5 2 600.82±57.44**△▲□ 3 096.01±132.08**△▲□■
HCT116/L-OHP cells
L-OHP 5 1 263.59±15.53 1 673.64±19.62
1.875% CWQ plus L-OHP 5 1 318.87±11.86* 1 879.47±36.71*■■
3.75% CWQ plus L-OHP 5 1 452.45±28.15* 1 981.50±59.77**■■
7.5% CWQ plus L-OHP 5 1 667.41±37.72**△▲ 2 193.96±20.48**△▲■■

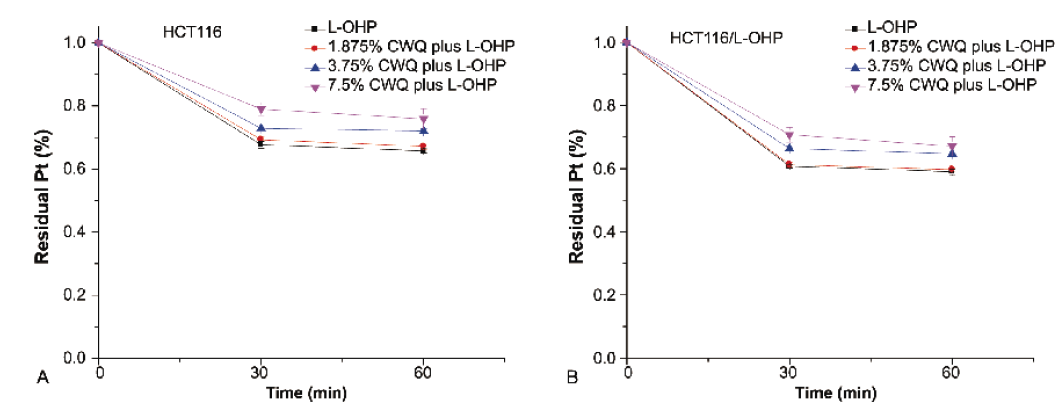

Figure 3

Effects of Changweiqing-medicated serum on efflux of L-OHP in colon cancer cellsA: HCT116 cells Pt efflux at 30 and 60 min; B: HCT116/L-OHP cells Pt efflux at 30 and 60 min. CWQ: Changweiqing; L-OHP: oxaliplatin; Pt: platinum."

Table 2

Effects of Changweiqing-medicated serum on efflux of L-OHP after 30 and 60 min ($\bar{x}$±s)"

Group n Residual platinum (%)
30 min 60 min
L-OHP 5 0.677±0.010 0.658±0.007
1.875% CWQ plus L-OHP 5 0.693±0.011* 0.672±0.010*
3.75% CWQ plus L-OHP 5 0.729±0.003* 0.721±0.007*△
7.5% CWQ plus L-OHP 5 0.790±0.021**△▲ 0.759±0.032**△▲
L-OHP 5 0.608±0.006 0.590±0.009
1.875% CWQ plus L-OHP 5 0.613±0.008 0.597±0.005
3.75% CWQ plus L-OHP 5 0.664±0.003* 0.648±0.008*△
7.5% CWQ plus L-OHP 5 0.708±0.023*△▲ 0.671±0.030*△▲

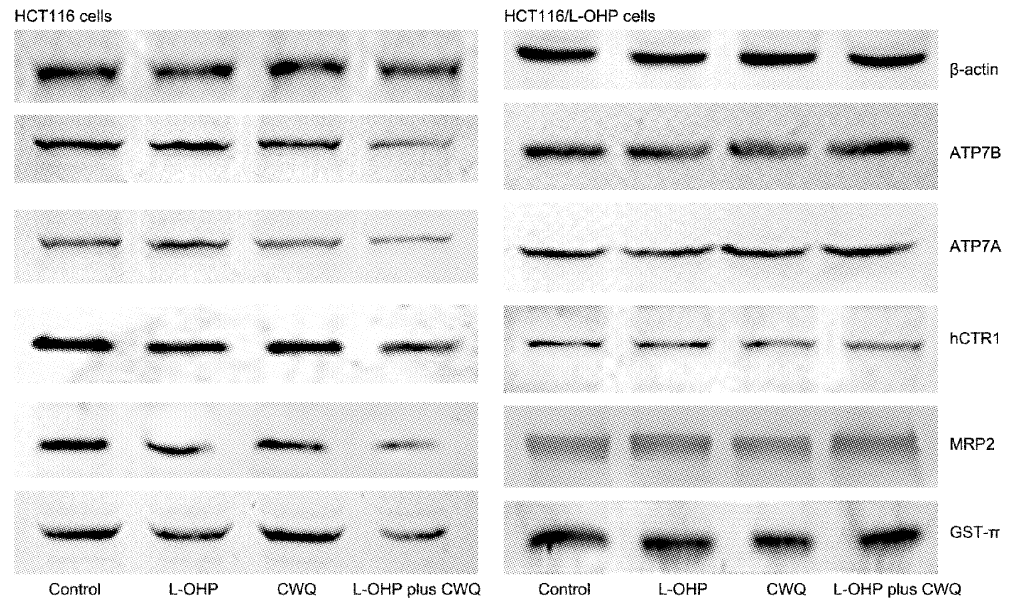

Figure 4

Bands of copper-transporting protein and related protein expressions in HCT116 and HCT116/L-OHP cells tested by Western blottingExpressions of hCTR1, ATP7A, ATP7B, GST-π and MRP2 proteins observed by Western blotting. CWQ: Changweiqing; L-OHP: oxaliplatin; hCTR1: human copper transporter 1; ATP7A: ATPase Cu2+ transporting alpha polypeptide; ATP7B: copper-transporting P-type adenosine triphosphatase; GST-π: glutathione S-transferase-π; MRP2: multidrug resistance-associated protein 2. "

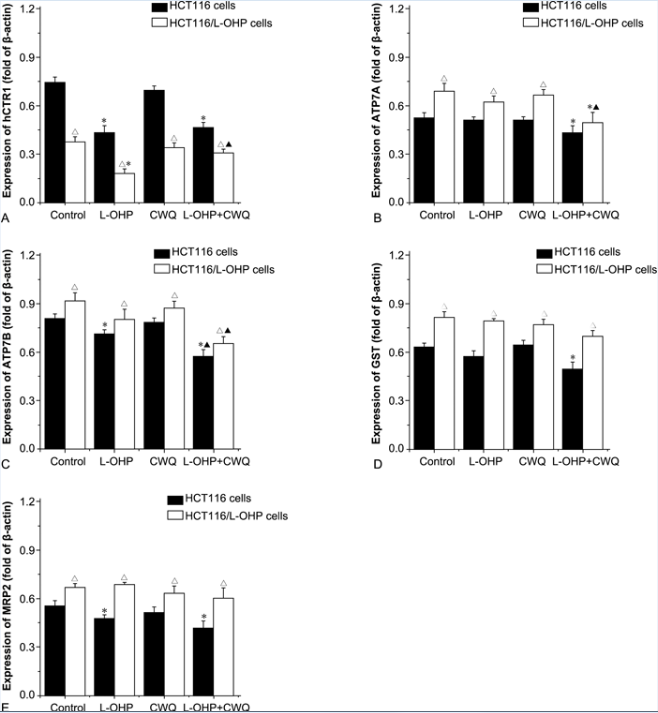

Figure 5

Copper-transporting protein and related protein expressions in HCT116 and HCT116/L-OHP cellsQuantity results of protein expressions of hCTR1 (A), ATP7A (B), ATP7B (C), GST-π (D) and MRP2 (E). *P<0.05, vs control group; △P<0.05, vs HCT116 cells; ▲P<0.05, vs single-used oxaliplatin. CWQ: Changweiqing; L-OHP: oxaliplatin; hCTR1: human copper transporter 1; ATP7A: ATPase Cu2+ transporting alpha polypeptide; ATP7B: copper-transporting P-type adenosine triphosphatase; GST-π: glutathione S-transferase-π; MRP2: multidrug resistance-associated protein 2."

[1] Du XL, Fang S, Vernon SW, El-Serag H, Shih YT, Davila J, Rasmus ML . Racial disparities and socioeconomic status in association with survival in a large population-based cohort of elderly patients with colon cancer[J]. Cancer, 2007,110(3):660-669
doi: 10.1002/(ISSN)1097-0142
[2] Wan DS . Epidemiological trend and control strategy of colorectal cancer in China[J]. Zhonghua Zhong Liu Za Zhi, 2011,33(7):481-483
万德森 . 我国结直肠癌的流行趋势及其对策[J]. 中华肿瘤杂志, 2011,33(7):481-483
[3] Kuebler JP, Wieand HS O’Connell MJ, Smith RE, Colangelo LH, Yothers G, Petrelli NJ, Findlay MP, Seay TE, Atkins JN, Zapas JL, Goodwin JW, Fehrenbacher L, Ramanathan RK, Conley BA, Flynn PJ, Soori G, Colman LK, Levine EA, Lanier KS, Wolmark N .Oxaliplatin combined with weekly bolus fluorouracil and leucovorin as surgical adjuvant chemotherapy for stage Ⅱ and Ⅲ colon cancer: results from NSABP C-07[J]. J Clin Oncol, 2007,25(16):2198-2204
doi: 10.1200/JCO.2006.08.2974
[4] Tang H, Liu YJ, Liu M, Li X . Establishment and gene analysis of an oxaliplatin-resistant colon cancer cell line THC8307/L-OHP[J]. Anticancer Drugs, 2007,18(6):633-639
doi: 10.1097/CAD.0b013e3280200428
[5] Katano K, Kondo A, Safaei R, Holzer A, Samimi G, Mishima M, Kuo YM, Rochdi M, Howell SB . Acquisition of resistance to cisplatin is accompanied by changes in the cellular pharmacology of copper[J]. Cancer Res, 2002,62(22):6559-6565
[6] Holzer AK, Manorek GH, Howell SB . Contribution of the major copper influx transporter CTR1 to the cellular accumulation of cisplatin, carboplatin, and oxaliplatin[J]. Mol Pharmacol, 2006,70(4):1390-1394
doi: 10.1124/mol.106.022624
[7] Kalayda GV, Wagner CH, Buss I, Reedijk J, Jaehde U . Altered localisation of the copper efflux transporters ATP7A and ATP7B associated with cisplatin resistance in human ovarian carcinoma cells[J]. BMC Cancer, 2008,8(19):175
doi: 10.1186/1471-2407-8-175
[8] Deng WL, Xu JH, Li CL, Sun J, Zhang Y, Fan ZZ . Reversal of multidrug resistance by Changweiqing on vincristine-resistant human colorectal cancer cell line HCT8/V[J]. Zhong Liu, 2008,28(9):755-75
doi: 10.3781/j.issn.1000-7431.2008.09.009
邓皖利, 许建华, 李长龙, 孙珏, 张勇, 范忠泽 . 肠胃清对人结直肠癌耐长春新碱细胞株HCT8/V的逆转作用[J]. 肿瘤, 2008,28(9):755-757
doi: 10.3781/j.issn.1000-7431.2008.09.009
[9] Zhang Y, Xu JH, Fan ZZ, Sun J, Zhu YW, Liang F, Han JH, Li CH, Lu H, Sun XW, Guo G . Effect of Jianpi Jiedu Fang on platinum resistance associated copper-transporting protein(ATP7A/ATP7B) in the orthotopic transplantation nude mouse mode of human colon carcinoma[J]. Liaoning Zhong Yi Za Zhi, 2010,37(5):942-946
张勇, 许建华, 范忠泽, 孙珏, 朱晏伟, 梁芳, 韩建宏, 李朝衡, 陆海, 孙晓文, 郭刚 . 健脾解毒方对人结肠癌裸鼠原位移植瘤铂类耐药相关蛋白ATP7A、ATP7B表达的影响[J]. 辽宁中医杂志, 2010,37(5):942-946
[10] Lu H, Sun J, Xu JH, Fan ZZ . Establishment of an oxaliplatin-resistant human colon carcinoma HCT116/L-OHP cell and preliminary exploration for the mechanism of resistance[J]. Zhong Liu, 2011,31(8):675-681
doi: 10.3781/j.issn.1000-7431.2011.08.001
陆海, 孙珏, 许建华, 范忠泽 . 人结肠癌奥沙利铂耐药细胞HCT116/L-OHP的建立及其耐药机制初探[J]. 肿瘤, 2011,31(8):675-681
doi: 10.3781/j.issn.1000-7431.2011.08.001
[11] Xu SY, Bian RL, Chen X. Methodology of pharmacological experiments[M]. Beijing: People’s Medical Publishing House, 1982, 202-204
徐叔云, 卞如濂, 陈修 . 药理实验方法学[M]. 北京: 人民卫生出版社, 1982, 202-204
[12] Lu H, Sun J, Xu JH, Fan ZZ . Research on the DNA damage and repair of reversibility of Changweiqing on drug resistance in oxaliplatin-resistant human colon carcinoma cell line[J]. Zhongguo Yi Yao Dao Kan, 2011,13(8):1384-1387
陆海, 孙珏, 许建华, 范忠泽 . 肠胃清逆转耐草酸铂结肠癌细胞的DNA损伤修复实验研究[J]. 中国医药导刊, 2011,13(8):1384-1387
[13] Bidard FC, Tournigand C, André T, Mabro M, Figer A, Cervantes A, Lledo G, Bengrine-Lefevre L, Maindrault-Goebel F Louvet C, de Gramont A .Efficacy of FOLFIRI-3(irinotecan D1, D3 combined with LV5-FU) or other irinotecan-based regimens in oxaliplatin-pretreated metastatic colorectal cancer in the GERCOR OPTIMOX1 study[J]. Ann Oncol, 2009,20(6):1042-1047
doi: 10.1093/annonc/mdn730
[14] Ekblad L, Kjellstrom J, Johnsson A . Reduced drug accumulation is more important in acquired resistance against oxaliplatin than against cisplatin in isogenic colon cancer cells[J]. Anticancer Drugs, 2010,21(5):523-531
doi: 10.1097/CAD.0b013e328337b867
Ekblad L, Kjellstrоm J, Johnsson A . Reduced drug accumulation is more important in acquired resistance against oxaliplatin than against cisplatin in isogenic colon cancer cells[J]. Anticancer Drugs, 2010,21(5):523-531
[15] Howell SB, Safaei R, Larson CA, Sailor MJ . Copper transporters and the cellular pharmacology of the platinum-containing cancer drugs[J]. Mol Pharmacol, 2010,77(6):887-894
doi: 10.1124/mol.109.063172 pmid: 3222220159940
[16] Rabik CA, Maryon EB, Kasza K, Shafer JT, Bartnik CM, Dolan ME . Role of copper transporters in resistance to platinating agents[J]. Cancer Chemother Pharmacol, 2009,64(1):133-142
doi: 10.1007/s00280-008-0860-1 pmid: 3222218998134
[17] Leung EL, Fraser M, Fiscus RR, Tsang BK . Cisplatin alters nitric oxide synthase levels in human ovarian cancer cells: involvement in p53 regulation and cisplatin resistance[J]. Br J Cancer, 2008,98(11):1803-1809
doi: 10.1038/sj.bjc.6604375
[18] Holzer AK, Samimi G, Katano K, Naerdemann W, Lin X, Safaei R, Howell SB . The copper influx transporter human copper transport protein 1 regulates the uptake of cisplatin in human ovarian carcinoma cells[J]. Mol Pharmacol, 2004,66(4):817-823
doi: 10.1124/mol.104.001198
[19] Samimi G, Safaei R, Katano K, Holzer AK, Rochdi M, Tomioka M, Goodman M, Howell SB . Increased expression of the copper efflux transporter ATP7A mediates resistance to cisplatin, carboplatin, and oxaliplatin in ovarian cancer cells[J]. Clin Cancer Res, 2004,10(14):4661-4669
doi: 10.1158/1078-0432.CCR-04-0137
[20] Cao Y, Zhang D, Zheng GJ, Yang Y, Zhang J . Study on drug resistance reversion and mechanism of Bushen Huayu Jiedu Formula in lung cancer cells of drug resistance[J]. Shandong Zhong Yi Za Zhi, 2004,23(2):100-104
曹勇, 张丹, 郑广娟, 杨勇, 张静 . 补肾化瘀解毒方药对肺癌耐药细胞的耐药逆转及机制研究[J]. 山东中医杂志, 2004,23(2):100-104
[21] Larson CA, Blair BG, Safaei R, Howell SB . The role of the mammalian copper transporter 1 in the cellular accumulation of platinum-based drugs[J]. Mol Pharmacol, 2009,75(2):324-330
doi: 10.1124/mol.108.052381
